Sony HCD-EC55 - 8 Exploded Views; Overall Section

57
HCD-EC55/EC77/GX99
6 1-787-319-12 FAN, DC
(EC55/EC77: AEP, RU, E2, E3, E51, MX, AR, AUS)
6 1-787-344-11 FAN, DC (EC77: US, CND/GX99)
7 2-890-830-01 PANEL (R), SIDE (US, CND)
7 2-890-830-11 PANEL (R), SIDE (EXCEPT US, CND)
#1 7-685-247-14 SCREW +KTP 3X10 TYPE2 NON-SLIT
#2 7-685-647-79 SCREW +BVTP 3X10 TYPE2 N-S
SECTION 8
EXPLODED VIEWS
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Items marked “*” are not stocked since they
are seldom required for routine service.
Some delay should be anticipated when
ordering these items.
• The mechanical parts with no reference
number in the exploded views are not supplied.
• Abbreviation
AR : Argentine model
AUS : Australian model
CND : Canadian model
E2 : 120V AC area in E model
E3 : 240V AC area in E model
E51 : Chilean and Peruvian model
KR : Korean model
MX : Mexican model
RU : Russian model
SP : Singapore model
Ref. No. Part No. Description Remark
13-254-143-11 SCREW (B3), (+) BV TAPPING
22-890-827-01 DOOR (CD)
32-890-831-01 PANEL (L), SIDE (US, CND)
32-890-831-11 PANEL (L), SIDE (EXCEPT US, CND)
42-890-829-01 PANEL (TOP) (US, CND)
53-363-099-32 SCREW (CASE 3 TP2)

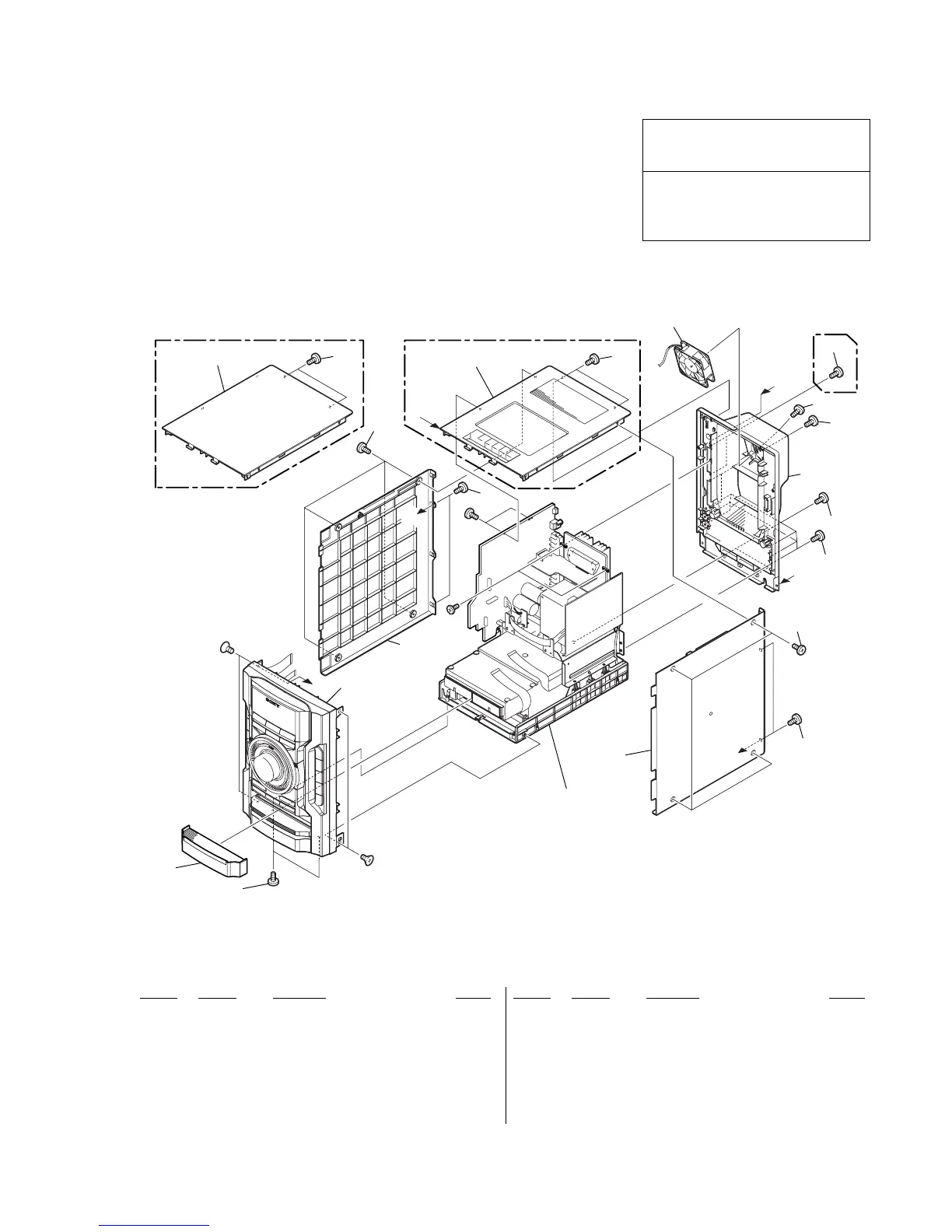

8-1. OVERALL SECTION
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque 0
sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant le
numéro spécifié.
Ref. No. Part No. Description Remark
A
A
B
B
C
C
1
2
5
1
3
114
1
1
1
6
5
1
1
1
top section
front panel
section
chassis section
#1
#1
#2
#2
7
(US, CND)
(EC77/GX99)
(EXCEPT US, CND)
not
supplied
Ver. 1.1
