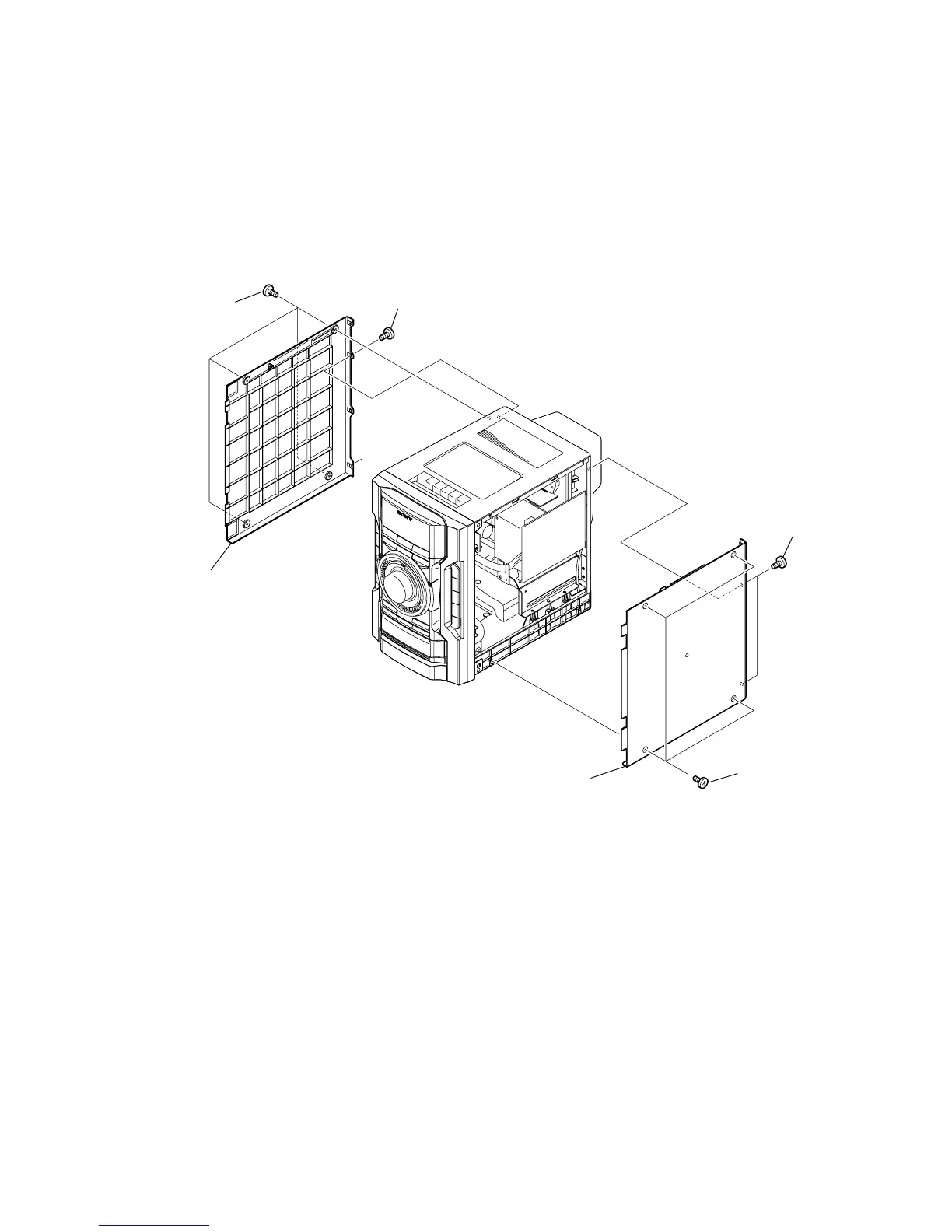

3-2. SIDE PANEL (R), SIDE PANEL (L)
3
side panel (R)
6
side panel (L)
5
two screws
(+BVTP3
×
10
)
2
two screws
(+BVTP3
×
10
)
1
four screws
(TP3
×
12
)
4
four screws
(TP3
×
12
)
Note: Follow the disassembly procedure in the numerical order given.
