Sony HCD-EC55 - Belt (DLM3 A); Chassis

18
HCD-EC55/EC77/GX99

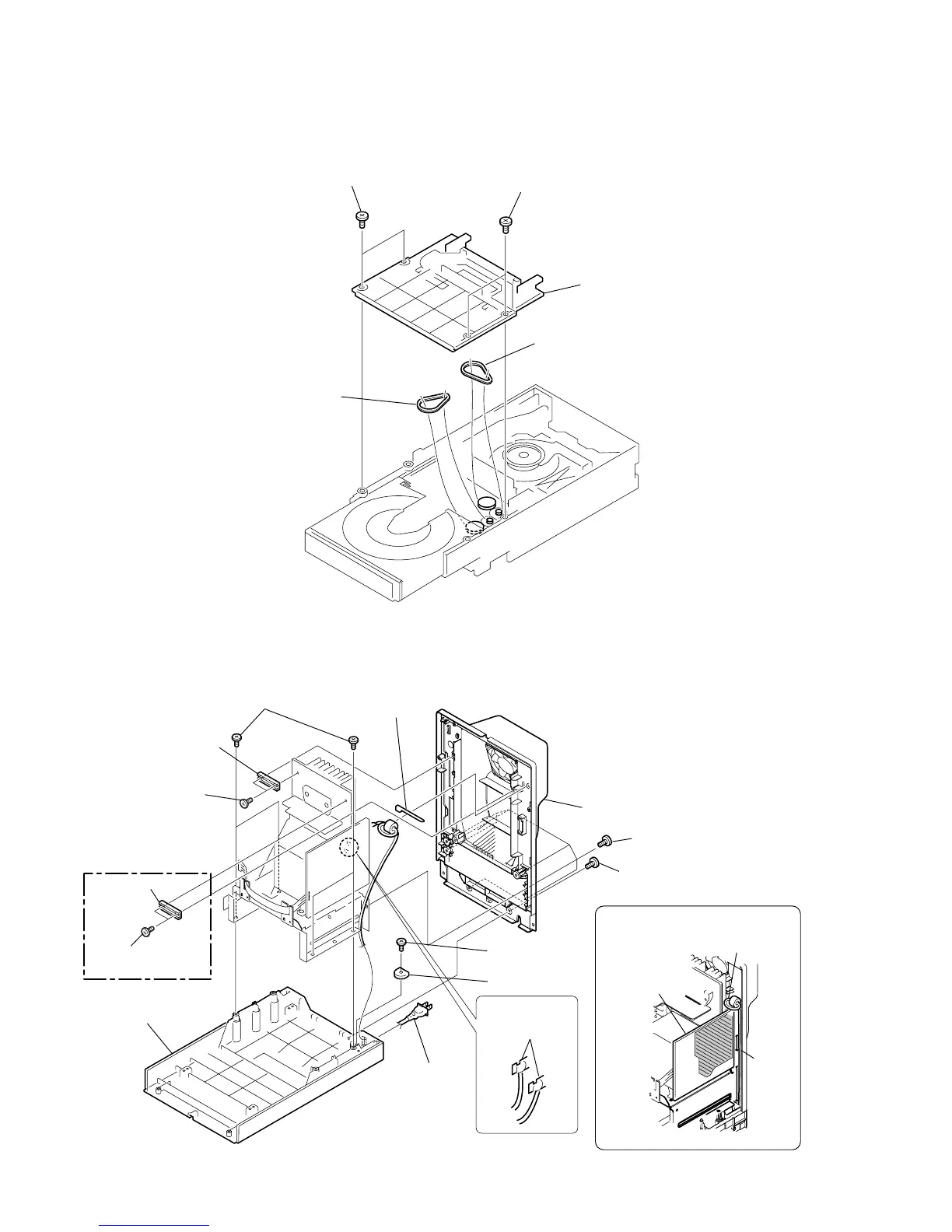

3-14. BELT (DLM3A)
2 two screws
3 cover
4 belt (DLM3A)
5 belt (DLM3A)
1 two screws
3-15. CHASSIS
2 two screws
(+BVTP3 × 10 )
3 six screws
(+BVTP3 × 10 )
8 back panel
1 clamp
0 four screws
(+BVTP4 × 12 )
9 Remove the
solderings.
qa chassis
qd HOLD board
qs screw
(+BVTP3 × 10 )
4 two screws
(+BVTP3 × 10 )
qf POWER cord
PT board
power cord
groove
Route the harnesses as shown below.
6 two screws
(+BVTP3 × 10 )
5 heatsink support
7 heatsink support
(EC77/GX99)
