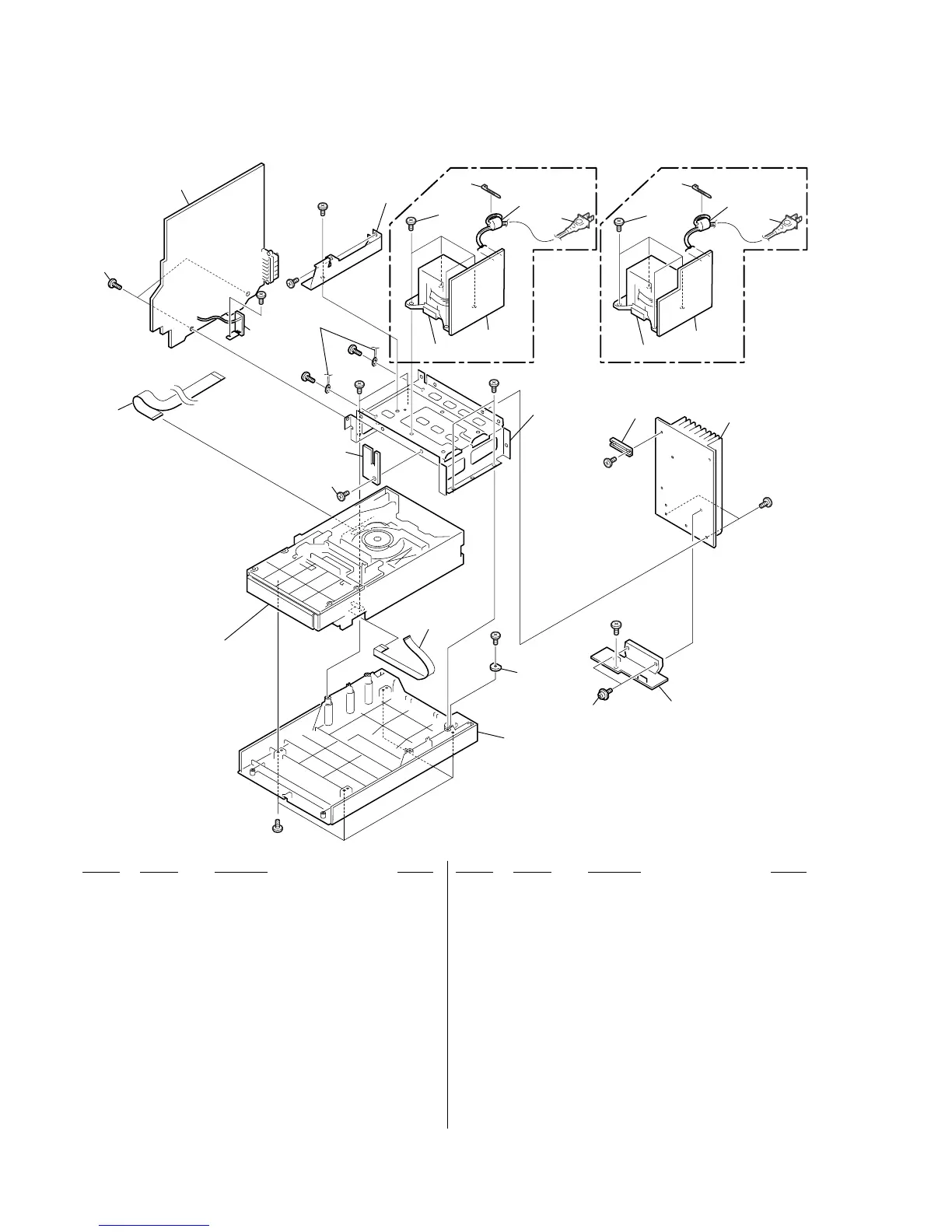

8-4. CHASSIS SECTION (EC55)
151 1-832-838-21 CABLE, FLEXIBLE FLAT (13 CORE)
152 3-254-143-11 SCREW (B3), (+) BV TAPPING
153 1-834-181-21 CABLE, FLEXIBLE FLAT (21 CORE)
154 A-1218-693-A MAIN BOARD, COMPLETE (EC55: US, CND)
154 A-1218-725-A MAIN BOARD, COMPLETE (EC55: AEP, UK, RU)
154 A-1218-774-A MAIN BOARD, COMPLETE (EC55: SP, AUS)
154 A-1218-814-A MAIN BOARD, COMPLETE
(EC55: E2, E51, MX, AR)
154 A-1258-298-A MAIN BOARD, COMPLETE (EC55: KR)
155 4-900-386-01 SCREW
156 3-701-748-00 CLAMP
157 1-500-868-11 CORE, FERRITE
0 158 1-769-079-51 CORD, POWER (KR)
0 158 1-775-790-81 CORD, POWER (AUS)
0 158 1-790-757-52 CORD, POWER (US, CND)
0 158 1-830-891-11 CORD, POWER (UK)
0 158 1-831-370-11 CORD, POWER (AEP, RU, E2, E51, SP)
0 158 1-832-377-11 CORD, POWER (MX)
0 158 1-834-172-11 CORD, POWER (AR)
159 3-905-609-31 SCREW (TRANSISTOR)
0 TP003 1-443-911-11 TRANSFORMER, POWER
(E2, E51, KR, AR, SP, AUS)
0 TP003 1-443-995-11 TRANSFORMER, POWER (MX)
0 TP003 1-445-115-11 TRANSFORMER, POWER (US, CND)
0 TP003 1-445-117-11 TRANSFORMER, POWER (AEP, UK, RU)
#2 7-685-647-79 SCREW +BVTP 3X10 TYPE2 N-S
#3 7-685-661-14 SCREW +BVTP 4X12 TYPE2 IT-3
#4 7-685-645-79 SCREW +BVTP 3X6 TYPE2 IT-3
#2
#2
#2
151
152
153
154
155
TP003
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
CD mechanism deck section
