Sony HCD-EC55 - CD Mechanism Deck Section

62
HCD-EC55/EC77/GX99

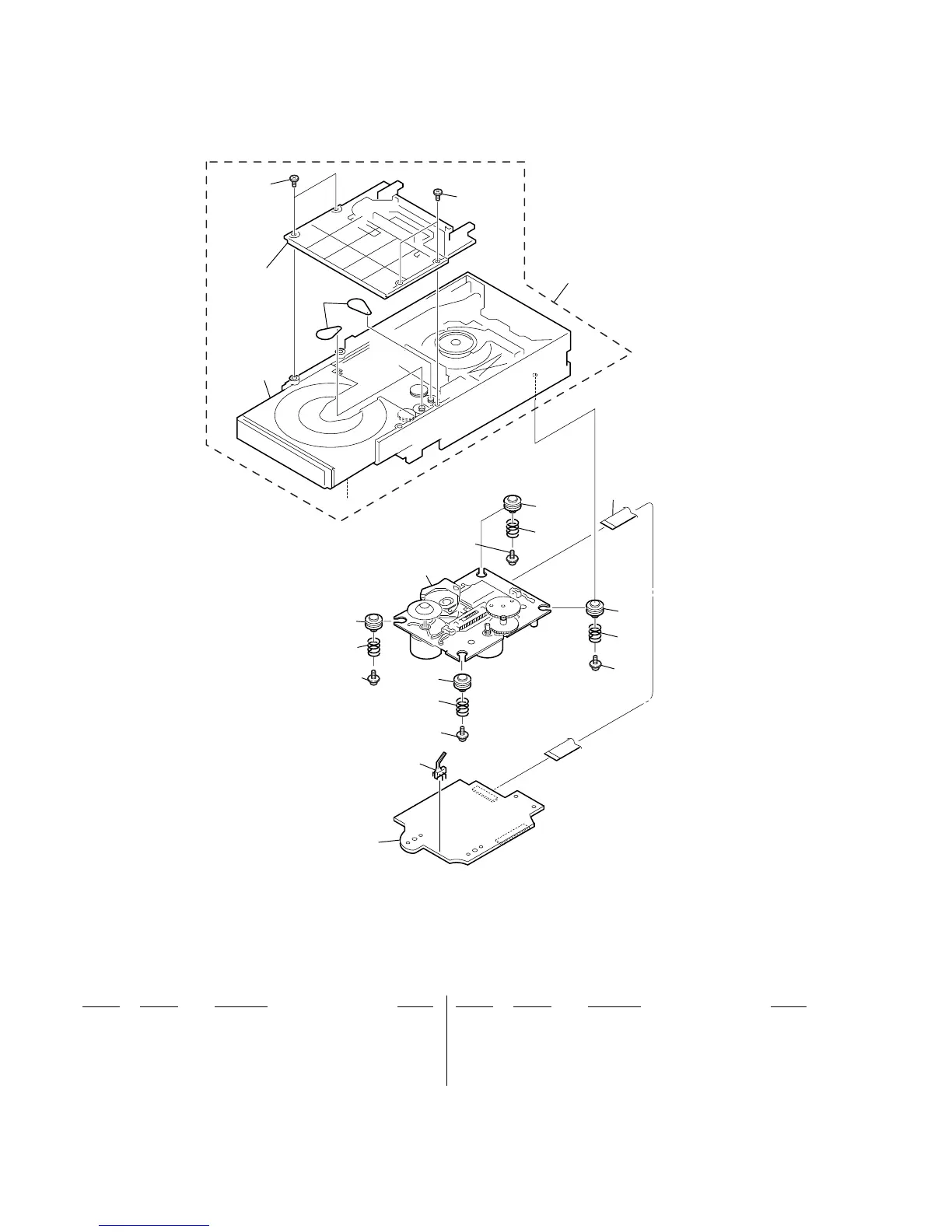

8-6. CD MECHANISM DECK SECTION
506
501
504
503
S201
505
504
503
502
502
504
503
502
502
504
503
508
507
not
supplied
not
supplied
not
supplied
not
supplied
501 A-1217-914-A BD90 BOARD, COMPLETE
502 4-985-672-01 SCREW (+PTPWHM2.6), FLOATING
503 4-227-045-31 SPRING (INSULATOR), COIL
504 4-227-549-31 INSULATOR
0 505 A-4735-357-A BASE ASSY, OP (KSM-213)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
506 1-832-404-21 CABLE, FLEXIBLE FLAT (16 CORE)
507 1-797-193-12 MECHANICAL, CD (DLM3A23-11)
508 2-632-062-11 BELT (DLM3A)
S201 1-771-853-11 SWITCH, DETECTION (LIMIT)
Ver. 1.2
