HCD-EC69i/EC79i/EC99i
14

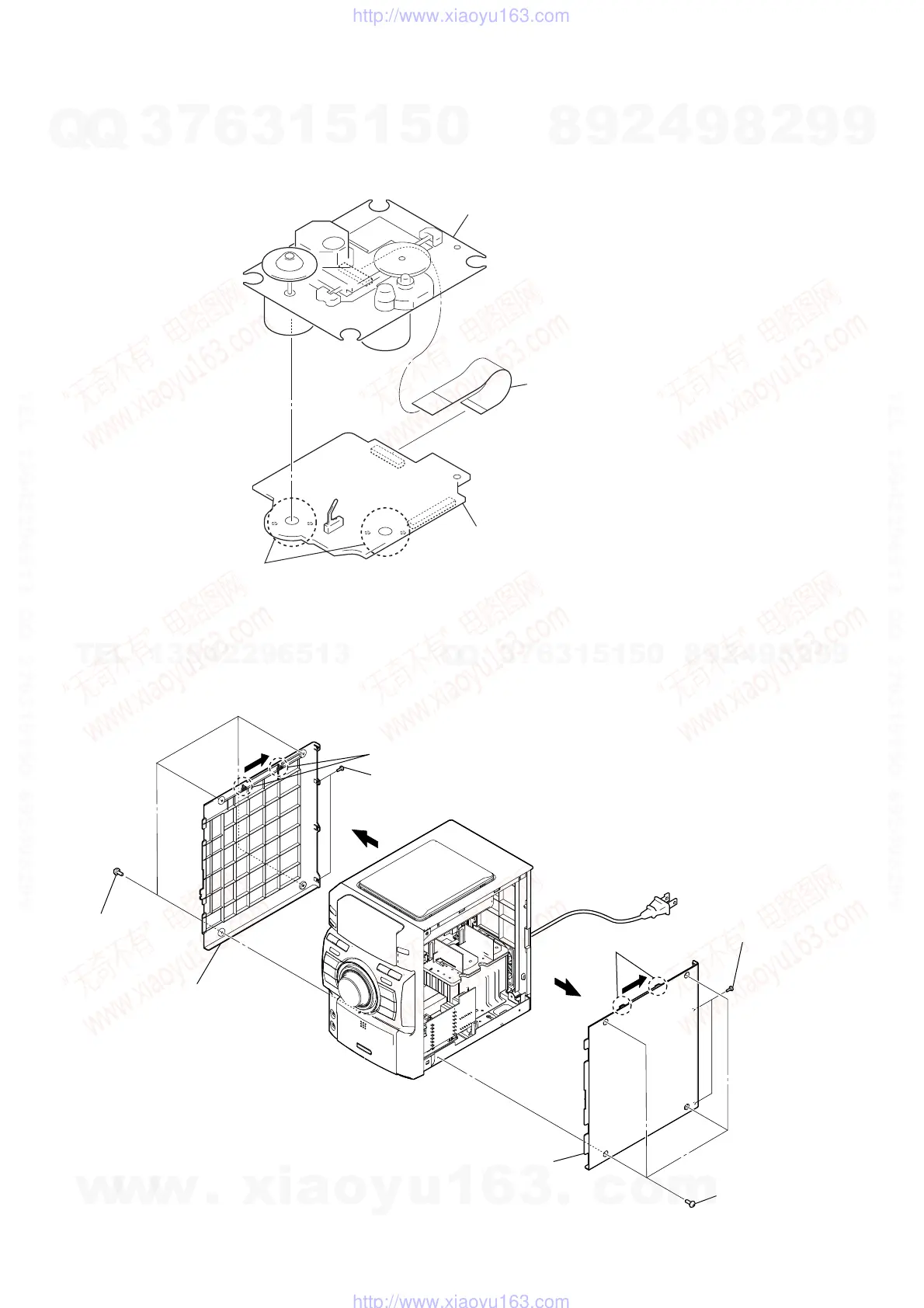

3-10. SIDE PANEL (L)/(R)
(HCD-EC79i: UK, Australian/EC99i)
3-9. OPTICAL PICK-UP BLOCK (KSM-213CDP)
(HCD-EC69i/EC79i: US, Canadian)
wire (flat type) (16 core)
(optical pick-up, CD board: CN201)
CD board
optical pick-up block
(KSM-213CDP)
Remove the four solders.
4
4
2
two screws
(BVTP3
u
10)
1
four screws
(case3 TP2)
5
side panel (L)
5
side panel (R)
1
four screws
(case3 TP2)
2
two screws
(BVTP3
u
10)
3
two claws
3
two claws
