49
HCD-EC69i/EC79i/EC99i

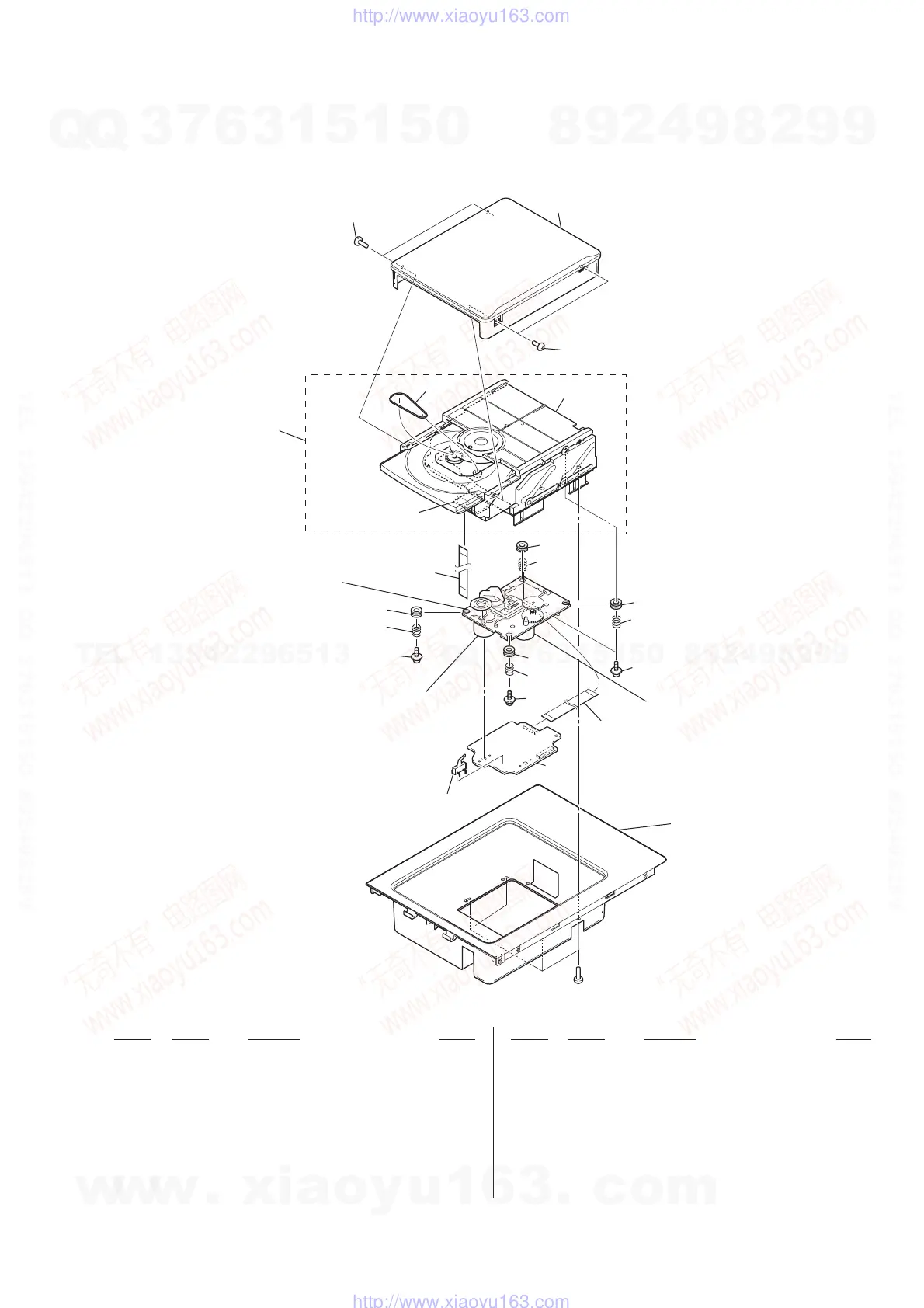

7-4. TOP PANEL SECTION
(HCD-EC79i: UK, AUS/EC99i)
157
(including sled motor (M402),
spidle motor (M401))
included in
157
(sled motor (M402))
included in
157
(spindle motor (M401))
158
159
158
159
158
159
158
159
160
160
162
161
not supplied
not supplied
(LOADING board)
S201
151
155
156
154
153
152
151
160
#1
151 3-253-143-01 SCREW (B2.6), (+) P TAPPING
152 4-120-662-01 LID, TOP
153 4-120-661-01 PANEL, TOP (LOADING) (EC99i: US, CND)
153 4-120-661-11 PANEL, TOP (LOADING) (EC79i: UK, AUS/EC99i:
UK, AUS)
154 1-836-761-21 CABLE, FLEXIBLE FLAT (5 CORE) (EC79i: UK,
AUS/EC99i)
155 A-1579-622-A CDM76A ASSY
156 4-120-079-01 BELT (CDM76)
0 157 A-4735-357-A BASE ASSY, OP (KSM-213D)
158 4-227-549-11 INSULATOR
159 4-227-045-31 SPRING (INSULATOR), COIL
160 4-985-672-01 SCREW (+PTPWHM2.6), FLOATING
161 1-832-404-21 CABLE, FLEXIBLE FLAT (16 CORE)
162 A-1217-914-A CD BOARD, COMPLETE
S201 1-771-853-11 SWITCH, DETECTION (LIMIT)
#1 7-685-647-79 SCREW +BVTP 3X10 TYPE2 N-S
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Ver. 1.1
