52
HCD-EC69i/EC79i/EC99i

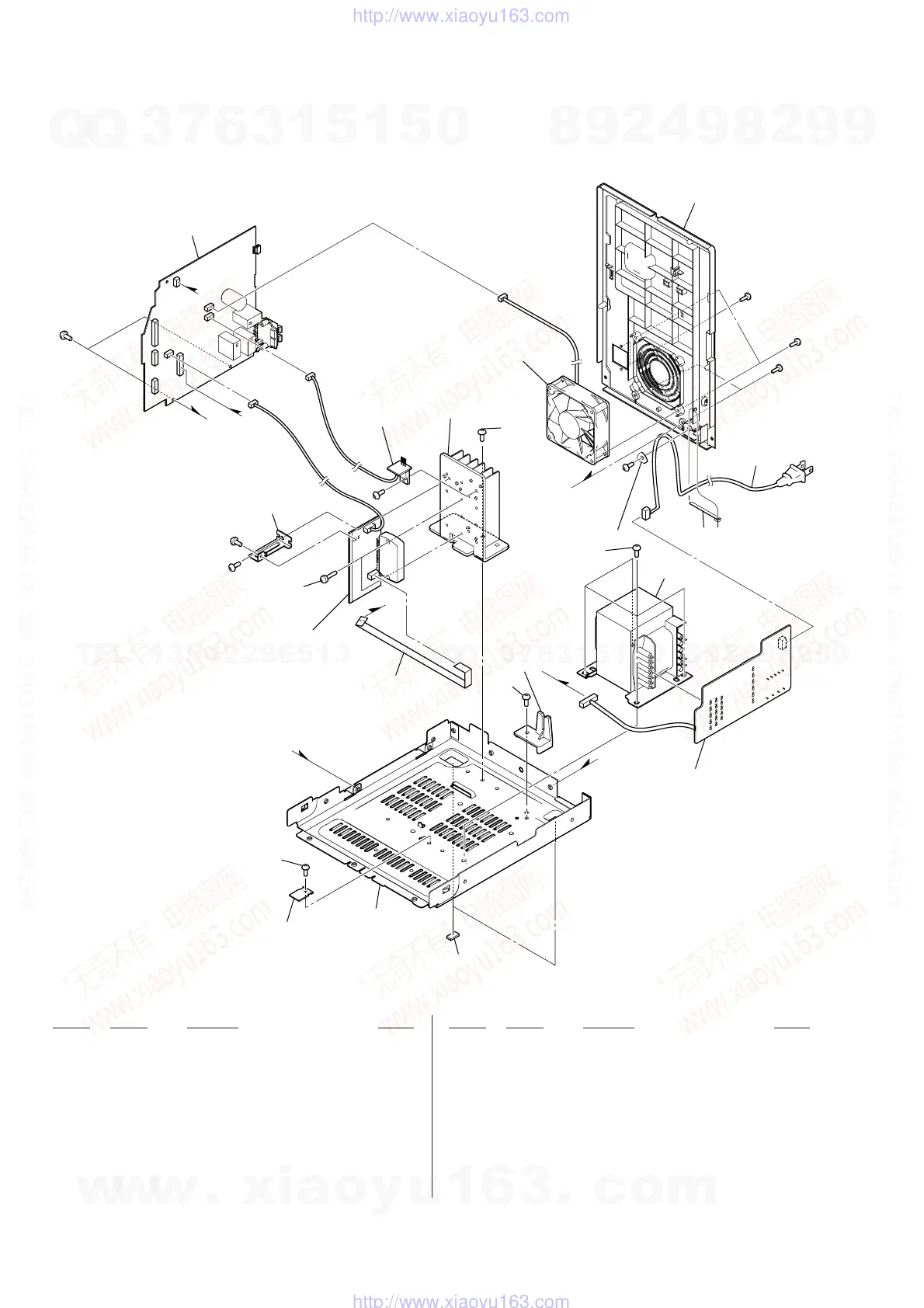

7-7. MAIN BOARD, CHASSIS SECTION
(HCD-EC69i)
not
supplied
not supplied
not supplied
#1
#1
#1
PT004
not supplied
(PT-SINGLE board)
not supplied
(2CH-4CH board)
not supplied
(REG board)
306
309
302
308
302
M601
307
not supplied
#1
#1
#1
#1
303
305
304
not supplied
(CABLE HOLD board)
302
not supplied
(AC HOLD board)
#1
301
%
&
&
#
%
"
#
"
301 A-1599-114-A MAIN BOARD, COMPLETE (EC69i: US, CND)
301 A-1599-131-A MAIN BOARD, COMPLETE (EC69i: UK, AUS)
302 3-077-331-01 +BV3 (3-CR)
303 4-120-681-02 PANEL, BACK (EC69i: US)
303 4-120-681-12 PANEL, BACK (EC69i: UK, AUS)
303 4-120-681-22 PANEL, BACK (EC69i: CND)
0 304 1-834-965-22 CORD, POWER (US, CND)
0 304 1-834-966-41 POWER-SUPPLY CORD (UK)
0 304 1-834-967-21 CORD, POWER (AUS)
305 3-701-748-00 CLAMP
306 1-831-744-21 CABLE, FLEXIBLE FLAT (5 CORE)
307 4-900-386-01 SCREW
308 4-225-252-01 CUSHION (FOOT)
309 3-905-609-31 SCREW (TRANSISTOR)
M601 1-787-319-12 FAN, DC (EC69i)
0 PT004 1-445-562-11 TRANSFORMER, POWER (EC69i: UK)
0 PT004 1-445-564-11 TRANSFORMER, POWER (EC69i: US, CND)
0 PT004 1-445-574-11 TRANSFORMER, POWER (EC69i: AUS)
#1 7-685-647-79 SCREW +BVTP 3X10 TYPE2 N-S
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
