HCD-EC69i/EC79i/EC99i

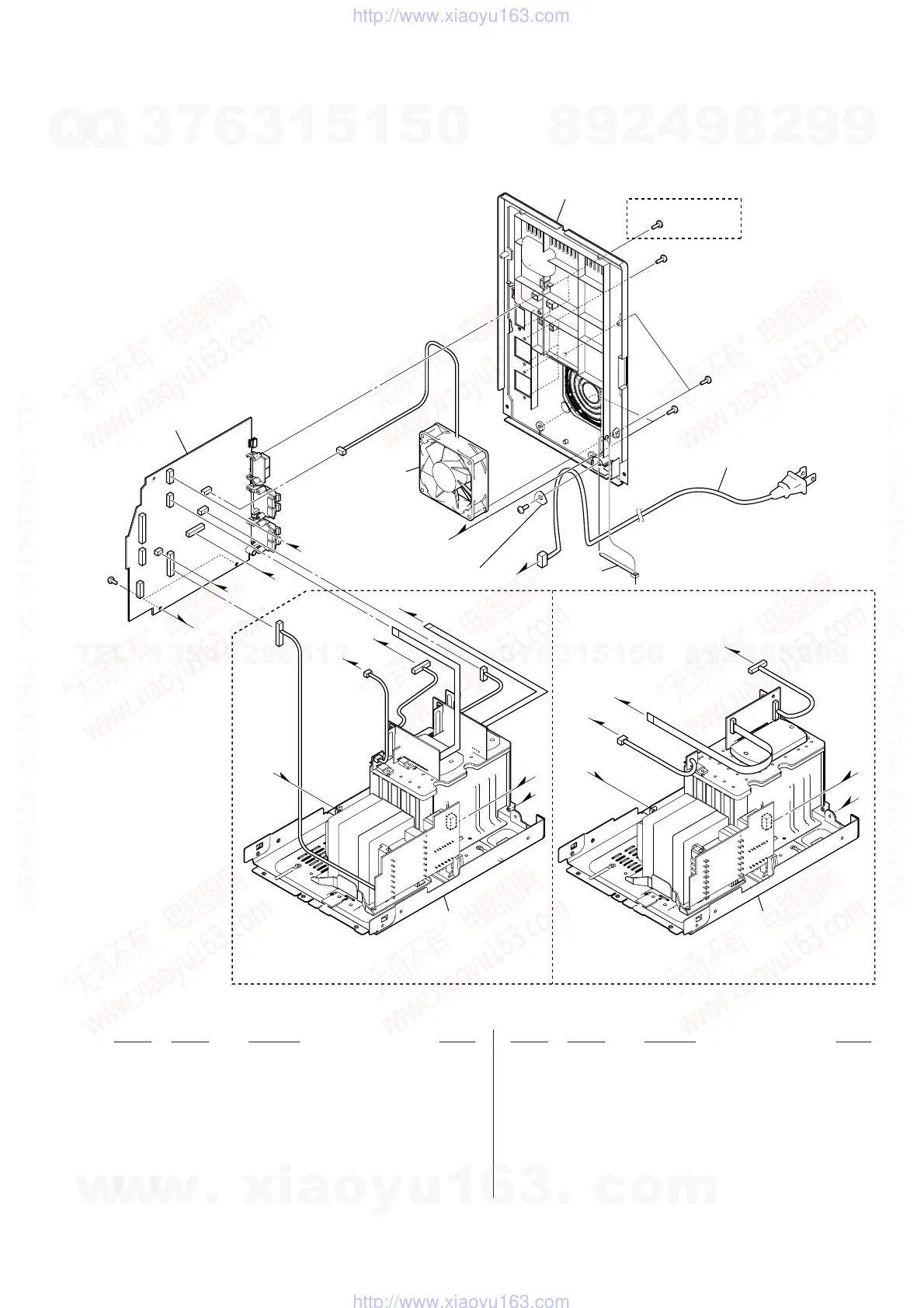

7-8. MAIN BOARD SECTION
(HCD-EC79i/EC99i)
"
"
#
#
"
#
$
%
&
(
(
(
&
&
%
%
$
$
#1
#1
#1
#1
#1
#1
351
352
353
354
chassis section chassis section
not supplied
(AC HOLD board)
M601
(EC99i) (EC79i)
(EC99i)
351 A-1599-061-A MAIN BOARD, COMPLETE (EC99i: US, CND)
351 A-1599-076-A MAIN BOARD, COMPLETE (EC99i: UK, AUS)
351
A-1599-082-A MAIN BOARD, COMPLETE (EC79i: US, CND)
351 A-1599-088-A MAIN BOARD, COMPLETE (EC79i: UK, AUS)
352 4-124-521-02 PANEL, BACK (EC99i: US)
352 4-124-521-12 PANEL, BACK (EC99i: UK, AUS)
352 4-124-521-22 PANEL, BACK (EC79i: US)
352 4-124-521-32 PANEL, BACK (EC79i: UK, AUS)
352 4-124-521-42 PANEL, BACK (EC99i: CND)
352 4-124-521-52 PANEL, BACK (EC79i: CND)
0 353 1-834-965-22 CORD, POWER (US, CND)
0 353 1-834-966-41 POWER-SUPPLY CORD (UK)
0 353 1-834-967-21 CORD, POWER (AUS)
354 3-701-748-00 CLAMP (EC79i/EC99i: US, CND, AUS)
354 4-147-421-01 HOLDER WIRE (EC99i: UK)
M601 1-787-344-11 FAN, DC (EC79i/EC99i)
#1 7-685-647-79 SCREW +BVTP 3X10 TYPE2 N-S
