46
HCD-EC69i/EC79i/EC99i
SECTION 7
EXPLODED VIEWS
1 4-120-682-02 PANEL (L), SIDE (US, CND)
1 4-120-682-12 PANEL (L), SIDE (UK, AUS)
2 3-363-099-32 SCREW (CASE 3 TP2)
3 4-120-683-02 PANEL (R), SIDE (US, CND)
3 4-120-683-12 PANEL (R), SIDE (UK, AUS)
#1 7-685-647-79 SCREW +BVTP 3X10 TYPE2 N-S
#2 7-685-247-14 SCREW +KTP 3X10 TYPE2 NON-SLIT
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

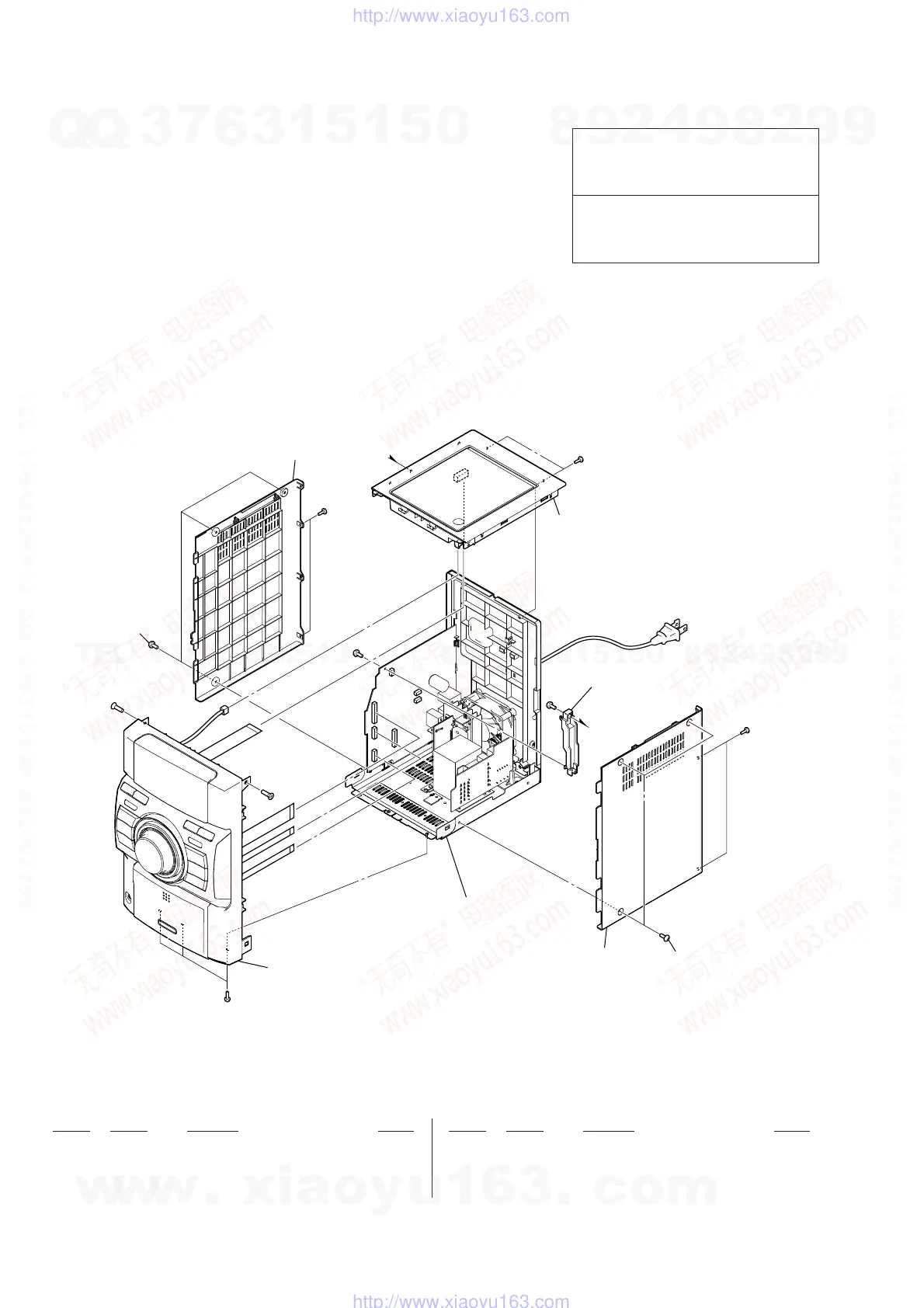

7-1. OVERALL SECTION
(HCD-EC69i)
The components identifi ed by mark 0
or dotted line with mark 0 are critical for
safety.
Replace only with part number specifi ed.
Les composants identifi és par une marque
0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifi é.
Note:
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Items marked “*” are not stocked since
they are seldom required for routine ser-
vice. Some delay should be anticipated
when ordering these items.
• The mechanical parts with no reference
number in the exploded views are not sup-
plied.
• Color Indication of Appearance Parts Ex-
ample:
KNOB, BALANCE (WHITE) . . . (RED)
↑ ↑
Parts Color Cabinet’s Color
• Abbreviation
AUS : Australian model
CND : Canadian model
#1
#2
#2
#1
#1
#1
#1
#1
1
2
2
3
top panel section
(HCD-EC69i/EC79i: US, CND)
MAIN boad, chassis section
(HCD-EC69i)
front panel section
not supplied
