48
HCD-EC69i/EC79i/EC99i

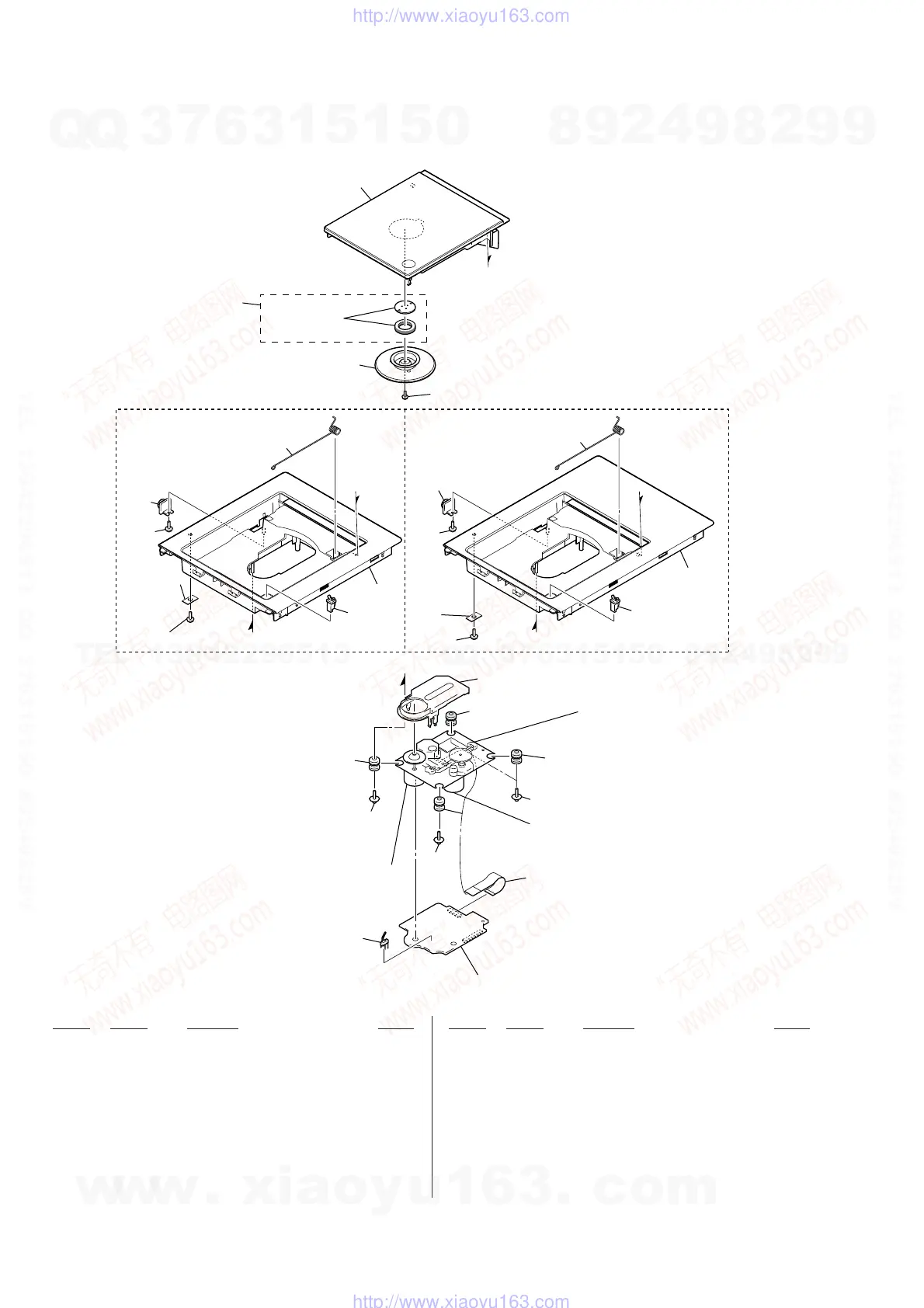

7-3. TOP PANEL SECTION
(HCD-EC69i/EC79i: US, CND)
101 4-120-740-02 LID (CD)
102 1-452-899-11 MAGNET
103 3-019-395-01 PLATE, CHUCKING
104 4-145-341-01 SPRING (LID)
105 4-120-739-01 PANEL, TOP (EC69i: US, CND)
105 4-120-739-11 PANEL, TOP (EC69i: UK, AUS)
105 4-136-037-01 PANEL, TOP (1) (EC79i: US, CND)
106 3-047-468-11 DAMPER
107 4-247-493-01 COVER, CD
108 3-931-379-21 RUBBER, VIBRATION PROOF (RED)
109 4-985-672-01 SCREW (+PTPWHM2.6), FLOATING
110 3-931-379-31 RUBBER, VIBRATION PROOF (GREEN)
111 3-253-143-01 SCREW (B2.6), (+) P TAPPING
112 3-087-053-01 +BVTP2.6 (3CR)
0 113 8-820-126-02 OPTICAL PICK-UP BLOCK (KSM-213CDP/C2NP)
114 1-834-268-21 WIRE (FLAT TYPE) (16 CORE)
115 A-1217-914-A CD BOARD, COMPLETE
S201 1-771-853-11 SWITCH, DETECTION (LIMIT)
SW750 1-692-960-11 SWITCH, PUSH (1 KEY) (CD LID OPEN/
CLOSE DETECT)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
101
SW750
not supplied
102
103
104
105
106
107
108
108
109
109
109
112
112
110
110
111
(EC69i) (ES79i: US, CND)
A
B
B
A
SW750
104
105
106
112
included in
105
included in
105
B
A
113
(including sled motor (M402),
spindle motor (M401))
114
115
S201
included in 113
(sled motor (M402))
included in 113
(spindle motor (M401))
112
