Sony HCD-EX5 - L.MOTOR Board; C MOTOR Board, L.SENSOR Board

15
HCD-EX5

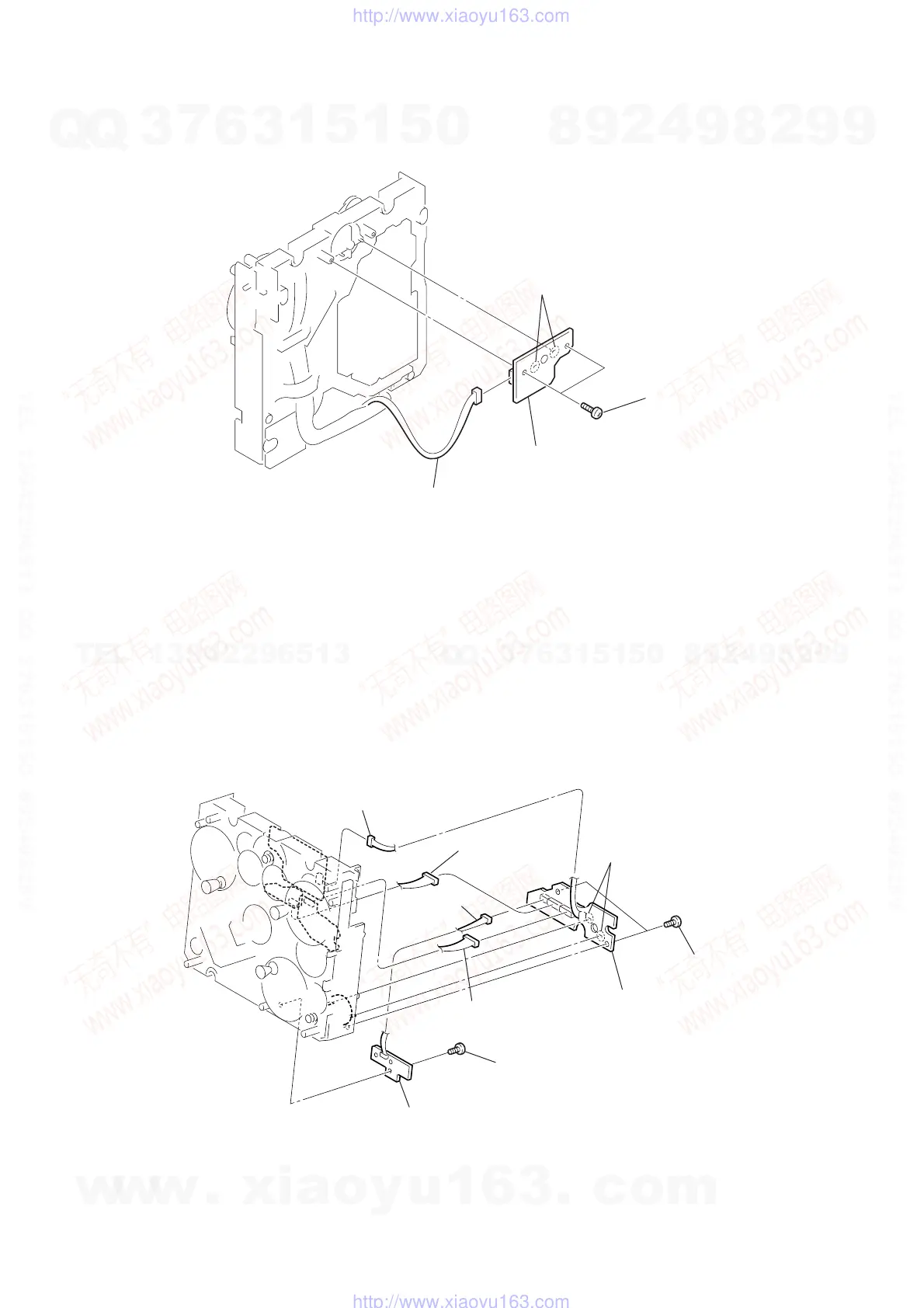

3-13. L.MOTOR Board
3-14. C MOTOR Board, L.SENSOR Board
2 two screws
(+BVTP 2.6
× 8
)
4 L.MOTOR board
3 connector
(CN711)
1 Remove solder (two portions ).
2 two screws
(+BTP M 2.6
× 6
)
8 screw
(+BTP M 2.6
× 6)
7 C MOTOR board
1 Remove solder
(two portions ).
6 c onnector
(CN755)
5 c onnector
(CN753)
4 c onnector
(CN754)
3 connector
(CN711)
9 L.SENSOR board (R)
