NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
•Abbreviation
MX : Mexican model.
AUS: Australian model.
SP : Singapore model.
HK : Hong Kong model.
TW : Taiwan model.
KR : Korean model
CND : Canadian model.
47
HCD-EX5
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque
0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifié.

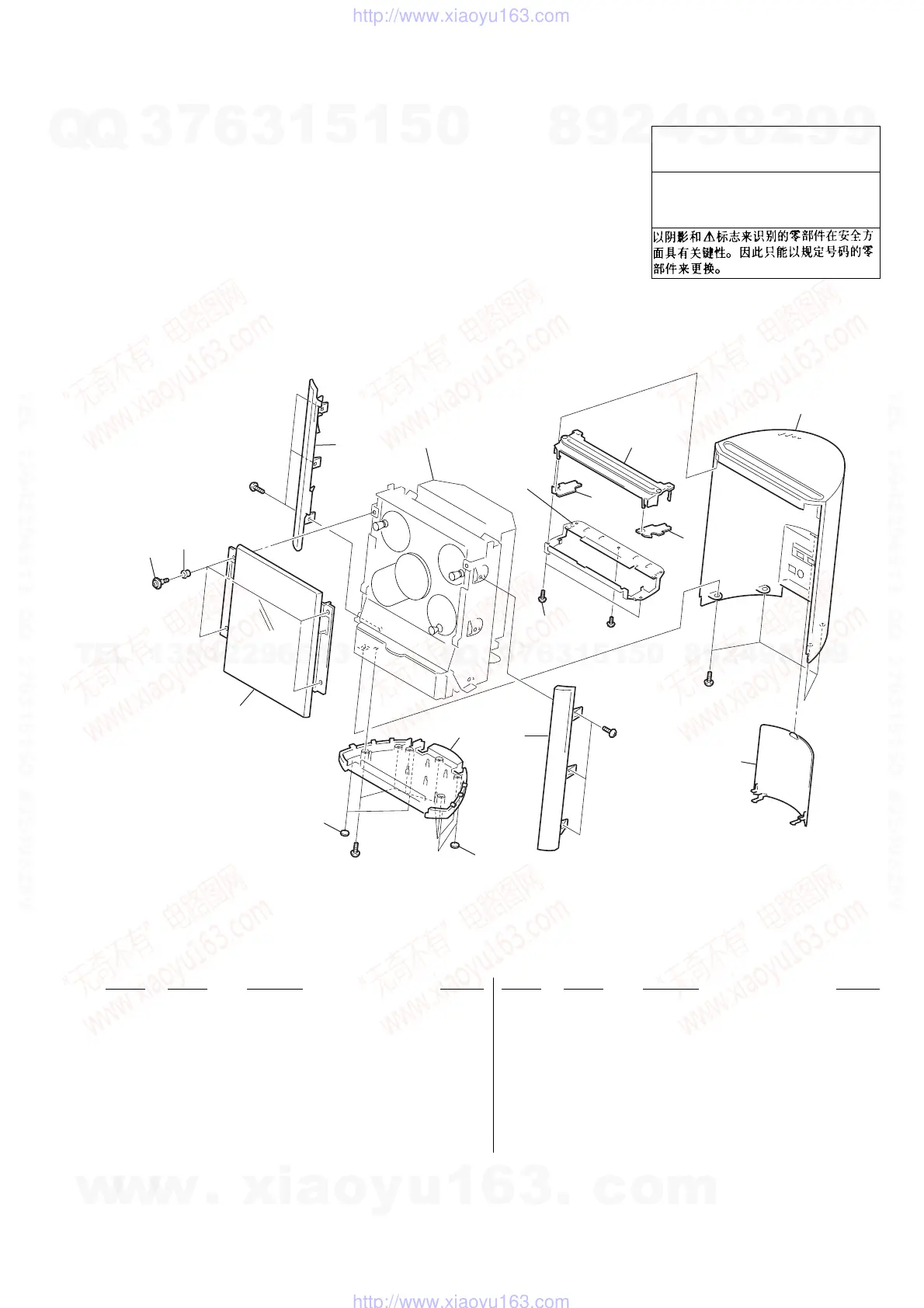

7-1. Case Section
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
#1
#1
#2
#1
#1
2
1
9
not
supplied
chassis section-1
3
10
12
13
12
11
4
6
7
5
8
1 X-4954-715-1 WINDOW ASSY (U), GLASS
2 4-989-494-12 SCREW (SLIDER), STEP
3 4-240-304-01 BUSHING (BRACKET)
4 4-240-308-01 PLATE (L), SIDE
5 X-4954-719-1 DISC ASSY, GUIDE
6 1-684-938-11 OS BOARD
7 1-684-939-11 OC BOARD
8 4-240-323-01 CASE (US,CND)
8 4-240-323-11 CASE (AEP,UK)
8 4-240-323-21 CASE (AUS,SP,MX,HK,TW,KR)
9 4-218-253-21 SCREW (M2.6), +BTTP
10 4-240-302-01 COVER (BACK)
11 4-240-309-01 PLATE (R), SIDE
12 4-240-321-01 FOOT
13 4-240-301-01 COVER (BOTTOM)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S
#2 7-685-534-14 SCREW +BTP 2.6X8 TYPE2 N-S
SECTION 7
EXPLODED VIEWS
