16
HCD-EX5

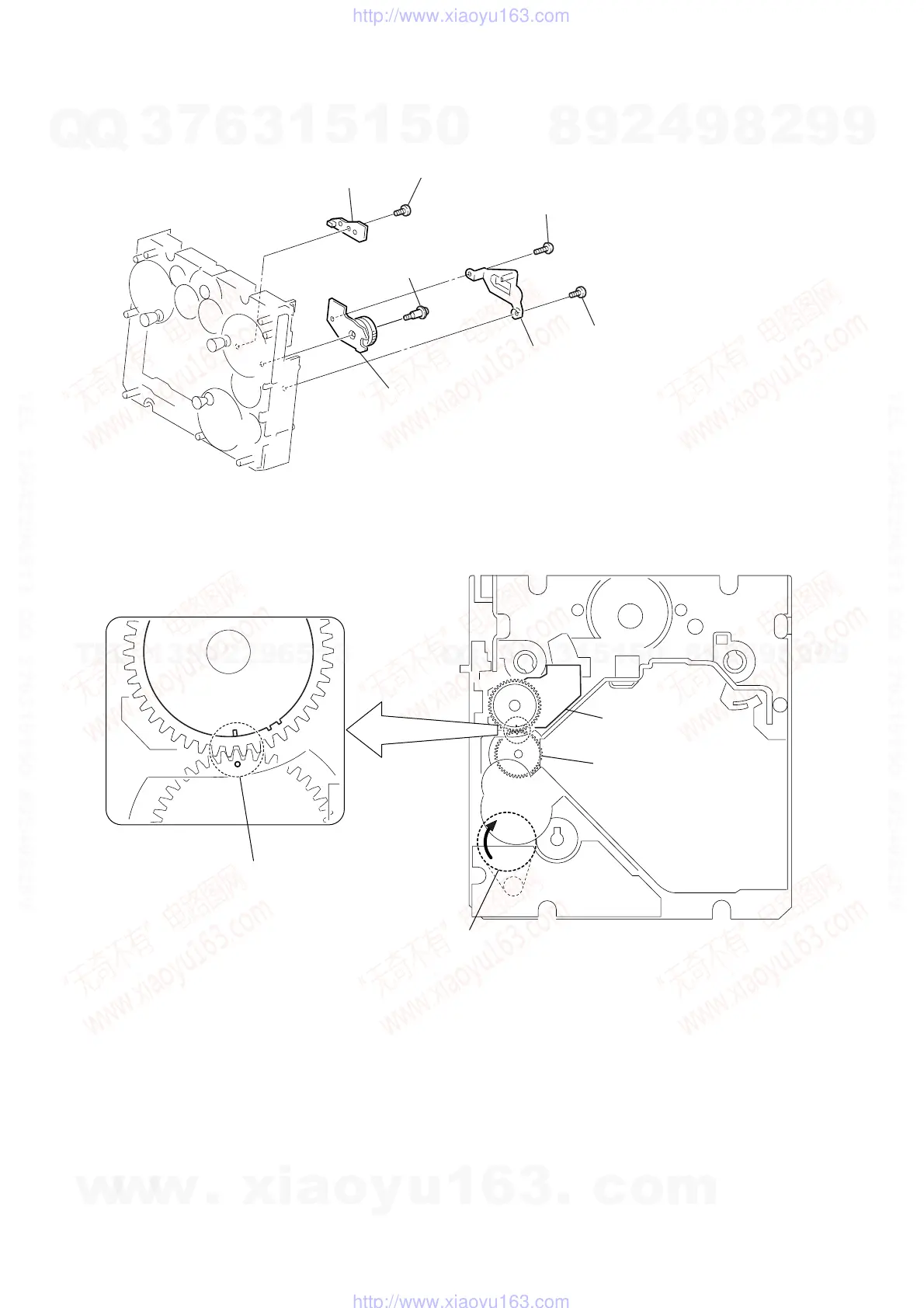

3-15. ENCODER Board, D.SENSOR Board
4
screw (+PWH 2
×
6)
2
screw (+BTP 2.6
×
8
)
6
screw
(+BTP 2.6
×
6)
1
screw
(+BTP 2.6
×
6)
5
ENCODER
board
3
cover (encoder)
7
D.SENSOR board
PRECAUTION DURING ENCODER board INSTALLATION
pulley (LDG2)
cam (A)
ENCODER board
Rotate the pulley (LDG2) until the mark of the cam (A) becomes visible.
Install the ENCODER board in the way that it is sandwiched by
the cut-outs of the ENCODER board.
