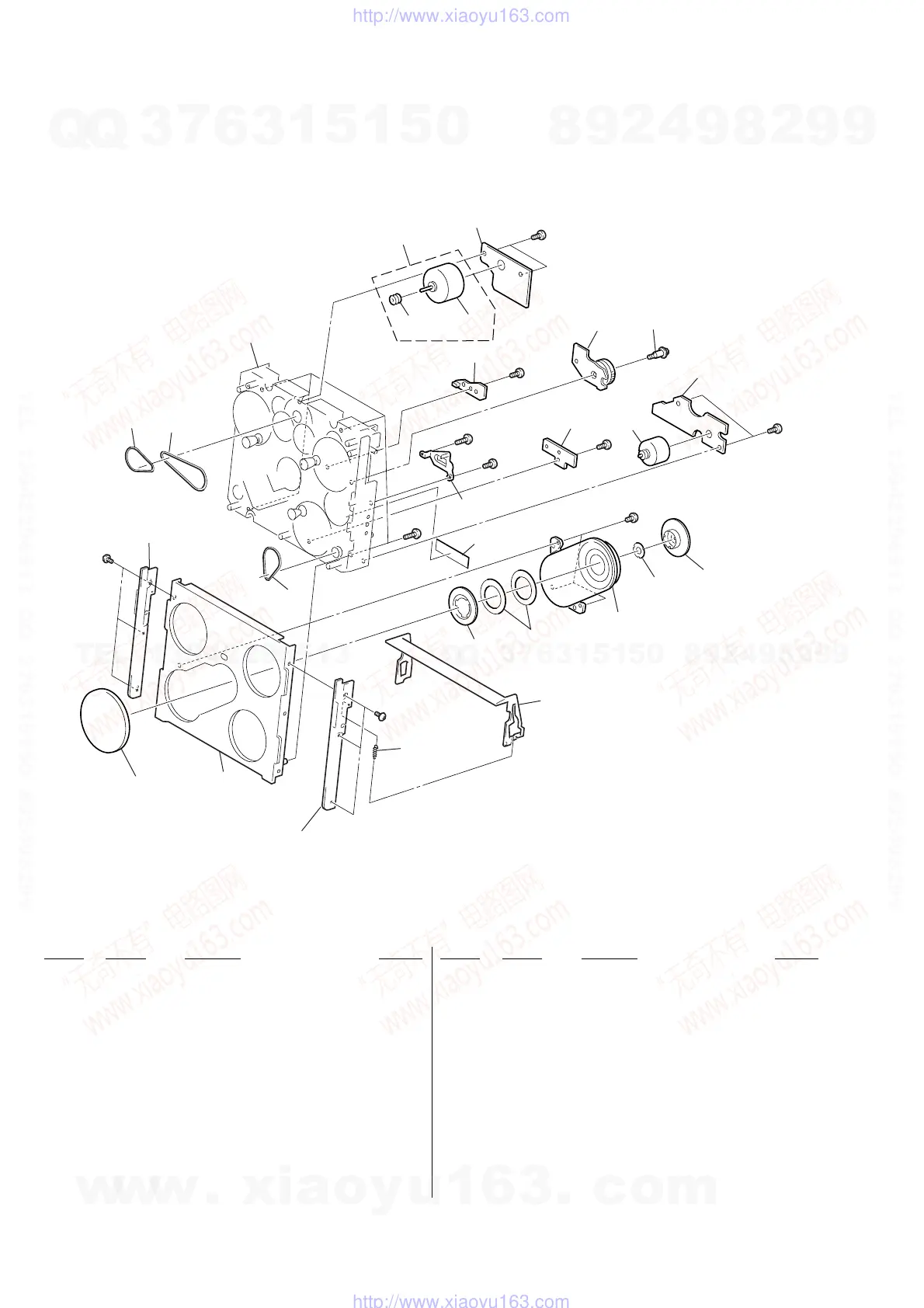

7-4. Mechanism Section(CDM71C-31BD63A)-1
not
supplied
not
supplied
not
supplied
M701
M702
not supplied
403
413
404
405
418
408
419
412
412
411
415
402
401
417
416
406
407
409
#5
#5
#5
#5
#8
#8
#6
#6
#5
#9
414
mechanism section
(CDM71C-31BD63A)-2
410
401 4-240-317-01 SPRING (CD DOOR), TENSION COIL
402 4-240-313-01 LID (CD)
403 A-4735-610-A MOTOR (LD) ASSY
404 1-683-912-12 D.SENSOR BOARD
405 1-683-914-11 ENCODER BOARD
406 4-237-947-01 BELT (ROLLER) (L)
407 X-4954-812-1 CAP (CHUCK) ASSY
408 1-683-913-12 L.SENSOR BOARD
409 4-359-697-01 CUSHION (F)
410 4-240-533-01 ORNAMENT (MECHA PANEL)
411 4-237-428-01 SHEET (MG)
412 4-237-427-01 BELT (CDM71)
413 1-683-915-12 L.MOTOR BOARD
414 A-4728-283-A C MOTOR BOARD, COMPLETE
415 4-237-426-02 COVER (AT)
416 4-237-425-02 PULLEY (AT)
417 4-237-416-02 HOLDER (AT)
418 4-239-618-01 SCREW (+PWH,2X6), STEP TAPPING
419 4-239-574-01 COVER (ENCODER)
M701 1-763-790-11 MOTOR, DC (LO)
M702 A-4735-611-A MOTOR (CK) ASSY (CK)
#5 7-685-133-19 SCREW +BTP 2.6X6 TYPE2 N-S
#6 7-685-860-04 SCREW +BVTT 2.6X4 (S)
#8 7-685-534-19 SCREW +BTP 2.6X8 TYPE2 N-S
#9 7-685-860-04 SCREW +BVTT 2.6X4 (S)
