Sony HCD-EX5 - Case Disassembly; Board Component Disassembly

9
HCD-EX5
Note : Follow the disassembly procedure in the numerical order given.

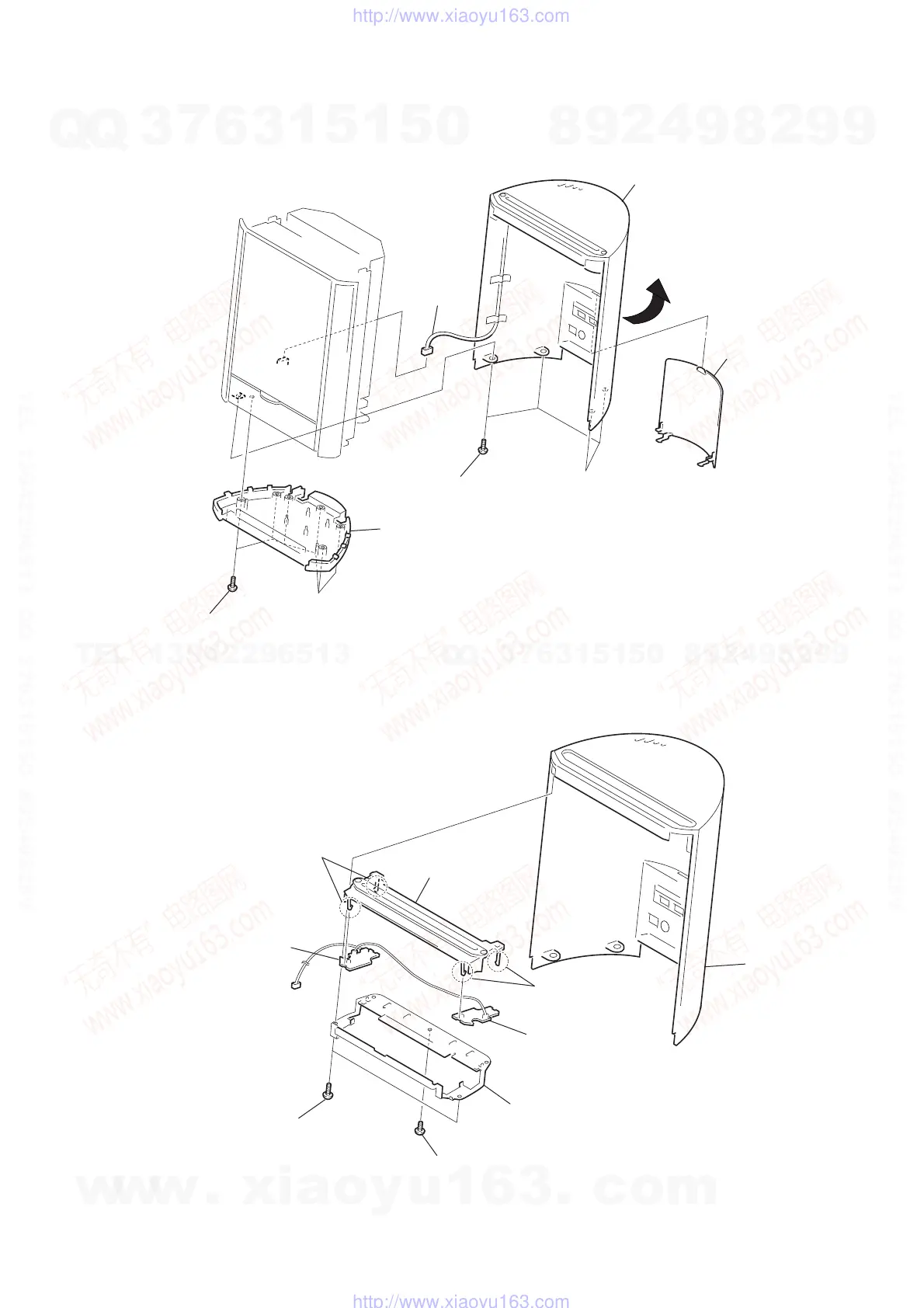

3-1. Case
3-2. OC Boad,OS Boad
2 six screws (+BVTP 3 × 8 )
1 cover (back)
3 cover (bottom)
6 c onnector
(CN621)
7 case
4 four screws (+BVTP 3 × 8 )
5
4 guide disc assy
6 OS board
8 OC board
5 two claws
7 two claws
3 bracket
cas
e
1 two screws (+BTP 2.6 × 8 )
2 screw (+BTP 2.6 × 8 )
