49
HCD-EX5
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

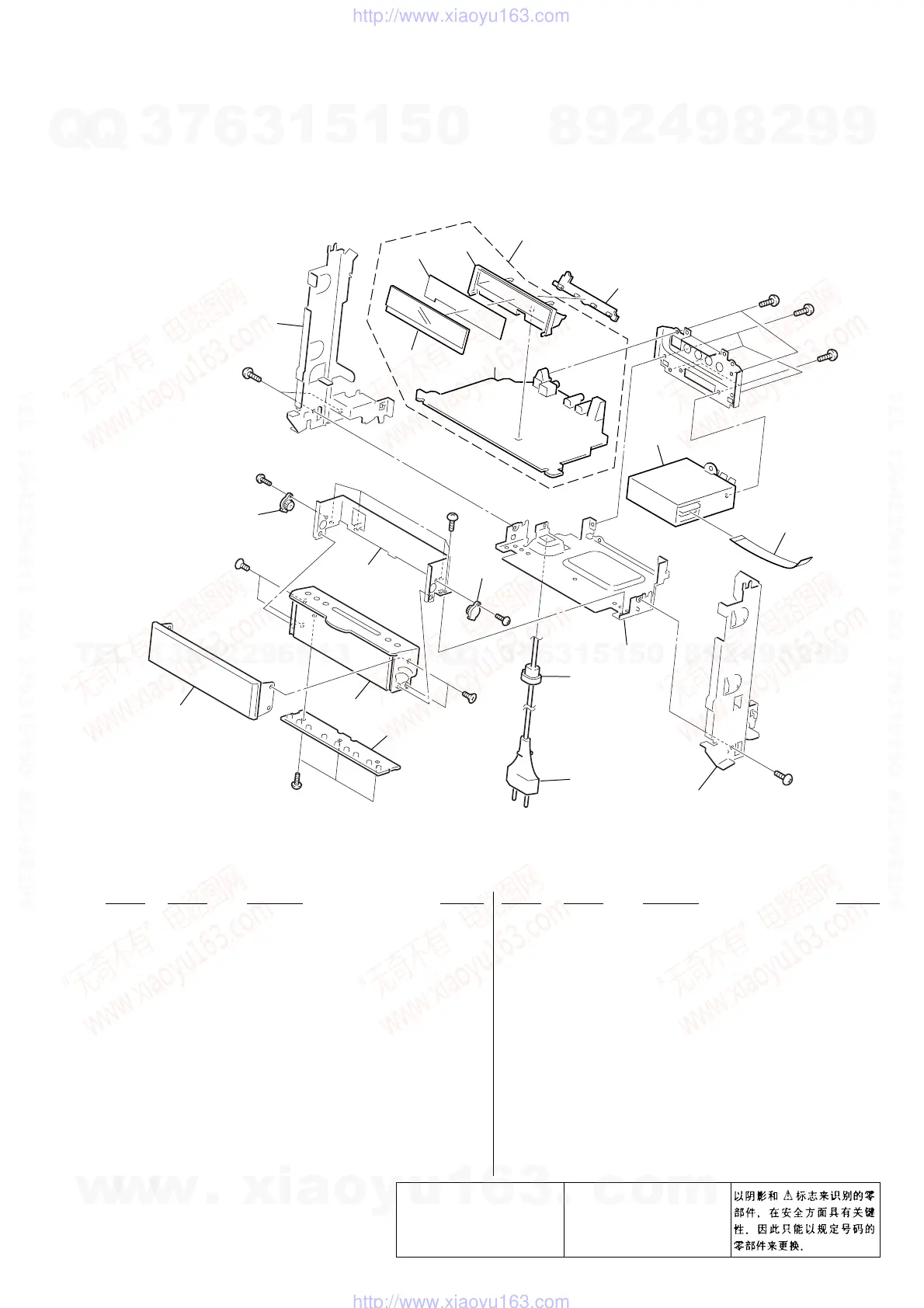

7-3. Chassis Section-2
#4
#4
#3
#3
#1
#1
LCD601
#1
#1
#1
#1
#1
101
102
112
111
110
109
105
108
106
104
103
104
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
107
101 X-4954-716-1 WINDOW ASSY (L), GLASS
102 1-684-937-11 LID BOARD
103 X-4954-718-1 BUTTON ASSY, CASE
104 3-239-275-01 DAMPER (S), SMALL
105 A-4676-614-A MAIN BOARD, COMPLETE (US,CND)
105 A-4676-642-A MAIN BOARD, COMPLETE (AEP,UK)
105 A-4676-648-A MAIN BOARD, COMPLETE (AUS,SP,HK,TW,KR)
105 A-4729-141-A MAIN BOARD, COMPLETE (MX)
106 4-240-311-01 ILLUMINATOR
107 4-240-310-01 HOLDER, LCD
108 1-684-936-11 LED BOARD
109 1-693-529-11 TUNER (FM/AM) (AEP,UK)
109 1-693-531-71 TUNER (FM/AM) (AUS,SP,MX,HK,TW)
109 1-693-534-11 TUNER (FM/AM) (US,CND)
109 1-693-538-11 TUNER (FM/AM) (KR)
110 1-769-940-11 WIRE (FLAT TYPE) (11 CORE) (EXCEPT AEP,UK)
110 1-773-004-11 WIRE (FLAT TYPE) (15 CORE) (AEP,UK)
111 4-966-266-01 BUSHING (S) (FBS002), CORD (MX)
111 4-966-267-04 BUSHING (FBS001), CORD (EXCEPT MX)
0 112 1-769-079-11 CORD, POWER (KR)
0 112 1-775-790-51 CORD, POWER (AUS)
0 112 1-777-071-62 CORD, POWER (AEP,UK,SP,HK,TW)
0 112 1-783-531-31 CORD, POWER (US,CND)
0 112 1-792-382-21 CORD, POWER (MX)
LCD601 1-804-713-11 DISPLAY PANEL, LIQUID CRYSTAL
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S
#3 7-685-852-04 SCREW +BVTT 2X5 (S)
#4 7-685-233-19 SCREW +KTP 2.6X6 TYPE2 SLIT
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par
une marque 0 sont critiques
pour la sécurité.
Ne les remplacer que par une
pièce portant le numéro spécifié.
