51
HCD-EX5

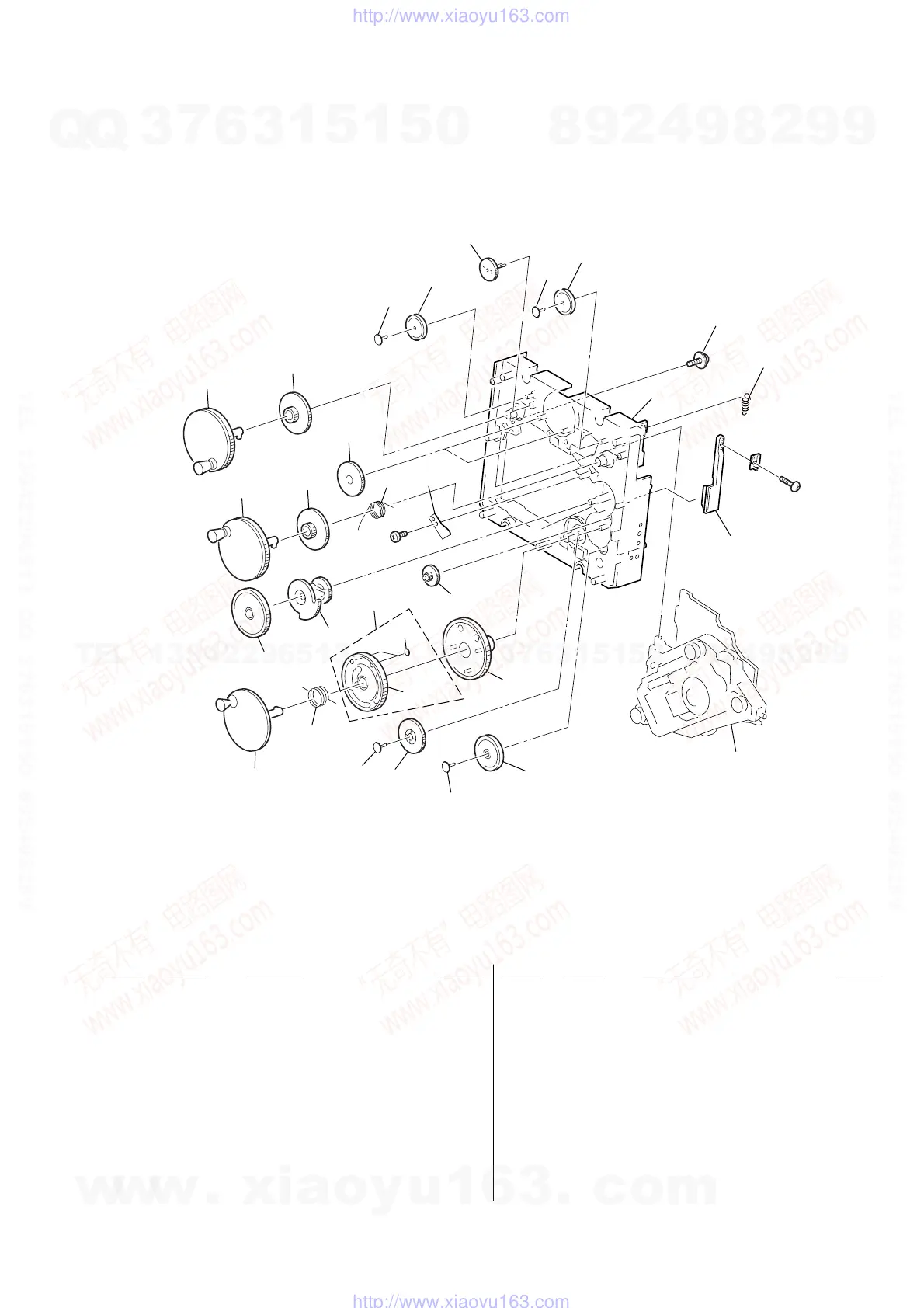

7-5. Mechanism Section(CDM71C-31BD63A)-2
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
not
supplied
not
supplied
461
453
470
462
451
463
467
#5
#7
base unit (BU-31BD63A)
473
460
459
459
453
466
453
455
453
454
452
471
465
468
469
464
455
456
458
457
451 X-4954-292-1 PULLEY (SPT) ASSY
452 4-237-417-02 CAM (A)
453 4-238-841-01 BUSHING (GEAR)
454 4-237-430-01 SPRING (S), TORSION
455 4-237-414-01 GEAR (L1)
456 4-237-413-01 GEAR (S1)
457 X-4954-291-1 PULLEY (RTR) ASSY
458 X-4954-290-1 PULLEY (RTL) ASSY
459 4-237-411-01 PULLEY (LDG)
460 4-237-420-03 CHASSIS
461 4-237-460-01 PULLEY (LDG2)
462 4-237-429-02 SPRING (M), TORSION
463 4-218-252-51 SCREW (+PTPWH M2.6), FLOATING
464 X-4954-644-1 GEAR (RT) ASSY
465 4-238-552-01 REFLECTOR (CDM71)
466 4-237-459-01 GEAR (LA)
467 4-237-415-01 GEAR (S2)
468 4-237-424-01 GEAR (KT)
469 4-237-423-01 GEAR (C2)
470 4-237-421-01 GEAR (C1)
471 4-237-952-03 LEVER (ST)
473 4-238-835-02 SPRING (71L), TENSION
#5 7-685-133-19 SCREW +BTP 2.6X6 TYPE2 N-S
#7 7-685-134-19 SCREW +P 2.6X8 TYPE2 NON-SLIT
