20
HCD-EX5

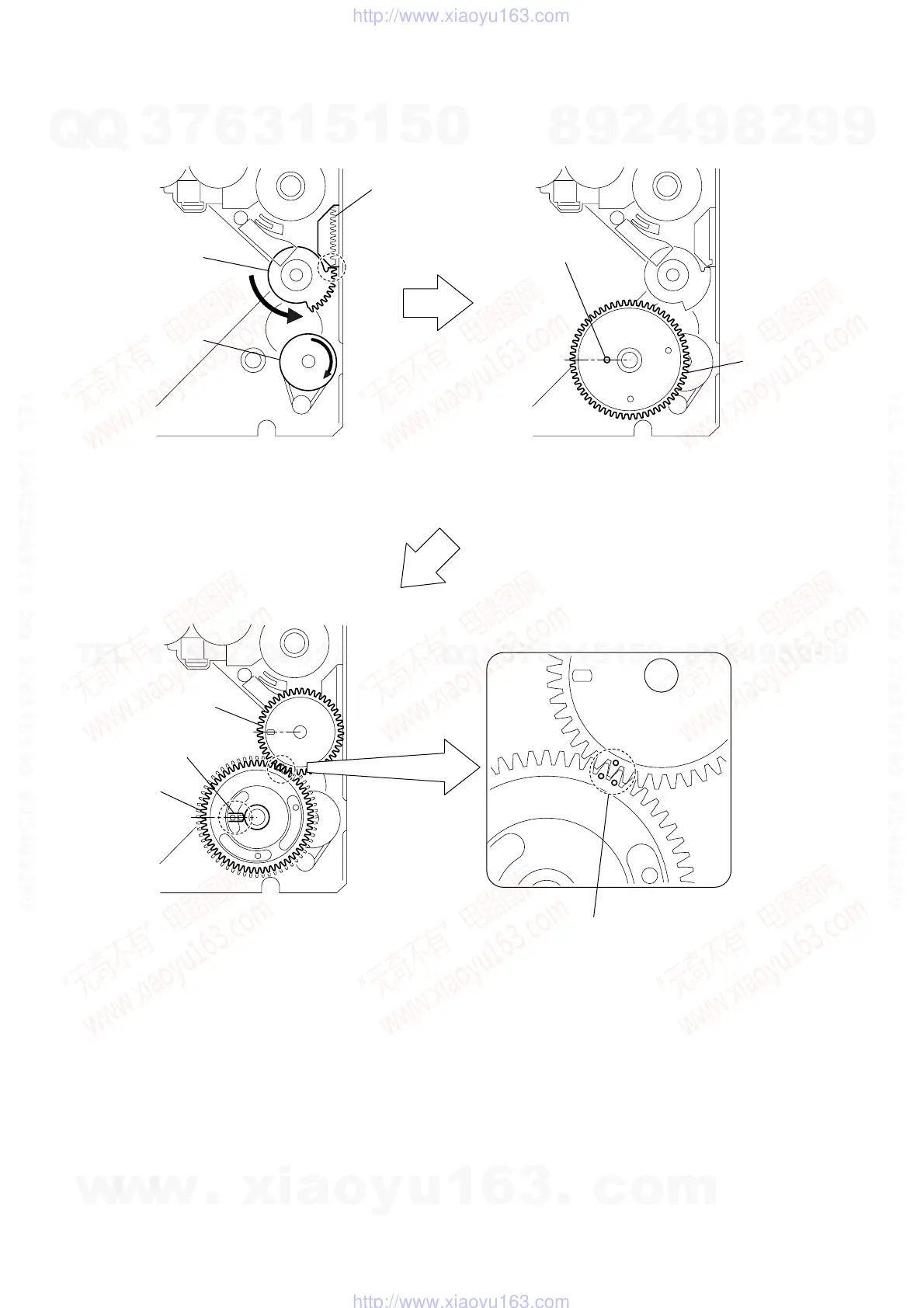

PRECAUTION DURING gear (RT) assy, gear (KT) INSTALLATION
gear (KT
gear (RT) assy
gear (RT) assy
torsion spring (M)
gear (S2)
gear (S2)
pulley (LDG2)
lever (ST)
cam (A)
Confirm that the gear (S2) mark is located
in between the gear (RT) assy marks.
Rotate the pulley (LDG2) until it reaches the position
where the cam (A) contacts with the lever (ST).
Install the gear (KT) and position it so that the boss
that is closest to the inside is located at the 9 o'clock position.
The boss that is closest to the inside
Install the gear (RT) assy so that the two bosses are aligned
in between the torsion spring (M).
Install the gear (S2) so that its hole is located at the 9 o'clock position.
