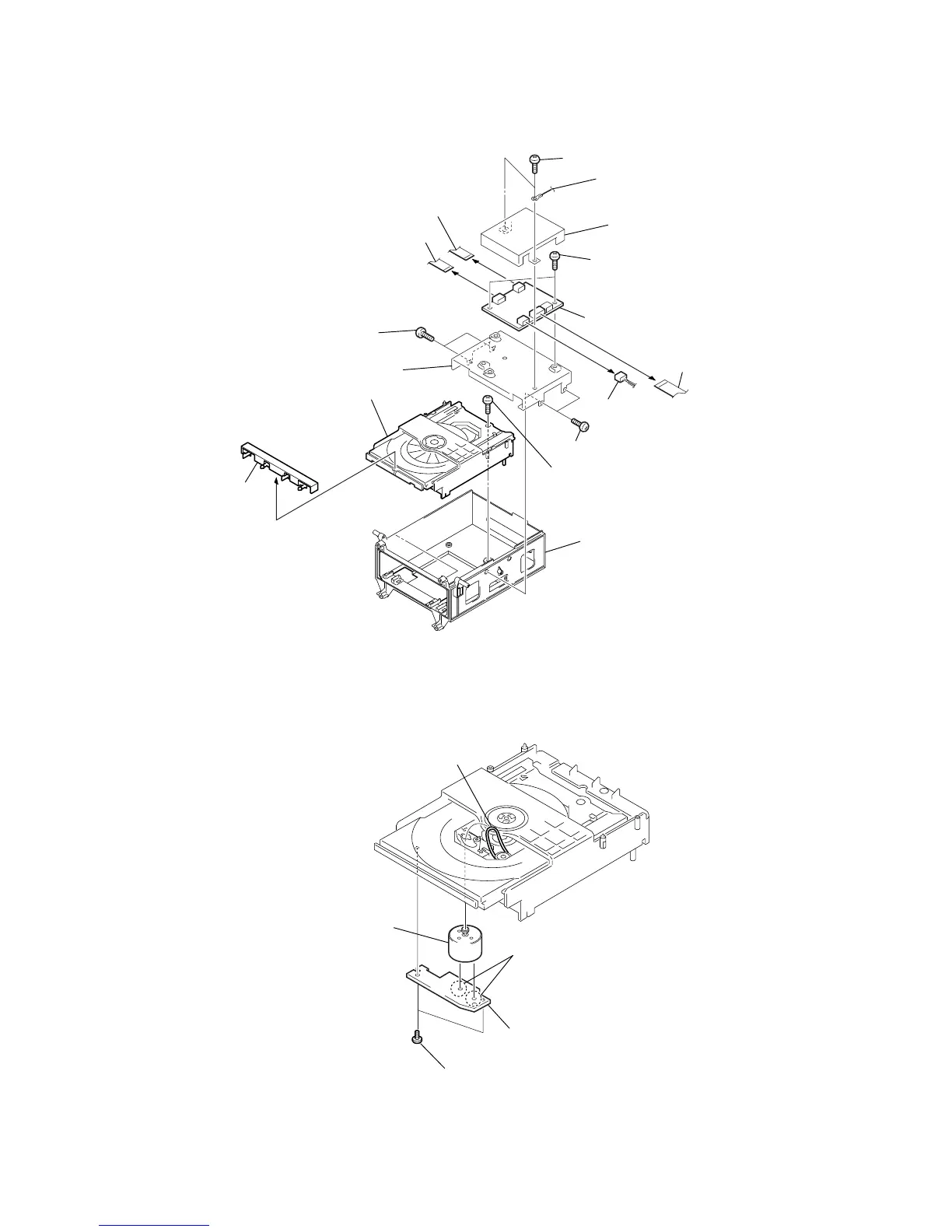

3-7. VCD BOARD, CD MECHANISM DECK (CDM55A-30BD61S)
qd screw (+BVTP 3 × 10)
qa two screws (+BVTP 3 × 10)
qs holder, shield case
8 two screws (+BVTP 3 × 10)
q; two screws (+BVTP 3 × 10)
9 VCD board
qf CD holder
2 two screws (+BVTP 3 × 10)
qh CD mechanism
deck
4 lid (VCD), shield case
3 wire assy
6 wire (flat type) 23p (CN802
)
1 wire (flat type) 9p (CN803)
7 wire (flat type) 11p (CN806)
5 connector
4p (CN804)
qg CD plate
5 LOADING board
2 two screws (+BTP 2.6 × 6)
4 motor (LD) assy
(M901)
1 Remove the belt.
3 Remove soldering from the two points.
3-8. LOADING BOARD
