Sony HCD-GP6V - 8 Exploded Views; Overall Section

41
HCD-GP6V
SECTION 8
EXPLODED VIEWS
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Items marked “*” are not stocked since they
are seldom required for routine service.
Some delay should be anticipated when
ordering these items.
• The mechanical parts with no reference
number in the exploded views are not supplied.
Ref. No. Part No. Description Remark
1 4-247-756-51 CABINET, TOP
2 3-229-336-01 SCREW,+BVWH TAPPING
3 1-693-620-11 TUNER (FM/AM)
4 4-247-367-01 LID, CD
5 not supplied
6 not supplied

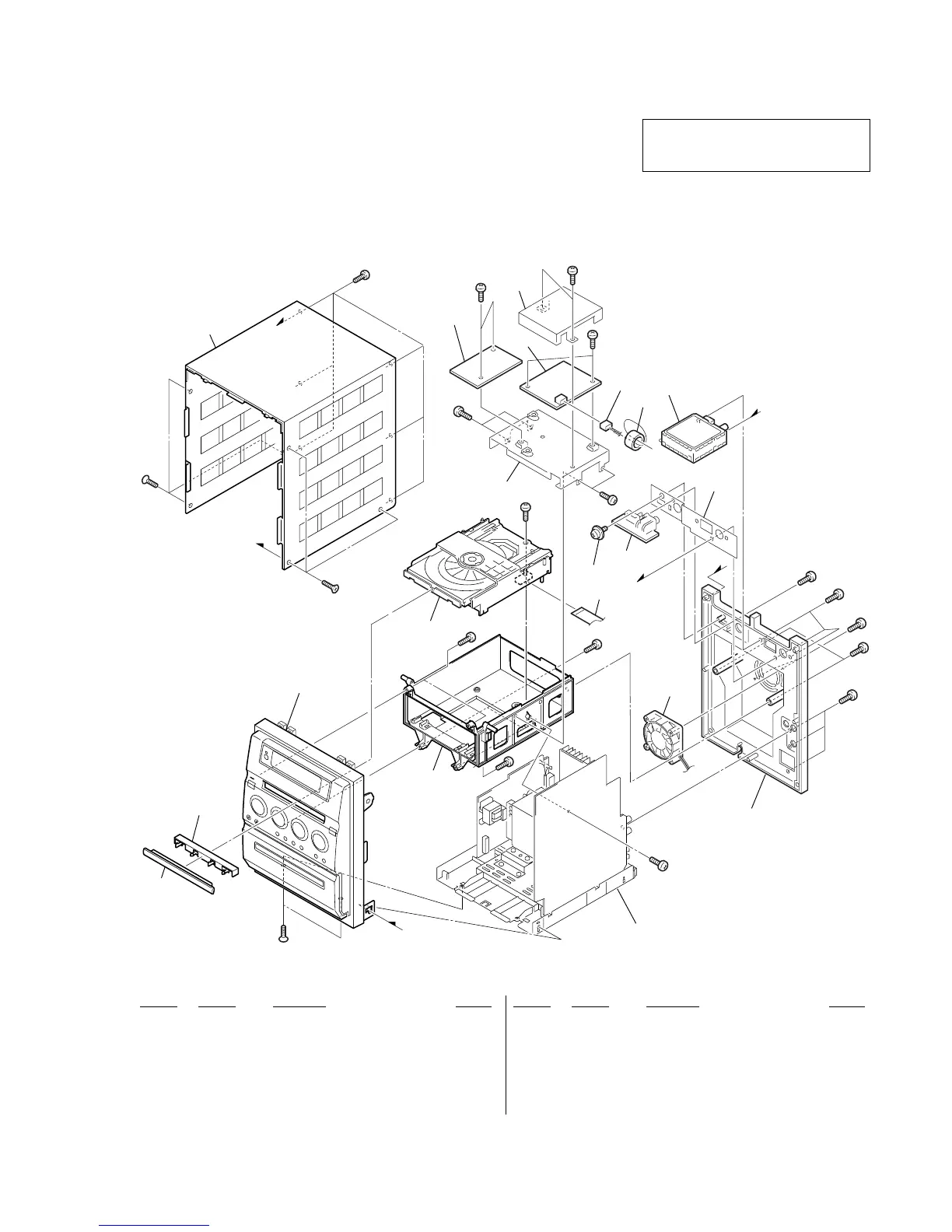

8-1. OVERALL SECTION
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
chassis assy
a
c
c
3
8
5
#3
#3
#3
#3
#3
#2
6
2
7
#2
#2
#2
#2
#2
#2
#2
CD mechanism
deck section
not
supplied
not
supplied
not
supplied
1
a
#3
#1
#1
b
4
#1
front panel section
not
supplied
b
#2
#2
7 not supplied
8 A-1082-586-A VCD BOARD,COMPLETE
#1 7-685-248-14 SCREW +KTP 3X12 TYPE2 NON-SLIT
#2 7-685-647-79 SCREW +BVTP 3X10 TYPE2 N-S
#3 7-685-647-14 SCREW +BVTP 3X10 TYPE2 N-S
Ref. No. Part No. Description Remark
Ver 1.2
