Sony HCD-GP6V - Printed Wiring Board - MAIN Section

2828
HCD-GP6V

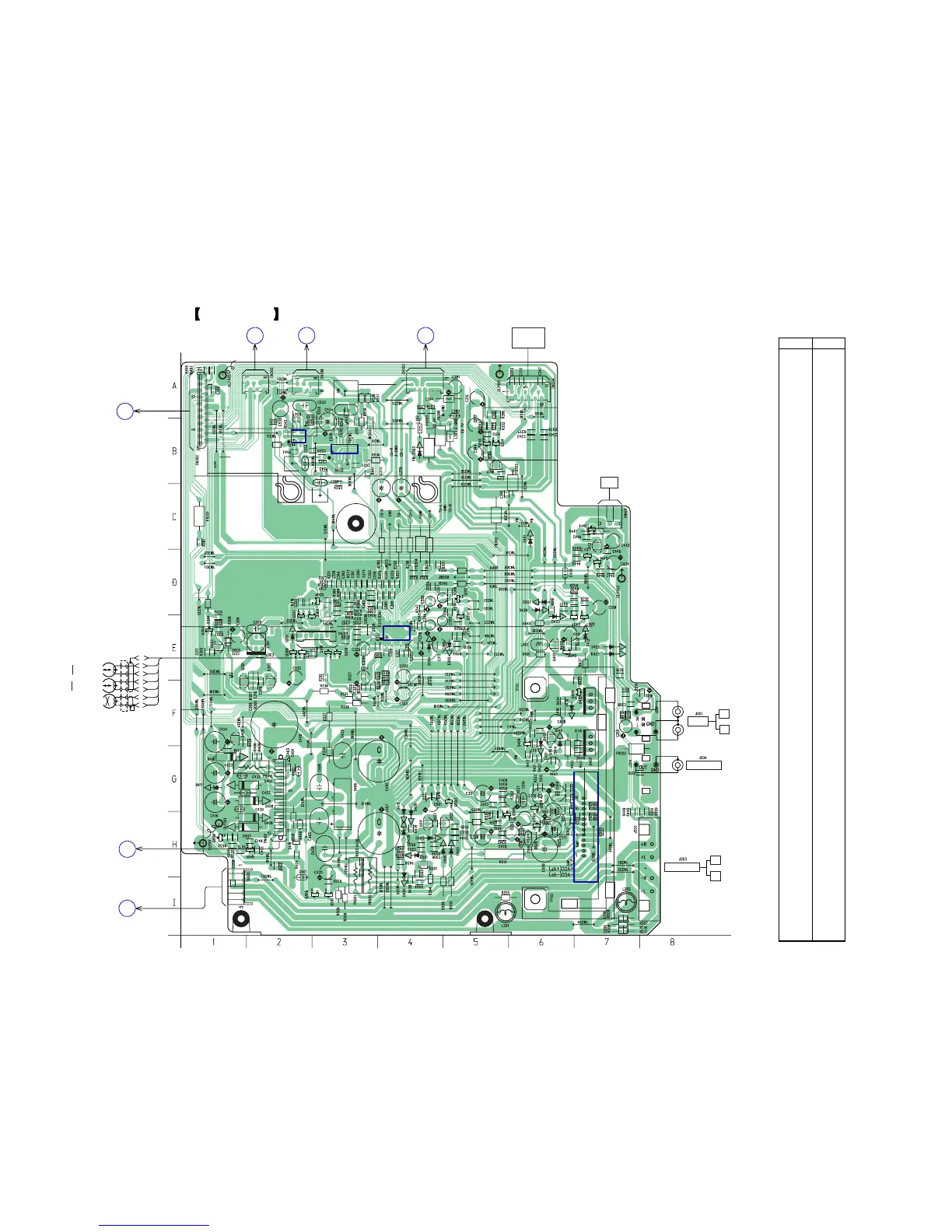

7-7. PRINTED WIRING BOARD — MAIN SECTION —
• Semiconductor
Location
Ref. No. Location
D301 E-2
D302 E-5
D303 B-4
D304 E-4
D402 G-2
D403 H-1
D405 I-4
D408 G-2
D409 H-2
D410 G-1
D411 G-1
D412 H-4
D413 E-7
D414 F-6
D415 F-6
D416 H-2
D418 F-6
D420 H-4
D421 C-6
D422 E-7
D423 E-7
D425 D-6
D426 D-6
D428 H-4
D501 H-4
D502 D-6
D503 H-4
D505 H-5
D506 H-5
IC201 H-7
IC301 E-4
IC501 B-2
IC502 B-3
Q301 F-1
Q302 F-2
Q303 E-1
Q304 E-4
Q305 E-3
Q306 E-2
Q307 E-2
Q308 D-3
Q309 E-3
Q310 E-3
Q311 E-2
Q312 D-5
Q313 E-5
Q314 B-5
Q315 B-5
Q316 B-5
Q401 H-2
Q402 F-7
Q403 F-6
Q404 F-6
Q405 E-6
Q406 E-6
Q407 D-7
Q408 F-1
Q409 F-6
Q410 F-7
Q411 C-7
Q412 C-7
Q413 D-7
Q414 D-7
Q416 H-2
Q501 H-4
Q502 H-5
Q503 G-5
Q504 G-6
Q505 H-6
Q506 H-6
Q507 D-7
Q508 H-1
Q509 I-3
Q510 I-3
Q511 H-4
• See page 19 for Circuit Boards Location.
IC201
IC301
IC502
IC501
R
L
AUX IN
E
E
E
EE
E
E
E
E
E
SUBWOOFER
SPEAKERS
R
L
TO
POWER BOARD
CN801
(Page 34)
I
TO
CONTROL
BOARD
CN605
(Page 30)
J
TO
CONTROL BOARD
CN601
(Page 30)
F
TO
MIC/ECHO
BOARD
CN502
(Page 32)
G
TO
VCD BOARD
CN806
(Page 25)
C
TUNER
BLOCK
FAN
5
6
7
1
2
3
4
L-CH
R-CH
ERASE
REC/PB
TO
PHONE BOARD
CN201A
(Page 32)
H
E
E
E
MAIN BOARD
1
14
28
15
1
1
4
5
8
8
16 9
