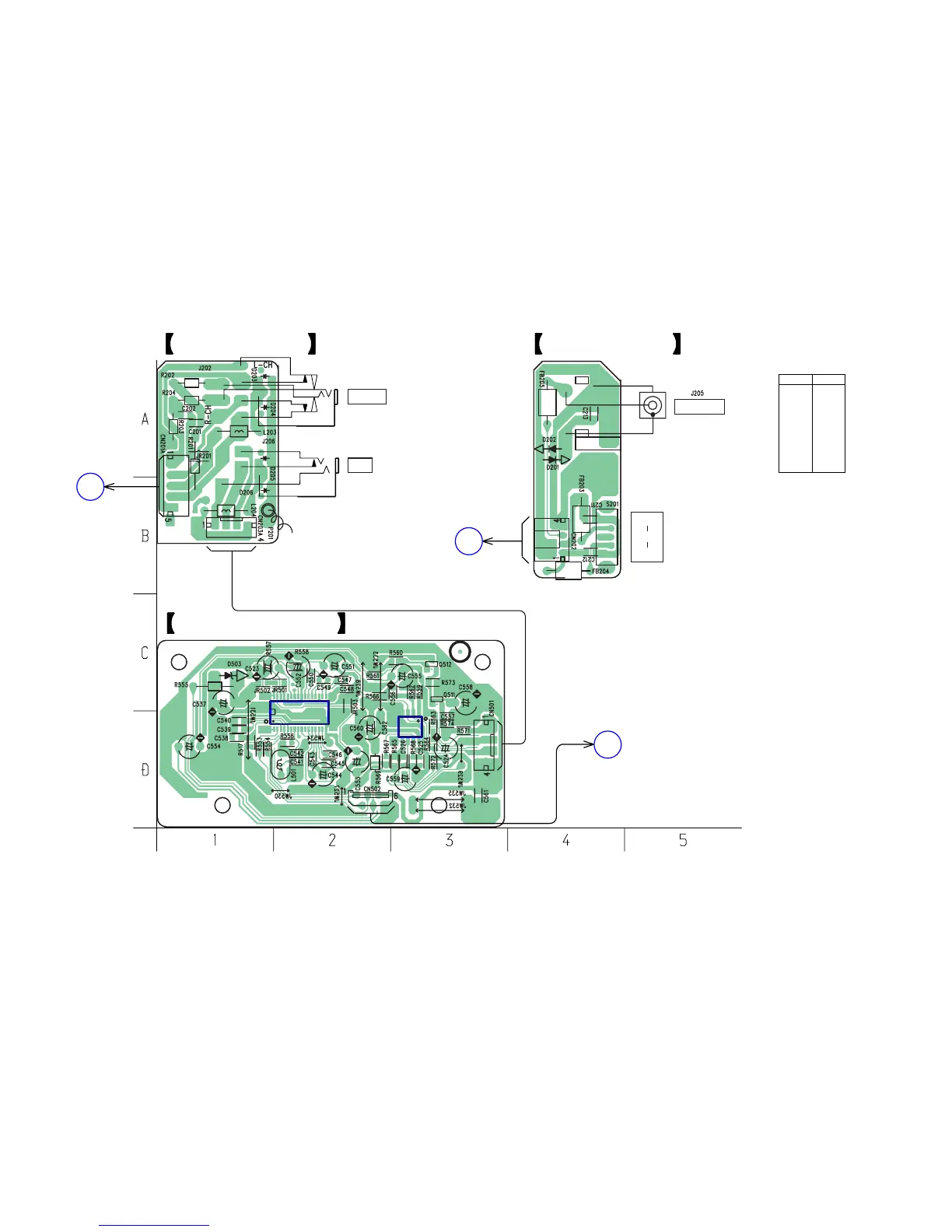

7-11. PRINTED WIRING BOARD — MIC ECHO/PHONE SECTION —
• See page 19 for Circuit Boards Location.
IC504
IC503
116
1
4
85
32 17
MIC/ECHO BOARD
PHONE BOARD V-OUT BOARD
VIDEO OUT
NTSC
AUTO
PAL
TO
VCD BOARD
CN804
(Page 25)
E
PHONES
MIC
TO
MAIN BOARD
CN201
(Page 28)
H
TO
MAIN BOARD
CN306
(Page 28)
G
• Semiconductor
Location
Ref. No. Location
D203 A-1
D204 A-1
D205 A-1
D206 B-1
D503 C-1
IC503 D-3
IC504 C-2
Q511 C-3
Q512 C-3
