Sony HCD-GP6V - Chassis Section

43
HCD-GP6V
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
101 4-247-752-01 RUBBER, FOOT
103 A-4750-202-A MAIN BOARD, COMPLETE
104 not supplied
0 105 1-765-558-11 CORD, POWER
108 not supplied
109 not supplied
110 not supplied
0 PT801 not supplied
#2 7-685-647-79 SCREW +BVTP 3X10 TYPE2 N-S
#4 7-682-561-09 SCREW +B 4X8
#5 7-685-534-19 SCREW +BTP 2.6X8 TYPE2 N-S

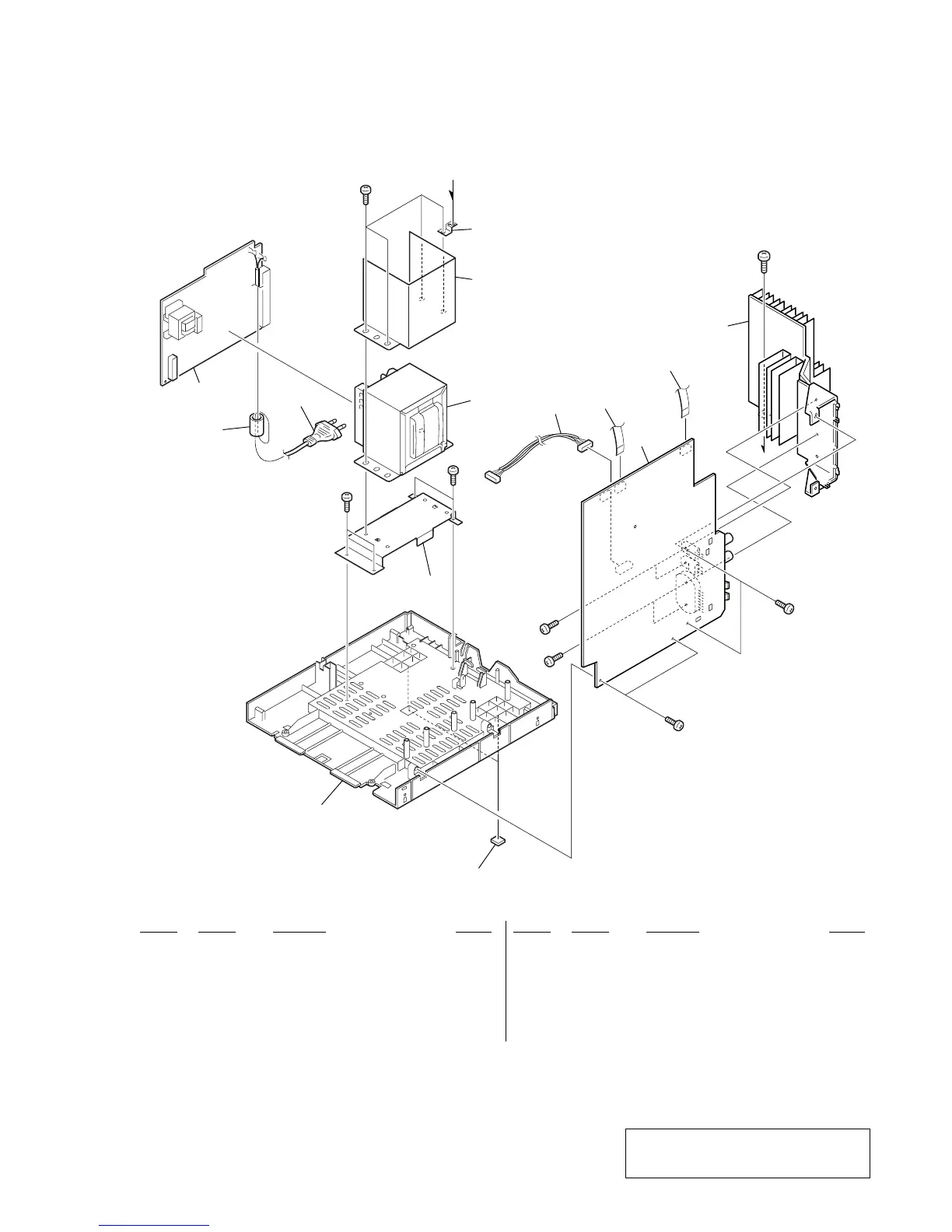

8-3. CHASSIS SECTION
not supplied
not supplied
not
supplied
PT801
not supplied
not supplied
not supplied
#2
#2
#4
#2
#2
#2
#5
#2
101
103
105
104
110
108
b
b
109
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.
