Sony HCD-GP6V - CD Mechanism Deck Section

44
HCD-GP6V
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
151 1-674-336-12 LOADING BOARD
152 4-925-315-31 DAMPER
153 4-224-894-22 TRAY (CDM55D)
154 4-220-233-01 CAM (CDM55)
155 4-221-815-11 ROLLER
156 4-220-237-01 GEAR (A)
157 4-220-234-01 PULLEY (LDG)
158 4-221-816-01 BELT (CDM55)
159 4-227-598-01 SPACER (55)
160 4-220-238-01 GEAR (B)
161 4-220-229-02 LEVER (SW)
162 4-220-239-01 SPRING, TORSION
165 4-231-777-02 SHEET (KH2)
166 4-238-004-01 HOLDER (BU-30), BU
167 4-985-672-01 SCREW (+PTPWHM2.6), FLOATING
168 4-229-358-01 SHAFT (BU21)
169 4-231-451-01 INSULATOR (BU-30)
170 4-227-045-31 SPRING (INSULATOR), COIL
171 X-4954-597-1 PULLEY (AT-2) ASSY
172 4-227-899-01 SCREW (DIA. 12), FROATING
M901 A-4735-337-A MOTOR (LD) ASSY
#7 7-685-533-19 SCREW +BTP 2.6X6 TYPE2 N-S

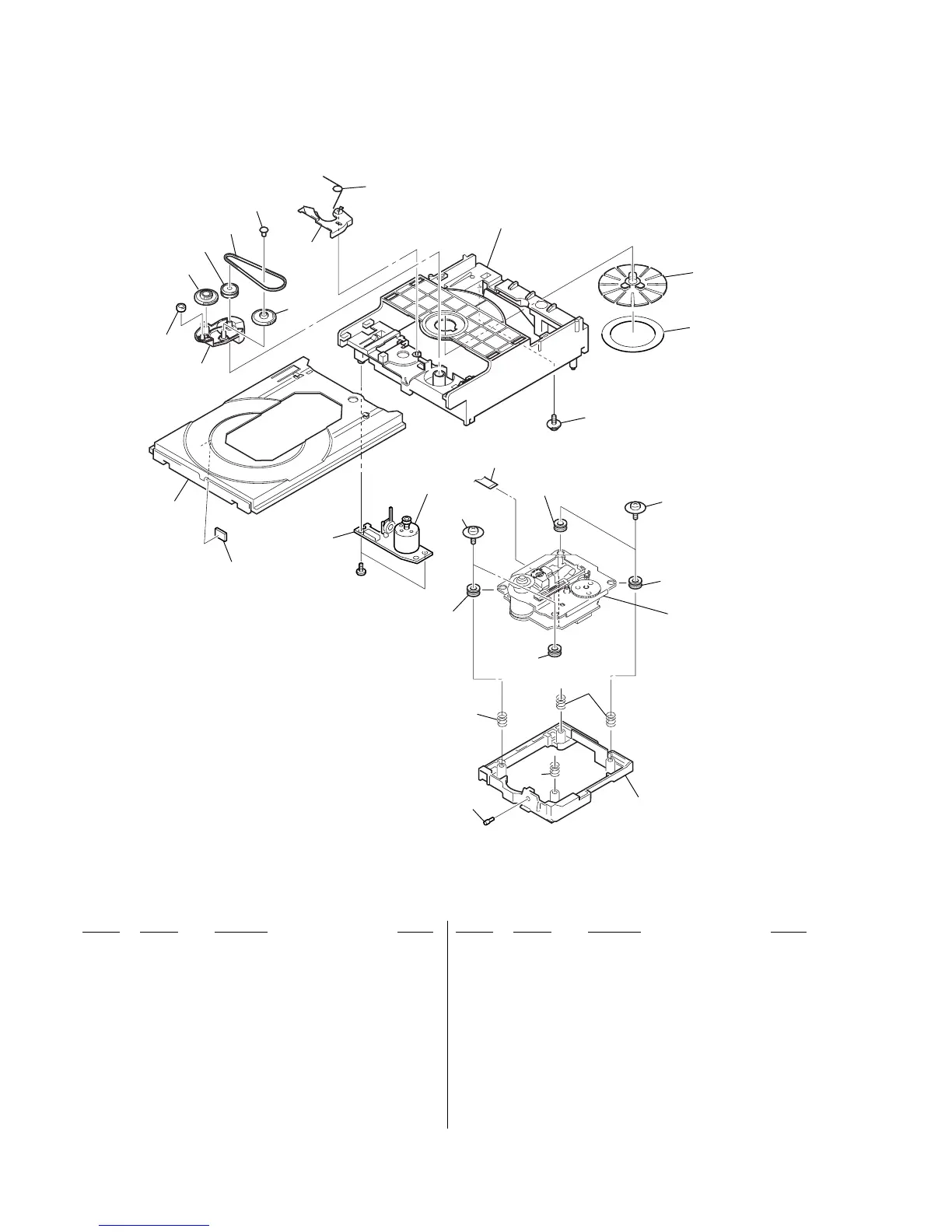

8-4. CD MECHANISM DECK SECTION
M901
#7
151
152
153
154
155
156
157
158
160
159
161
162
172
172
167
165
171
168
169
170
170
170
169
169
166
169
not supplied
not supplied
base unit
(BU-30BD61S
)
