HCD-GP6V

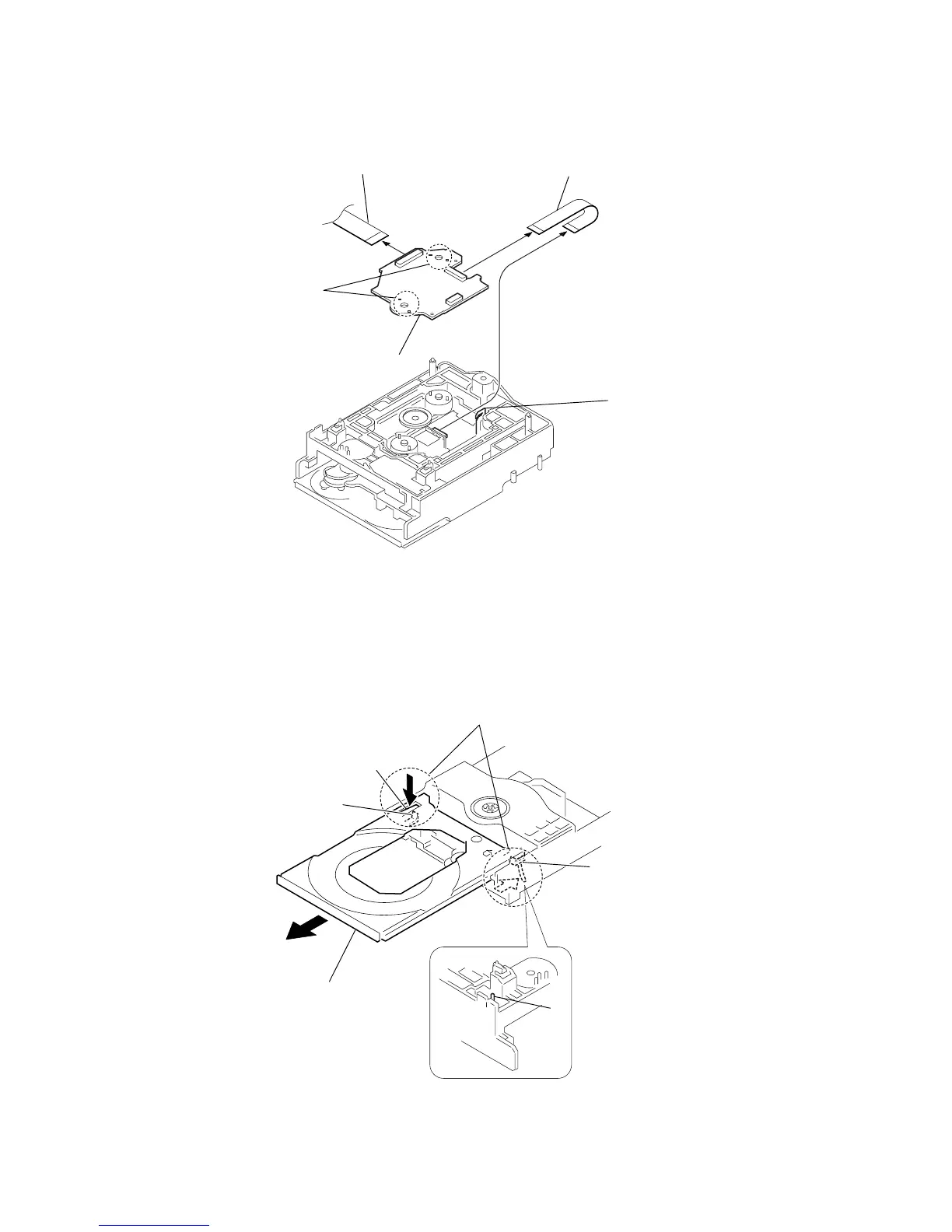

3-9. BD BOARD
2 Remove soldering
from the four points.
5 BD board
1 wire (flat type) 25p (CN103)
4 wire (flat type) 16
p
3 claw
2 tray
1 While pressing the two protrusions A and B to unlock the two claws as shown,
pull the tray in the direction of the arrow C . (Be careful of the claws.)
claw
claw
C
A
B
3-10. TRAY (CDM55D)
