Sony HCD-GP6V - Printed Wiring Board - VCD Section

2525
HCD-GP6V

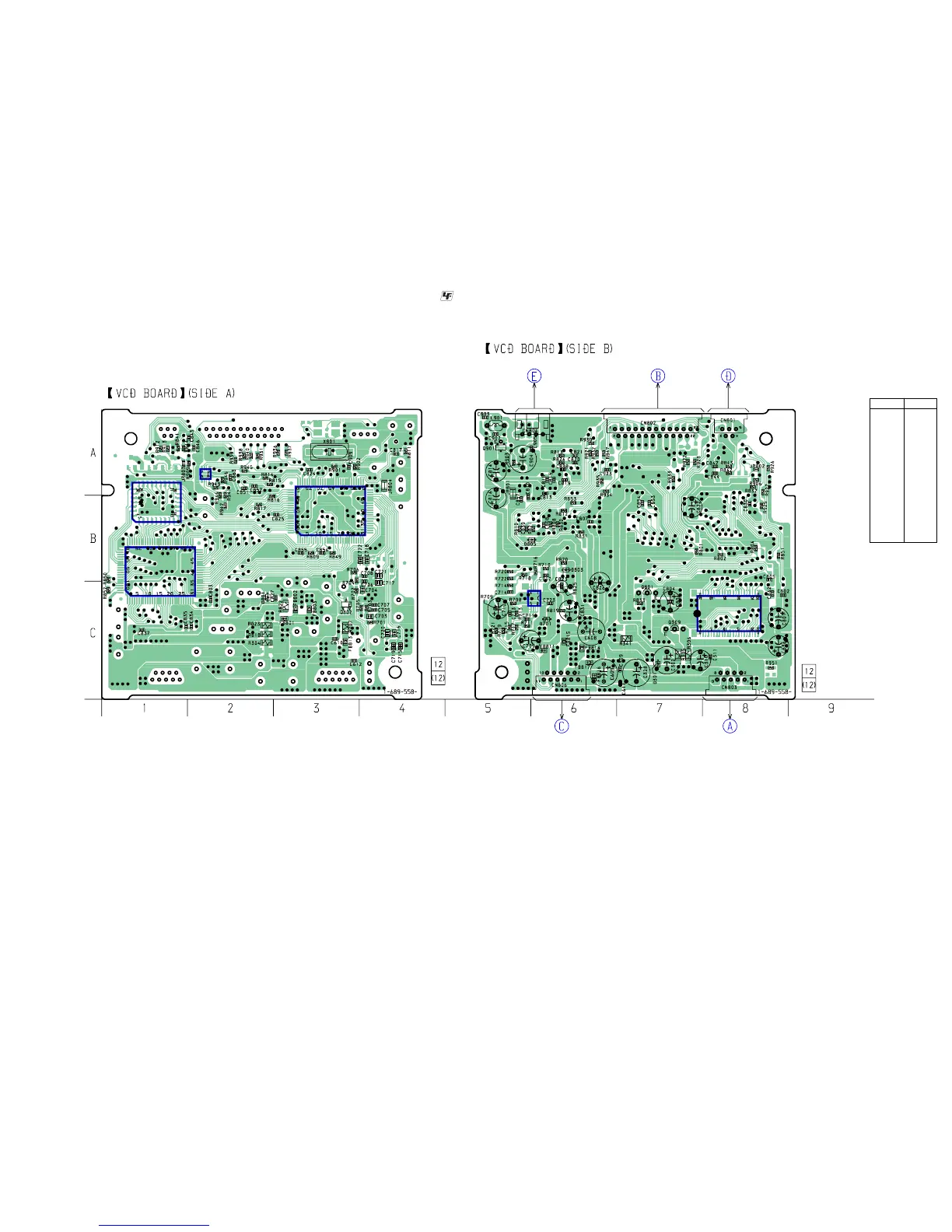

7-4. PRINTED WIRING BOARD — VCD SECTION —
• See page 19 for Circuit Boards Location. :Uses unleaded solder.
IC804
IC701
IC805
IC802
IC801
IC803
TO
V-OUT BOARD
CN202
(Page 32)
TO
MAIN BOARD
CN303
(Page 28)
TO
BD BOARD
CN105
(Page 23)
TO
BD BOARD
CN102
(Page 23)
TO
CONTROL BOARD
CN602
(Page 30)
• Semiconductor
Location
Ref. No. Location
D301 C-7
D701 C-6
D801 C-2
D803 B-6
D805 B-5
IC701 C-6
IC801 B-1
IC802 B-3
IC803 B-1
IC804 C-8
IC805 A-2
Q309 C-7
Q801 C-7
Q802 C-3
Q901 A-5
