13

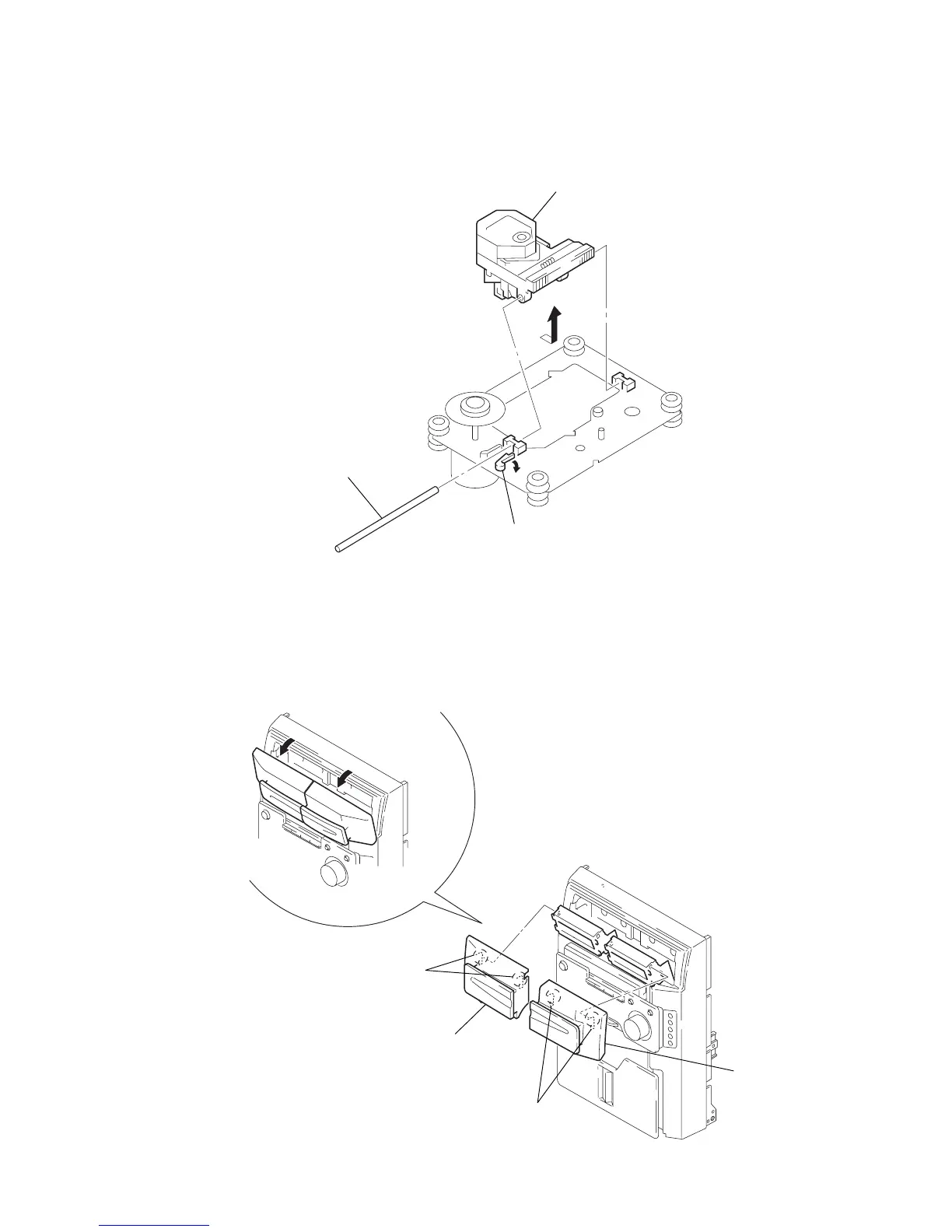

3-12. OP BASE ASSY
(KSM-213BFN)
3-13. CASSETTE LID ASSY (A) / (B)
2 sled shaft
1 Slide the lever
in the direction of arrow
A .
3 Remove the optical pick-up
(KSM-213BFN) in the directio
n
of arrow B .
A
B
5 cassette li
d
assy (B)
3 cassette lid
assy (A)
2 two claws
4 two claws
1 Open the cassette lid
assy (A)/(B).
