Sony HCD-MG110 - Printed Wiring Board - TC Section

HCD-MG110/MG310AV
3232
TC BOARD
1-680-807-
11
(11)
E
E
G
MAIN BOARD
CN311
HP101
PB HEAD
(DECK A)
1
5
HRPE101
REC/PB/ERASE
HEAD
(DECK B)
1
4
7
5
E
E
E
B
C
D
A
1 2 3 4 5 6 7

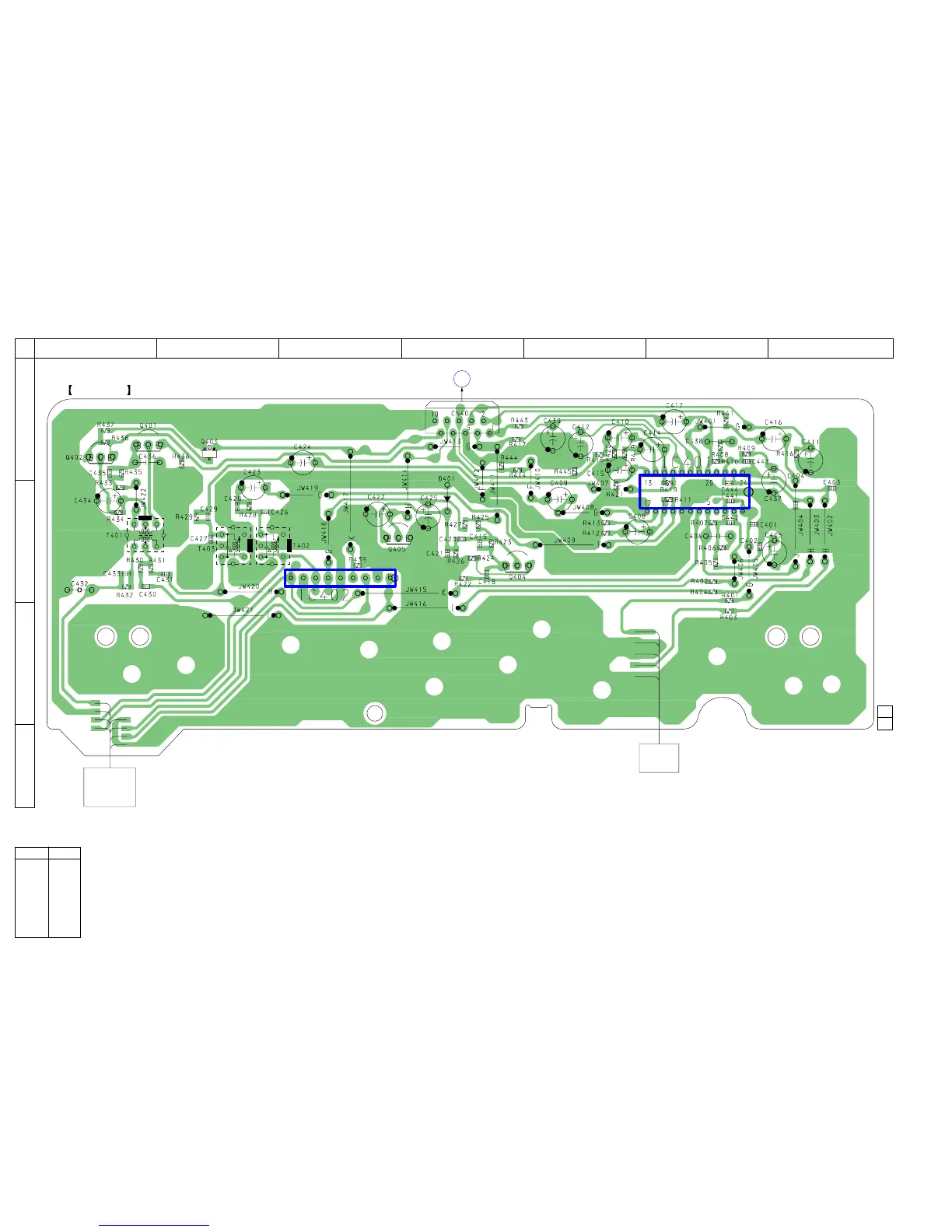

7-11. PRINTED WIRING BOARD – TC Section – • See page 26 for Circuit Boards Location.
• Semiconductor
Location
Ref. No. Location
D401 B-4
IC401 B-6
IC402 B-3
Q401 A-1
Q402 A-1
Q403 A-2
Q404 B-4
Q405 B-3
(Page 38)
