Sony HCD-MG110 - MAIN Board; Back Panel, DC Fan (M391) (Australian Model)

HCD-MG110/MG310AV
9

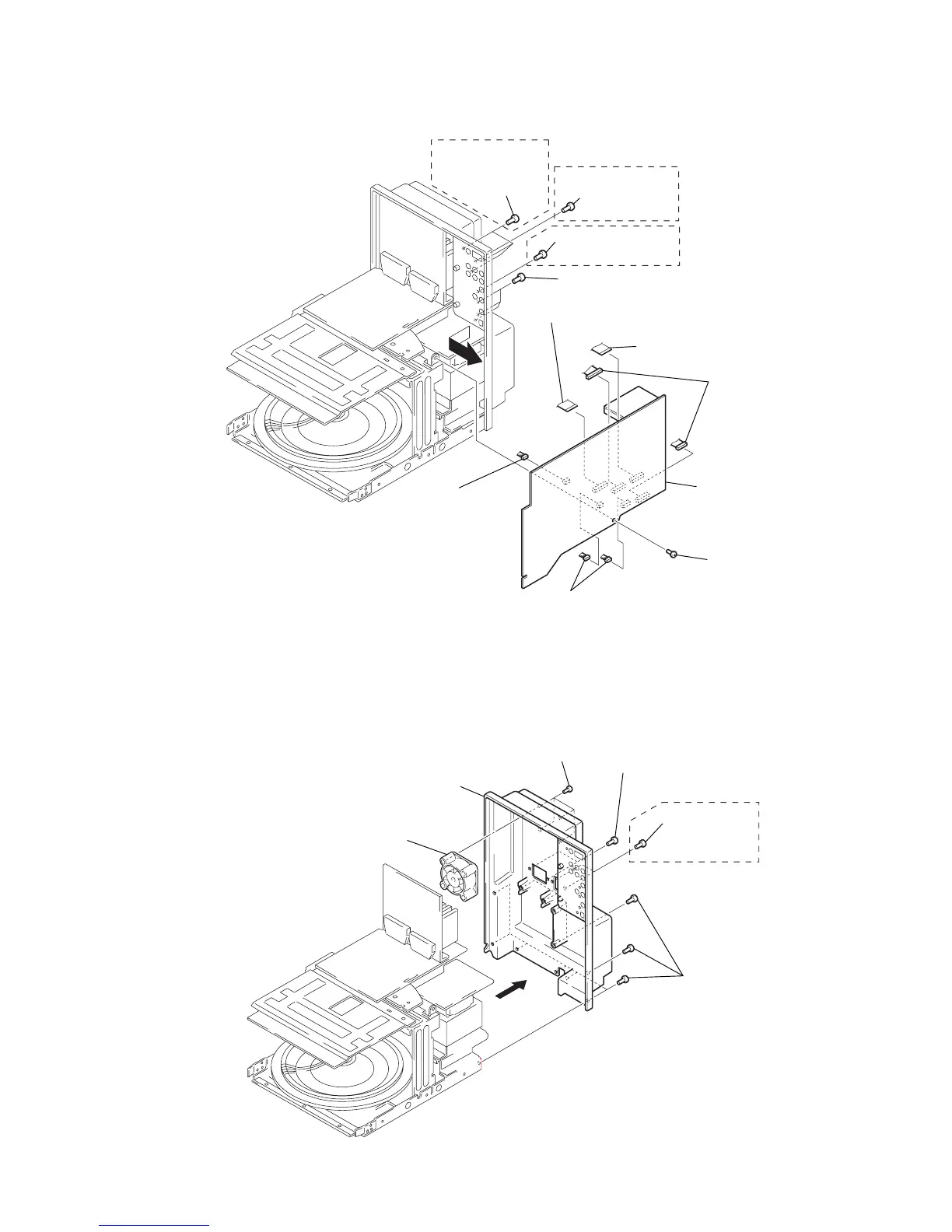

3-4. MAIN BOARD
3-5. BACK PANEL, DC FAN (M391) (Australian model)
3 three screws
(BVTP3 × 10)
3 three screws
(BVTP3 × 10)
3 screw (BVTP3 × 10)
3 screw
(BVTP3 × 10)
MG310AV
MG310AV
MG110
4 screw
(BVTP3 × 8)
5 MAIN board
1 wire (flat type) (21 core)
(CN303)
1 wire (flat type) (18 core)
(CN309)
2 two connectors
(CN304, 903)
2 two connectors
(CN305, 317)
2 connector
(CN313)
5 back panel
1 two screws
(BVTP3
× 10)
1 two screws
(BVTP3
× 10)
1 eleven screw
s
(BVTP3 × 10)
MG310AV
3 four screws
(BVTP3
× 10)
(Australian model)
4 DC fan (M391)
(Australian model)
