Sony HCD-MG110 - Schematic Diagram - MAIN Section (3;4)

HCD-MG110/MG310AV
3636
(CS, CND, MX)

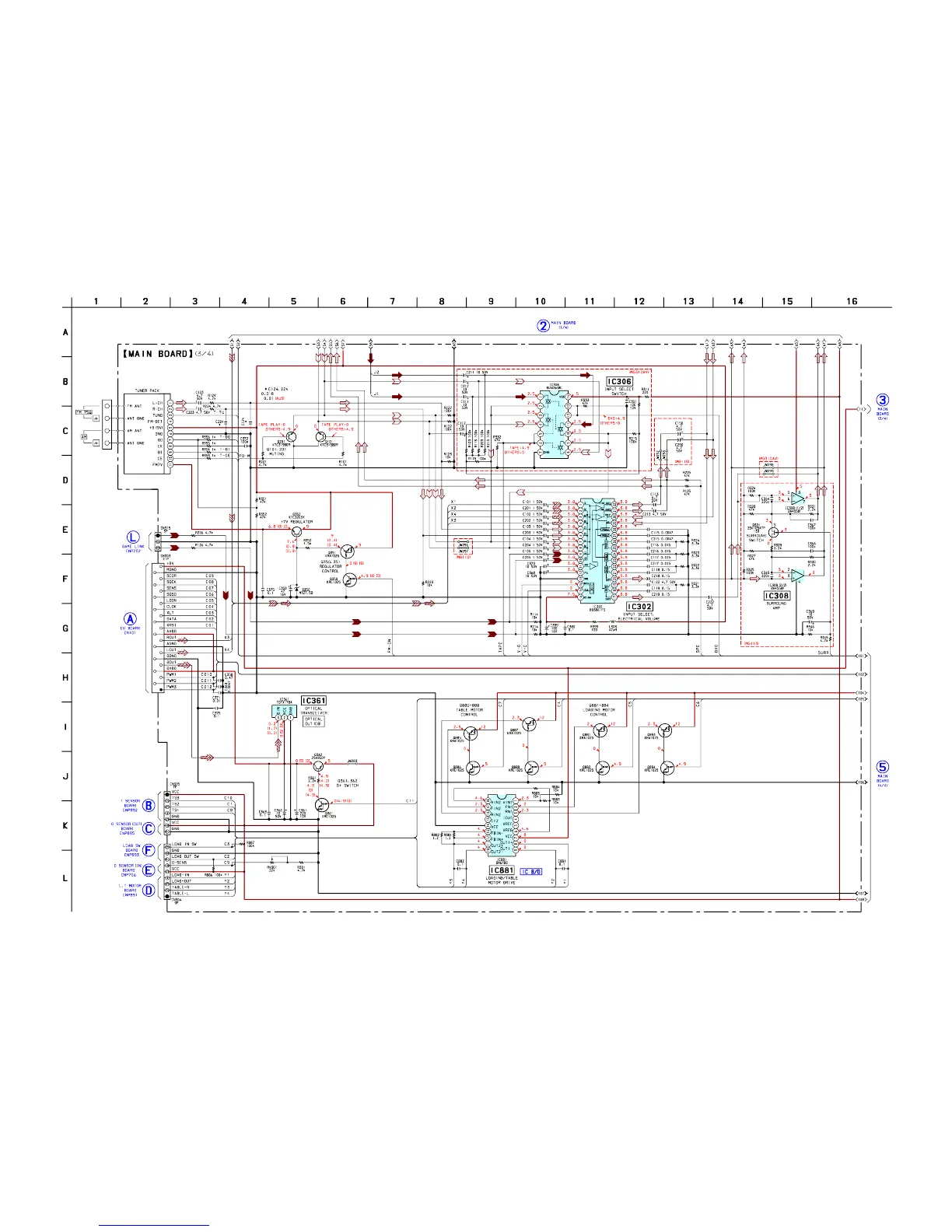

7-15. SCHEMATIC DIAGRAM – MAIN Section (3/4) – • See page 39 for IC Block Diagram.
• Voltages and waveforms are dc with respect to ground
under no-signal (detuned) conditions.
no mark : FM
( ) : CD PLAY
[ ] : TAPE PLAY
(Page 43)
(Page 28)
(Page 31)
(Page 31)
(Page 31)
(Page 31)
(Page 31)
(Page 34)
(Page 35)
(Page
37)
Ver 1.3
