Sony HCD-MG110 - Schematic Diagram - CONTROL Section

Sony HCD-MG110
74 pages
Save Page as PDF
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...
HCD-MG110/MG310AV
4545

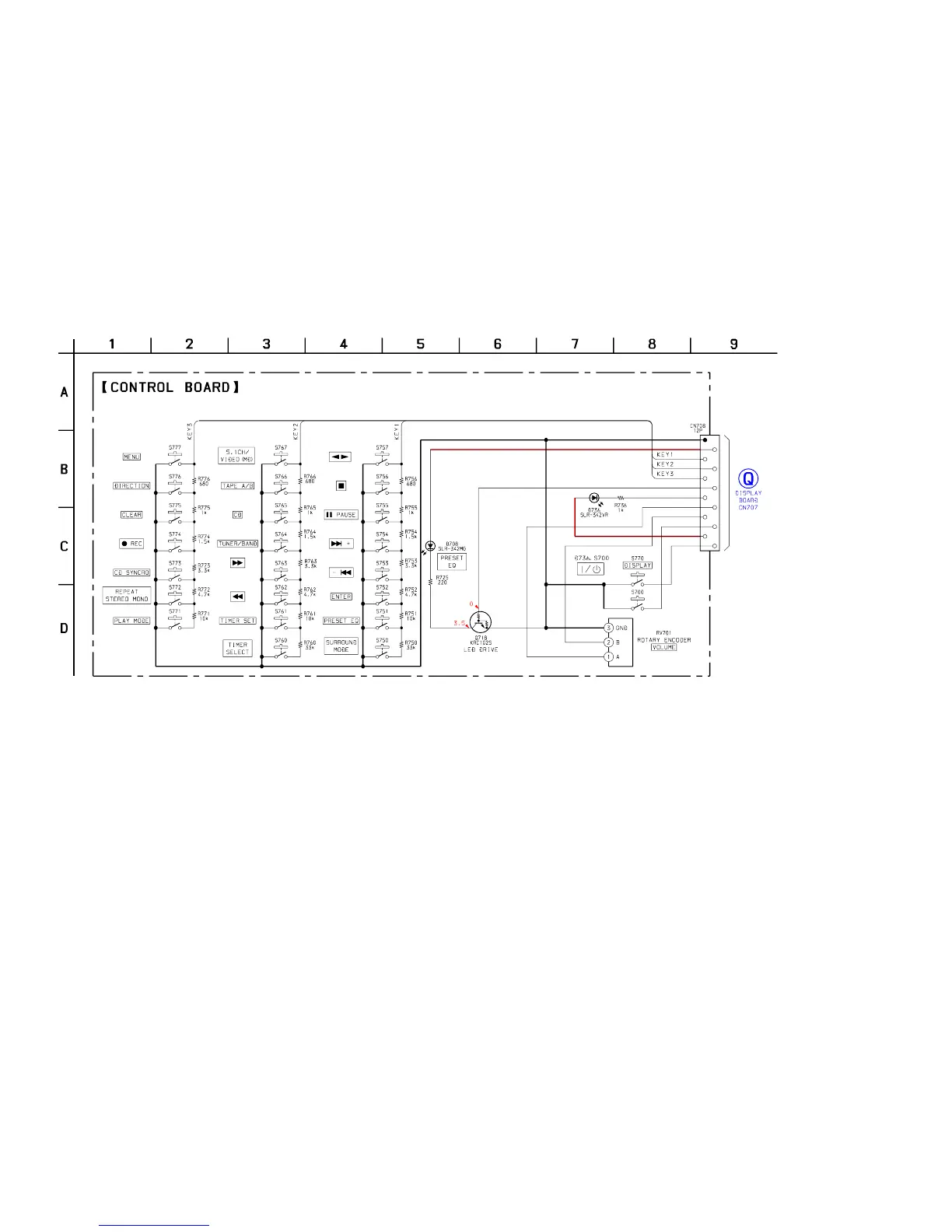

7-23. SCHEMATIC DIAGRAM – CONTROL Section –
• Voltages and waveforms are dc with respect to ground
under no-signal (detuned) conditions.
no mark : FM
(Page 43)
