Sony HCD-MG110 - Upper Cover; Front Block Assy

HCD-MG110/MG310AV
8

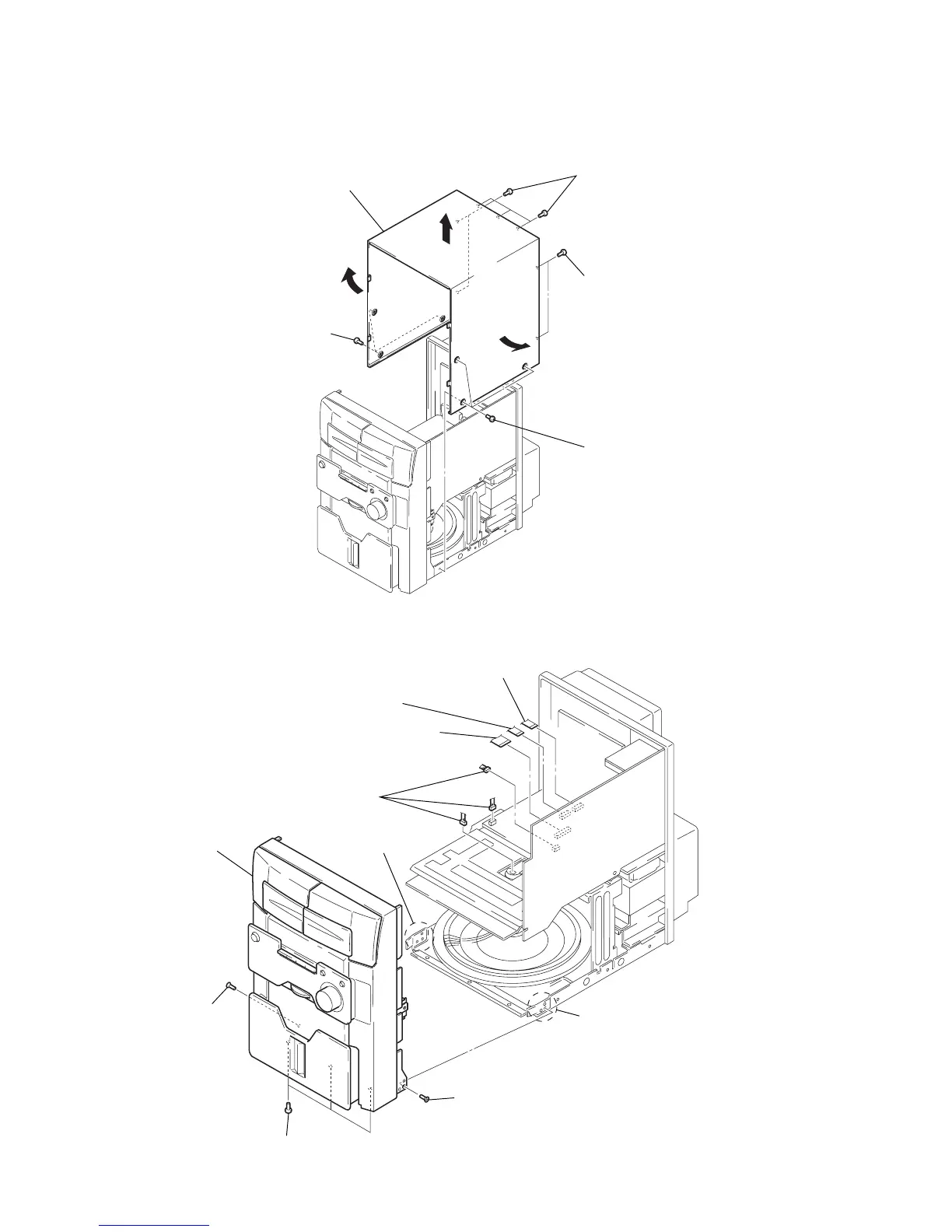

3-3. FRONT BLOCK ASSY
Note: Follow the disassembly procedure in the numerical order given.
3-2. UPPER COVER
1 three screws
(BVTP3
× 8)
2 five screws
(BVTP3
× 8)
2 two screws
(BVTP3
× 8)
3 upper cover
1 three screws
(BVTP3
× 8)
5 two bosses
4 screw (KTP3 × 8)
3 three screws
(BVTP3 × 8)
4 screw (KTP3 × 8)
6 front block assy
5 two bosses
2 three connectors
(CN310, 503, 803)
1 wire (flat type) (10 core)
(CN311)
1 wire (flat type) (11 core)
(CN312)
1 wire (flat type) (17 core)
(CN301)
Ver 1.1
