HCD-NXM2D

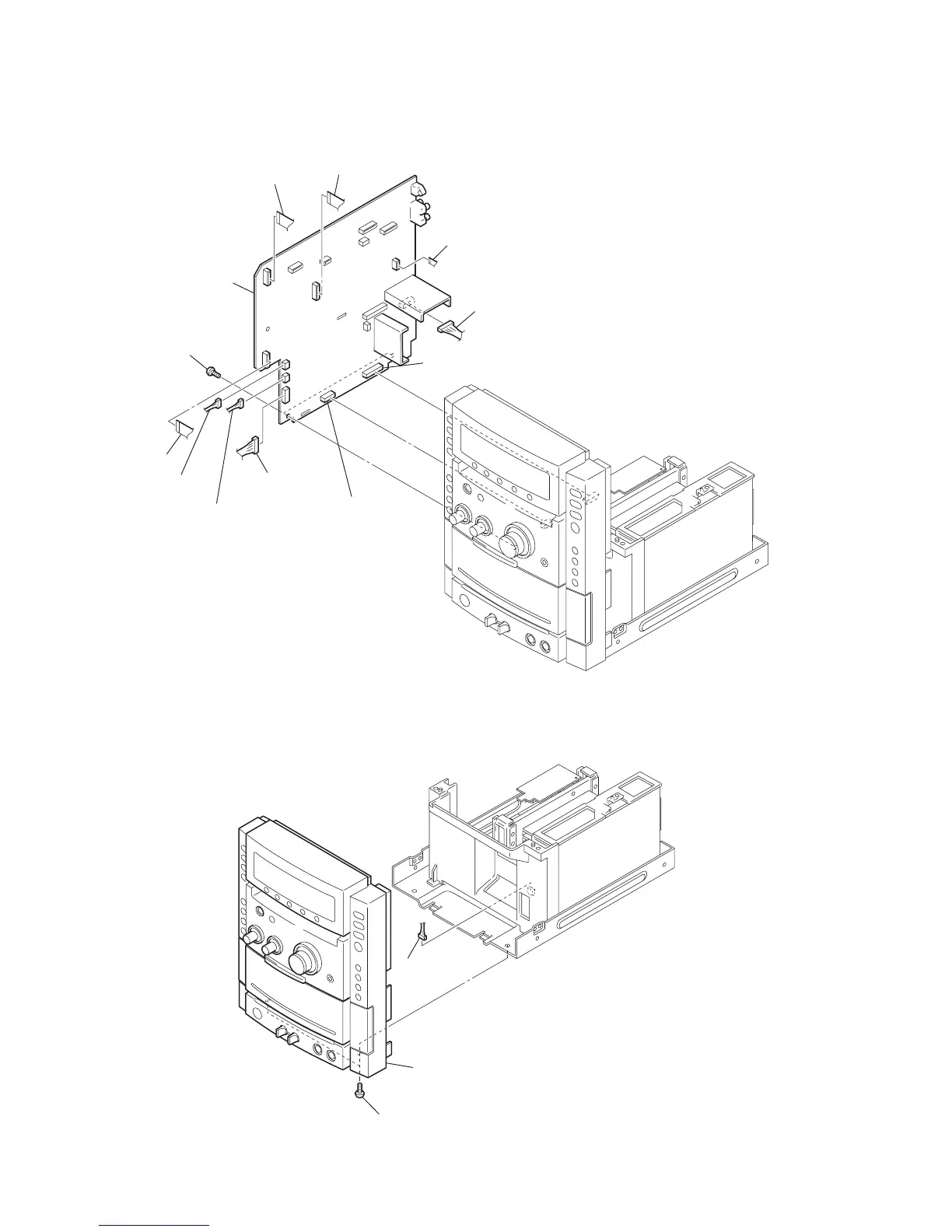

3-5. MAIN BOARD
1 two screws
(sumitite (B3))
2 connector
(CN102)
3 connector
(CN103)
4 MAIN board
5 CNP303
6 connector
(CN108)
7 connector
(CN301)
8 connector
(CN302)
9 connector
(CN101)
0 CNP112
qa CNP110
qs CNP109
3-6. FRONT PANEL
1 two screws
(+BVTP 3
X10 )
2 front panel section
3 connector
(CN505)
