Sony HCD-NXM2D - Chassis Section View

78
HCD-NXM2D

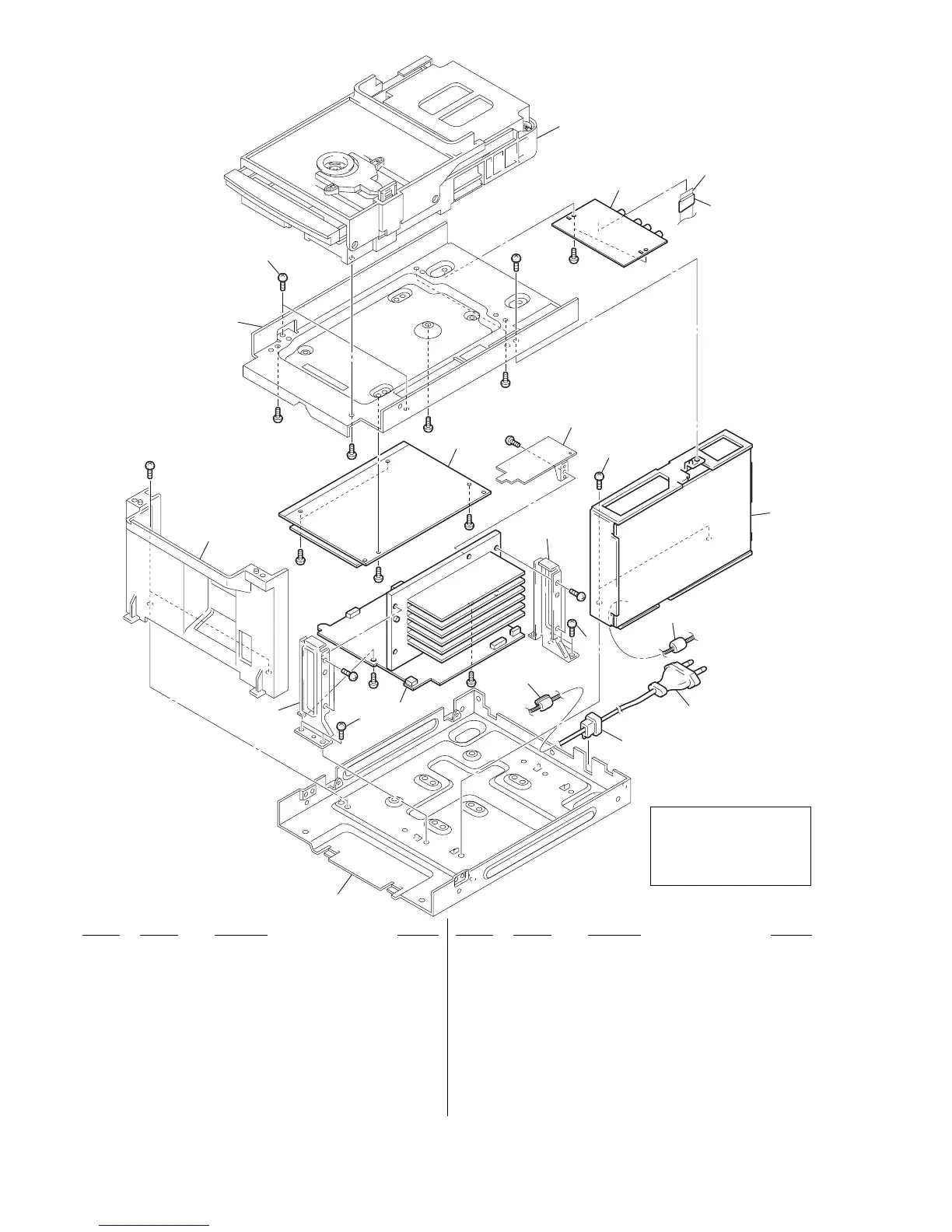

8-3. CHASSIS SECTION
Ref. No. Part No. Description Remarks
Ref. No. Part No. Description Remarks
not supplied
not supplied
not supplied
not supplied
101
102
103
104
105
108
106
CDM81A-DVBU60
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
not supplied
not supplied
#1
#1
#1
#1
#1
111
not supplied
108
108
108
109
110
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
101 A-1063-581-A FRONT AMP BOARD, COMPLETE (TH)
101 A-4752-542-A FRONT AMP BOARD, COMPLETE
(E3, E15, SP, MY)
101 A-4752-564-A FRONT AMP BOARD, COMPLETE (EA)
101 A-4752-583-A FRONT AMP BOARD, COMPLETE (E2)
0 102 1-468-818-11 REGULATOR, SWITCHING
0 103 1-775-786-21 CORD, POWER (EA)
0 103 1-777-071-53 CORD, POWER (SP, MY)
0 103 1-824-818-11 CORD, POWER (WITH CONNECTOR) (TH)
0 103 1-827-226-11 CORD, POWER (E2, E3, E15)
* 104 3-703-244-00 BUSHING (2104), CORD (EA, SP, MY, TH)
104 3-703-571-11 BUSHING (S) (4516), CORD (E2, E3, E15)
105 A-1063-666-A DMB07 BOARD, COMPLETE (TH)
105 A-4752-550-A DMB07 BOARD, COMPLETE (EXCEPT TH)
106 A-4752-312-A VIDEO BOARD, COMPLETE
108 3-970-608-01 SUMITITE (B3), +BV
109 1-500-497-11 FILTER, CLAMP (FERRITE CORE)
110 1-543-830-11 CLAMP, SLEEVE FERRITE
111 1-500-657-11 CORE, FERRITE
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S
