Sony HCD-NXM2D - DVD Mechanism Deck Section-2 (CDM81 A-DVBU60)

80
HCD-NXM2D

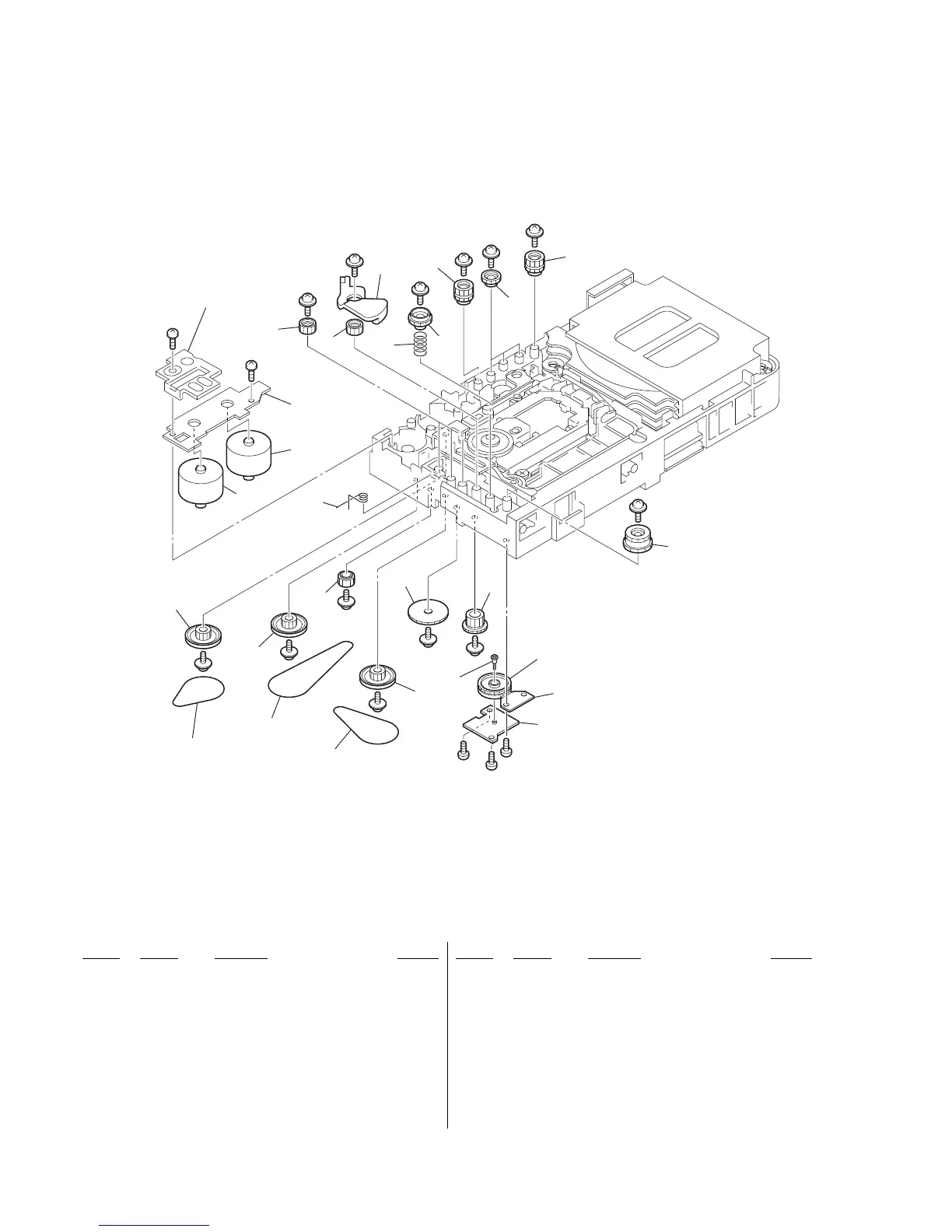

8-5. DVD MECHANISM DECK SECTION-2
(CDM81A-DVBU60)
Ref. No. Part No. Description Remarks
Ref. No. Part No. Description Remarks
not supplied
not supplied
S771
not supplied
not supplied
201
202
203
203
204
209
214
215
203
214
210
206
207
208
208
208
212
213
211
205
#3
#3
#3
#4
#4
#4
#4
#4
#4
#4
M761
M762
#3
#3
#4
#4
#4
#4
#4
#4
201 4-251-870-01 BELT (BU)
202 4-251-869-01 BELT (MAIN TRAY)
203 4-251-841-01 GEAR (SUB TRAY 1)
204 4-251-873-01 SPRING (MODE), COMPRESSION
205 4-239-618-02 SCREW (+PWH, 2X6), STEP TAPPING
206 4-251-872-01 SPRING (LEVER), TORSION
207 4-251-868-01 BELT (SUB TRAY)
208 4-251-853-01 PULLEY (BU)
209 4-251-834-01 LEVER (MAIN TRAY)
210 4-251-852-01 GEAR (MAIN TRAY 3)
211 4-251-854-01 GEAR (BU1)
212 4-251-850-01 GEAR (MAIN TRAY 1)
213 4-251-856-01 GEAR (BU2)
214 4-251-842-01 GEAR (SUB TRAY 2)
215 4-251-851-01 GEAR (MAIN TRAY 2)
M761 A-4713-174-A MOTOR (81) ASSY (LD/ST MOTOR)
M762 A-4713-174-A MOTOR (81) ASSY (BU U/D MOTOR)
S771 1-478-552-11 ENCODER, ROTARY
#3 7-685-534-19 SCREW +BTP 2.6X8 TYPE2 N-S
#4 7-685-902-21 SCREW +PTPWH 2.6X8 (TYPE2)
