HCD-NXM2D

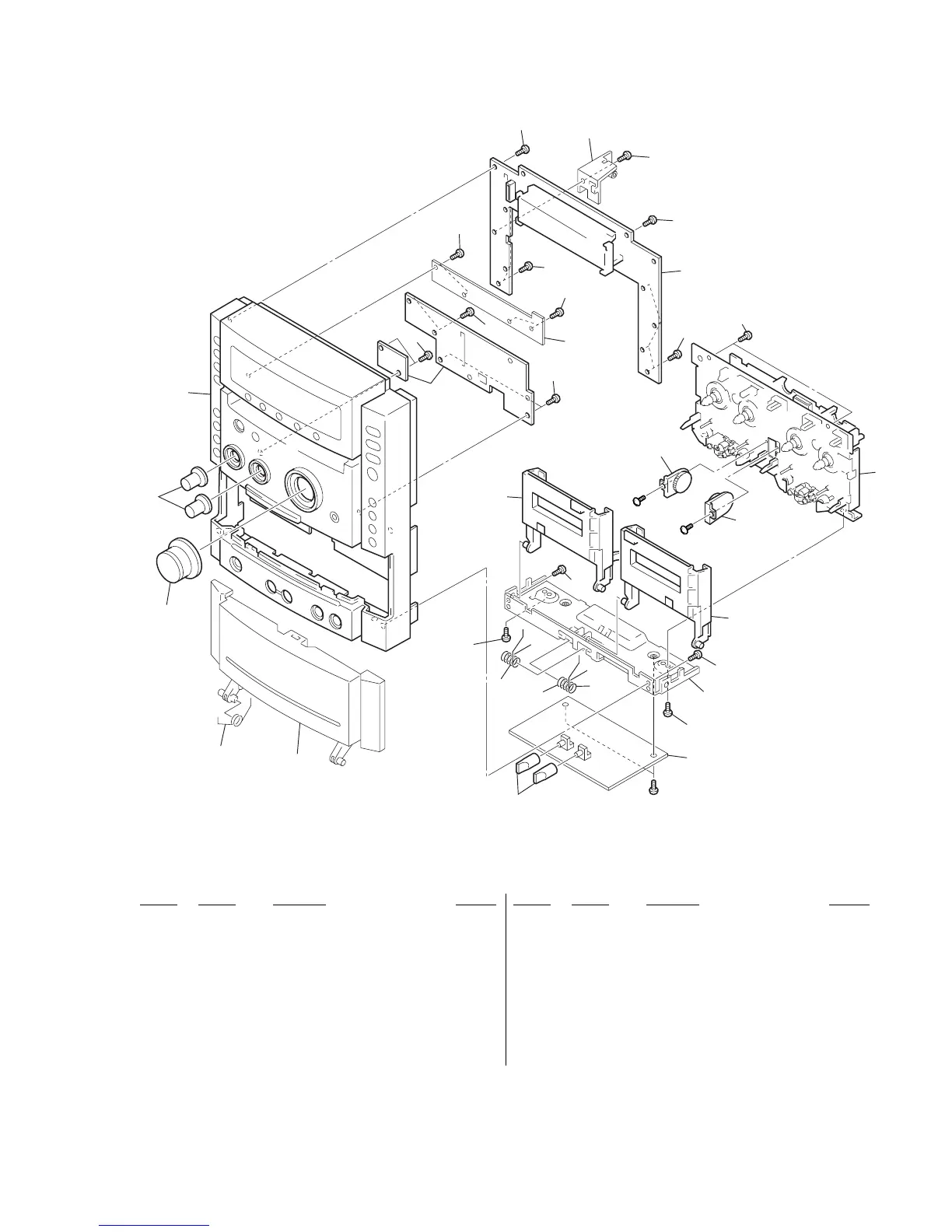

8-2. FRONT PANEL SECTION
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
not supplied
not supplied
51
52
53
54
54
56
57
57
57
not supplied
57
57
57
57
57
57
not supplied
57
58
57
59
60
61
57
57
55
55
not supplied
#1
#2
#2
not supplied
63
62
64
51 4-252-535-11 KNOB (VOL)
52 4-252-536-11 KNOB (B/T)
53 X-4956-320-1 PANEL ASSY, FRONT
54 4-215-062-01 DAMPER
55 4-240-965-01 SCREW 2.6X3 +P, S-TITE
56 A-1063-580-A VOL BOARD, COMPLETE (TH)
56 A-4752-315-A VOL BOARD, COMPLETE (EXCEPT TH)
57 4-951-620-01 SCREW (2.6X8), +BVTP
58 A-1063-578-A FL BOARD, COMPLETE (TH)
58 A-4752-675-A FL BOARD, COMPLETE (EXCEPT TH)
59 1-796-880-11 DECK, MECHANISM (W)
60 X-4956-197-1 HOLDER (A) (TC) ASSY
61 X-4956-198-1 HOLDER (B) (TC) ASSY
62 4-252-529-01 SPRING (HA)
63 4-252-530-01 SPRING (HB)
64 4-238-628-21 MIC KNOB
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S
#2 7-685-853-01
SCREW +BVTT 2X6 (S)
