Sony HCD-NXM2D - External Chassis Components

8
HCD-NXM2D

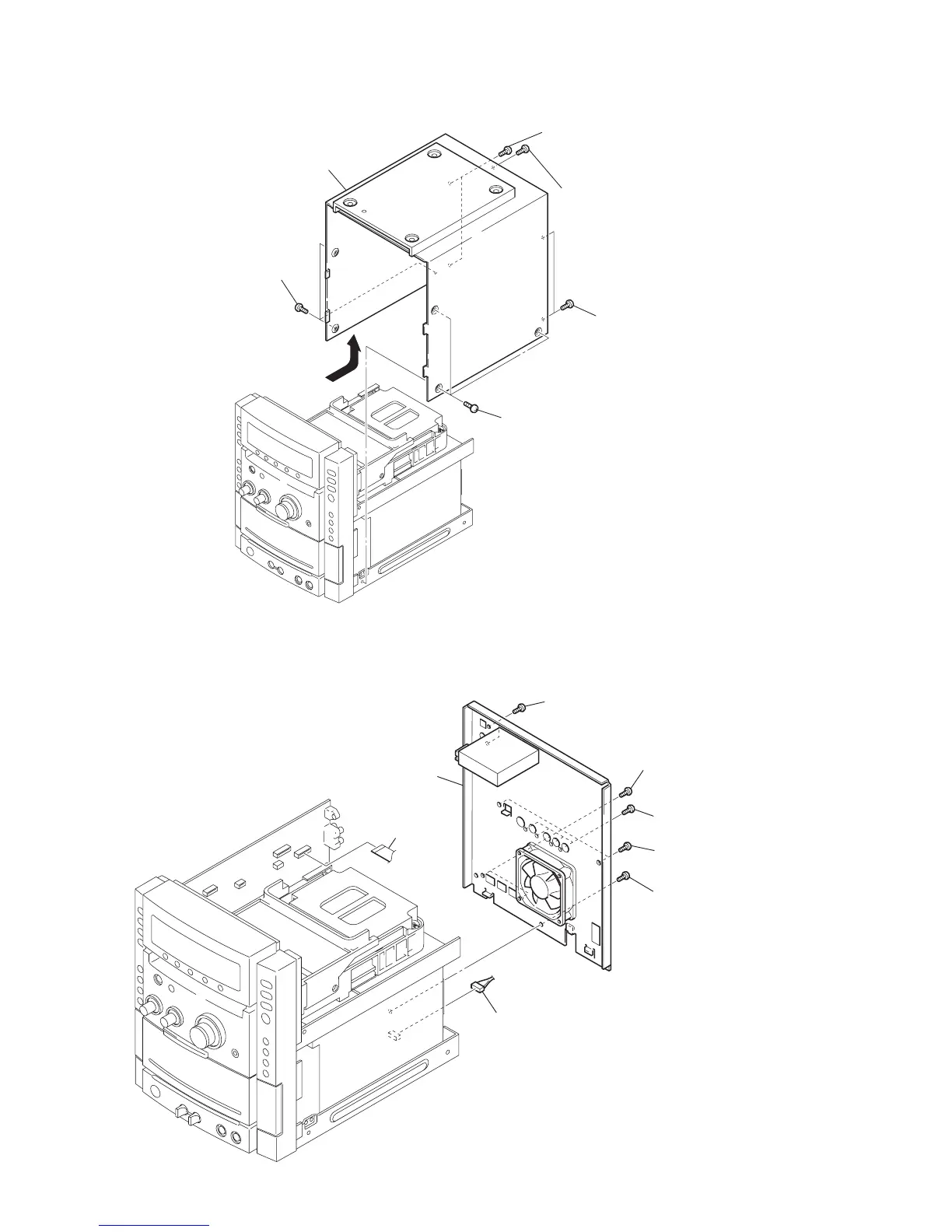

Note: Follow the disassembly procedure in the numerical order given.
3-2. CASE
3-3. BACK PANEL
1 three screws
(CASE 3 TP2)
2 three screws
(CASE 3 TP2)
3 two screws
(sumitite (B3)
)
4 two screws
(sumitite (B3))
5 screw
(sumitite (B3))
6
7
CASE
1 screw
(+BVTP 3
X 8)
2 two screws
(+BVTP 3 X 8)
3 four screws
(+BVTP 3 X 8)
4 two screws
(+BVTP 3 X 8)
5 two screws
(+BVTP 3 X 8)
6 back panel section
7 CNP204
8 connector
(CN506)
