Sony HCD-NXM2D - DVD Mechanism Views

79
HCD-NXM2D

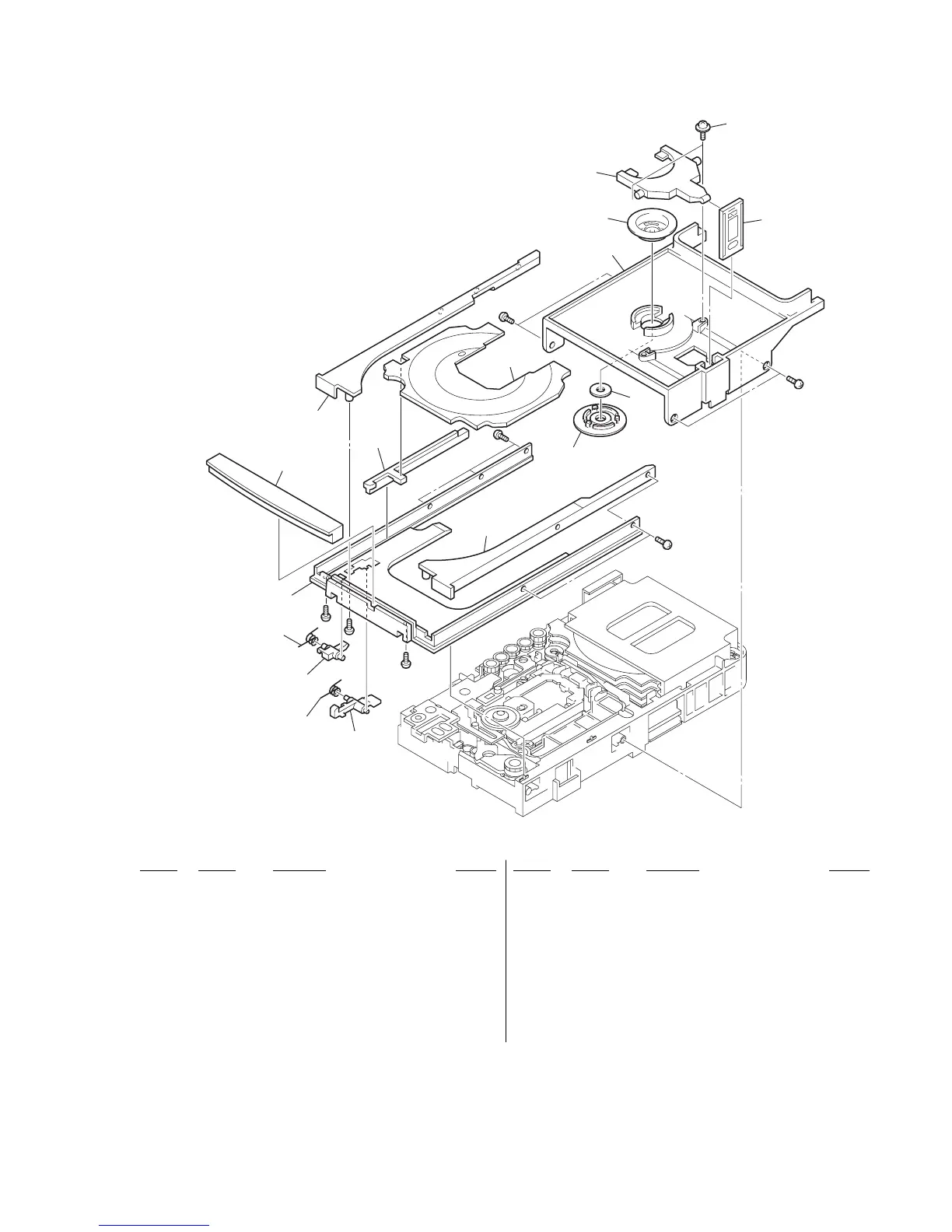

8-4. DVD MECHANISM DECK SECTION-1
(CDM81A-DVBU60)
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
151
152
155
153
154
156
157
158
159
160
161
162
163
164
165
166
167
#3
#3
#5
#5
#5
#3
#3
151 4-251-849-01 LEVER (SW2)
152 4-251-991-01 SPRING (SW2), TORSION
153 4-251-860-01 LEVER (LOCK)
154 4-251-867-01 SPRING (LOCK), TORSION
155 4-251-828-01 TRAY (MAIN)
156 4-252-533-11 PANEL, LOADING
157 4-251-857-01 COVER (R)
158 4-251-830-01 SLIDER (ST)
159 4-251-858-01 COVER (L)
160 4-251-829-02 TRAY (SUB)
161 X-4954-450-1 PULLEY (240) ASSY
162 3-053-844-01 YOKE
163 4-251-821-02 BRACKET (TOP)
164 4-233-594-01 PULLEY (B) (DVD), CHUCKING
165 4-251-824-01 LIFTER
166 4-985-672-01 SCREW (+PTPWHM2.6), FLOATING
167 4-251-822-01 JOINT (LIFTER)
#3 7-685-534-19 SCREW +BTP 2.6X8 TYPE2 N-S
#5 7-685-102-19 SCREW +P 2X4 NON-SLIT TYPE 2
