Sony HCD-SA30 - Disassembly Procedures; Case Removal Procedure

10
HCD-SA30
SECTION 3
DISASSEMBLY
Note: Follow the disassembly procedure in the numerical order given.

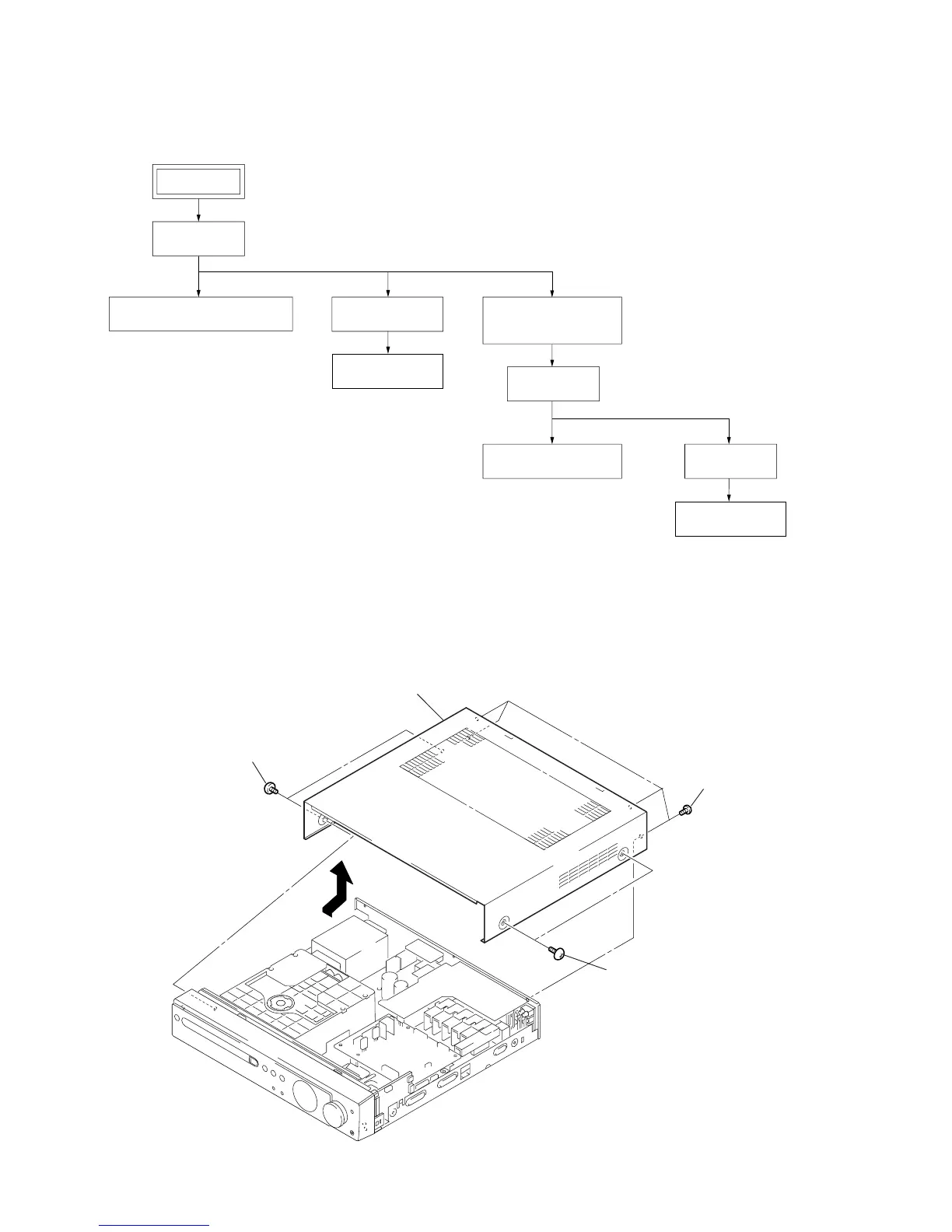

3-1. Case
1 two screws
(CASE 3 TP2)
2 two screws
(CASE 3 TP2)
4 case
3 four screws
(+BVTP3
× 8
)
CASE
DVD MECHANISM
(CDM77A-DVBU20)
HP BOARD, FRONT BOARD
UCOM BOARD
TRAY (AU)
PICK-UP UNIT
MS-128 BOARD BASE UNIT
DMB03 BOARD
SET
• The equipment can be removed using the following procedure.
