Sony HCD-SA30 - HP Board, FRONT Board; UCOM Board

11
HCD-SA30

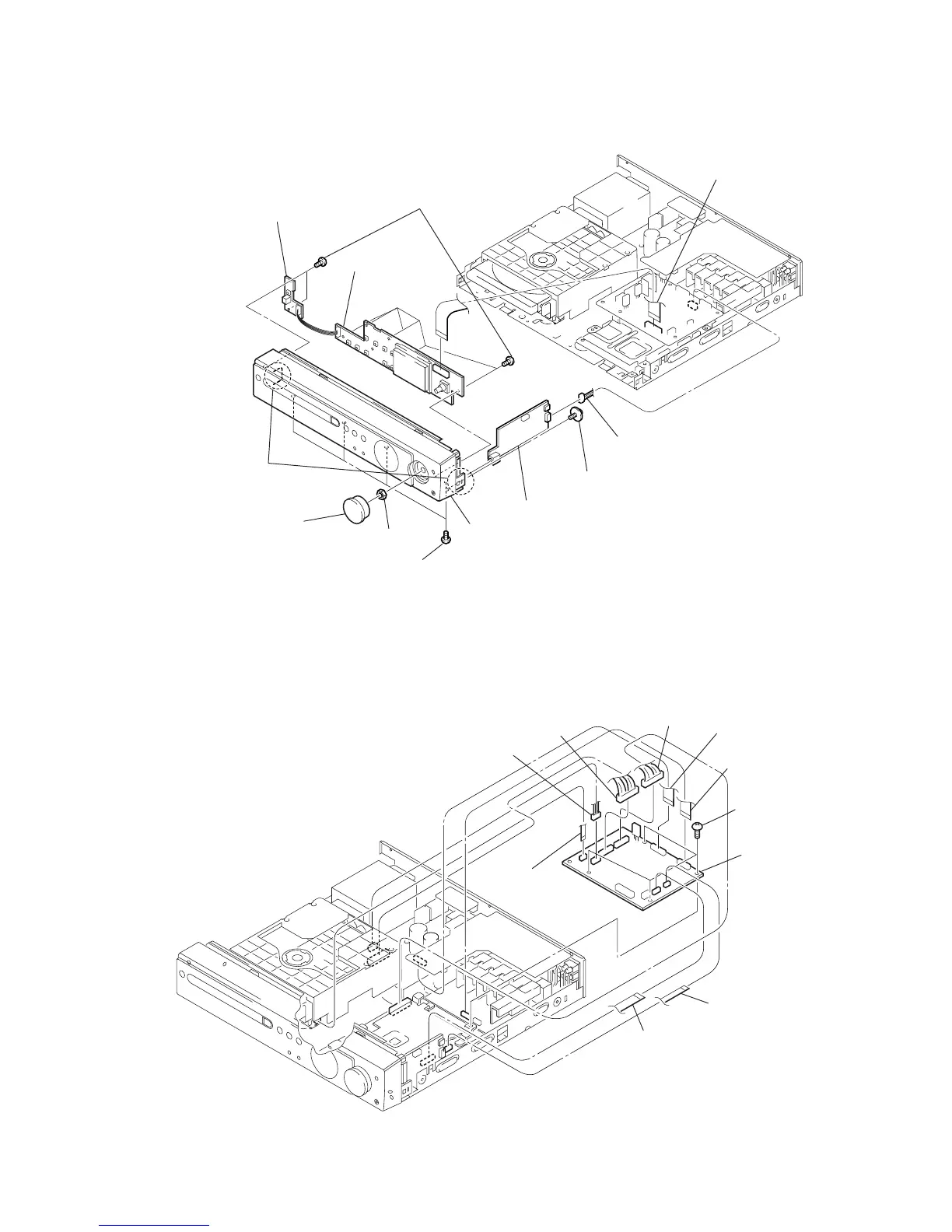

3-2. HP Board, FRONT Board
3-3. UCOM Board
1 connector
(CN881)
qa STANDBY board
qs FRONT board
q; seven screws
(+BVTP2.6
× 8)
3 four screws
(+BVTP3
× 8)
6 screw
(+PTPWHM2.6
× 6)
7 HP board
8 knob volume assy
9 nut
5 front panel section
4 two claws
2 w ire (flat type) 17p (CN801
)
1 connector
(CN512)
2 connector
(CN511)
3 connector
(CN510)
4 w ire (flat type)
5p (CN513)
5 w ire (flat type)
17p or 19p (CN516)
7 w ire (flat type)
5p (CN514)
8 w ire (flat type)
11p (CN515)
6 w ire (flat type)
15p (CN507)
q; UCOM board
9 four screws
(+BVTP3
× 8)
