Sony HCD-SA30 - Printed Wiring Board - AMP Section (SIDE A)

4646

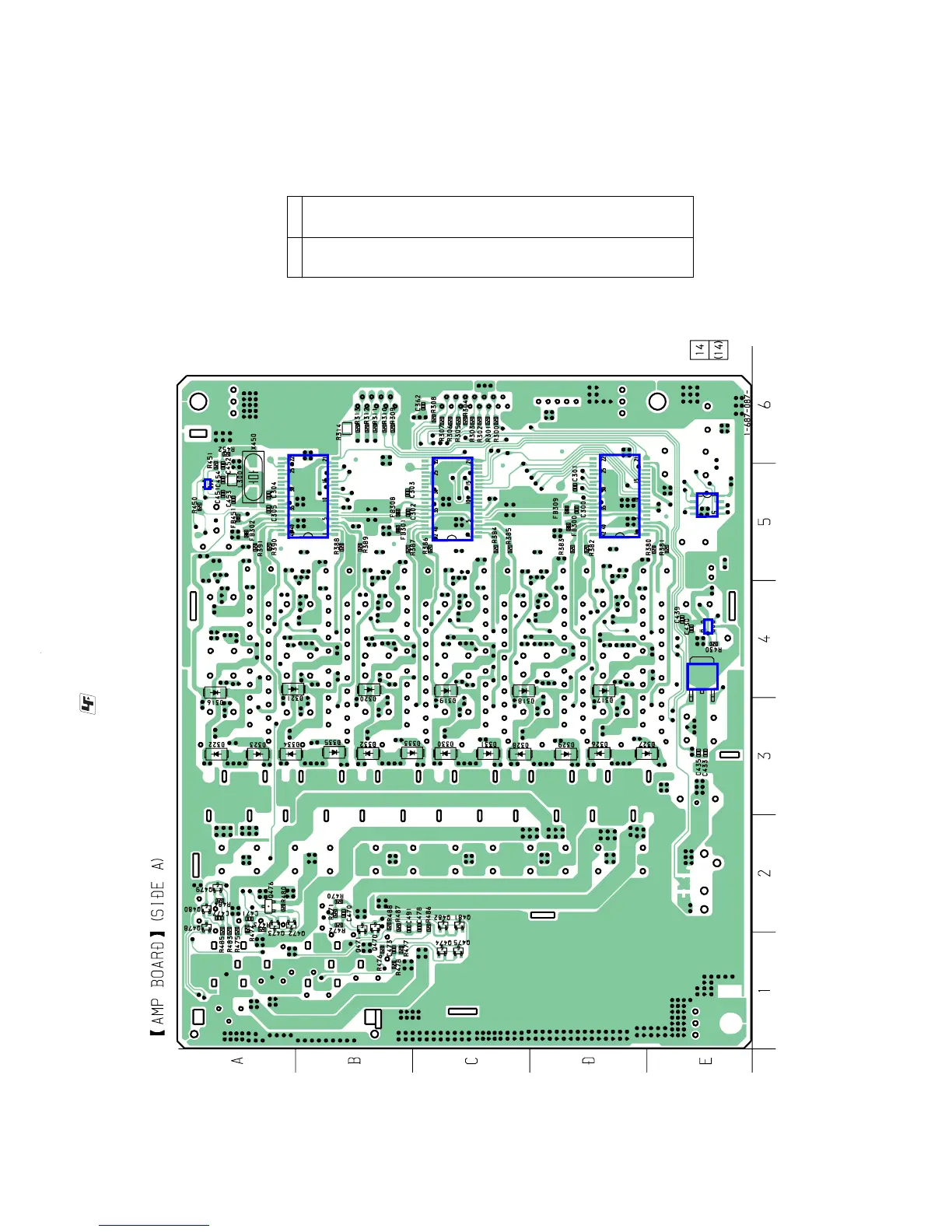

HCD-SA30 5-20. Printed Wiring Board — AMP Section (SIDE A) — • See page 23 for Circuit Boards Location.
• : Uses unleaded solder.
E
1 2 3
13 54
13
54
IC302
IC450
IC301
IC300
IC400
IC432
IC431
• Semiconductor
Location
Ref. No. Location
D316 A-4 D317 D-4 D318 C-4 D319 C-4 D320 B-4 D321 A-4 D322 A-3 D323 A-3 D326 D-3 D327 D-3 D328 C-3 D329 D-3 D330 C-3 D331 C-3 D332 B-3 D333 C-3 D334 A-3 D335 B-3 IC300 D-5 IC301 C-5 IC302 B-5 IC400 E-5 IC431 E-4 IC432 E-4 IC450 A-5 Q470 B-2 Q471 B-2 Q472 A-2 Q473 A-2 Q474 C-1 Q475 C-1 Q476 A-2 Q478 A-2 Q479 A-2 Q480 A-2 Q481 C-2 Q482 C-2
