Sony HCD-SA30 - Printed Wiring Board - PHONES, LOADING Section

5555
HCD-SA30

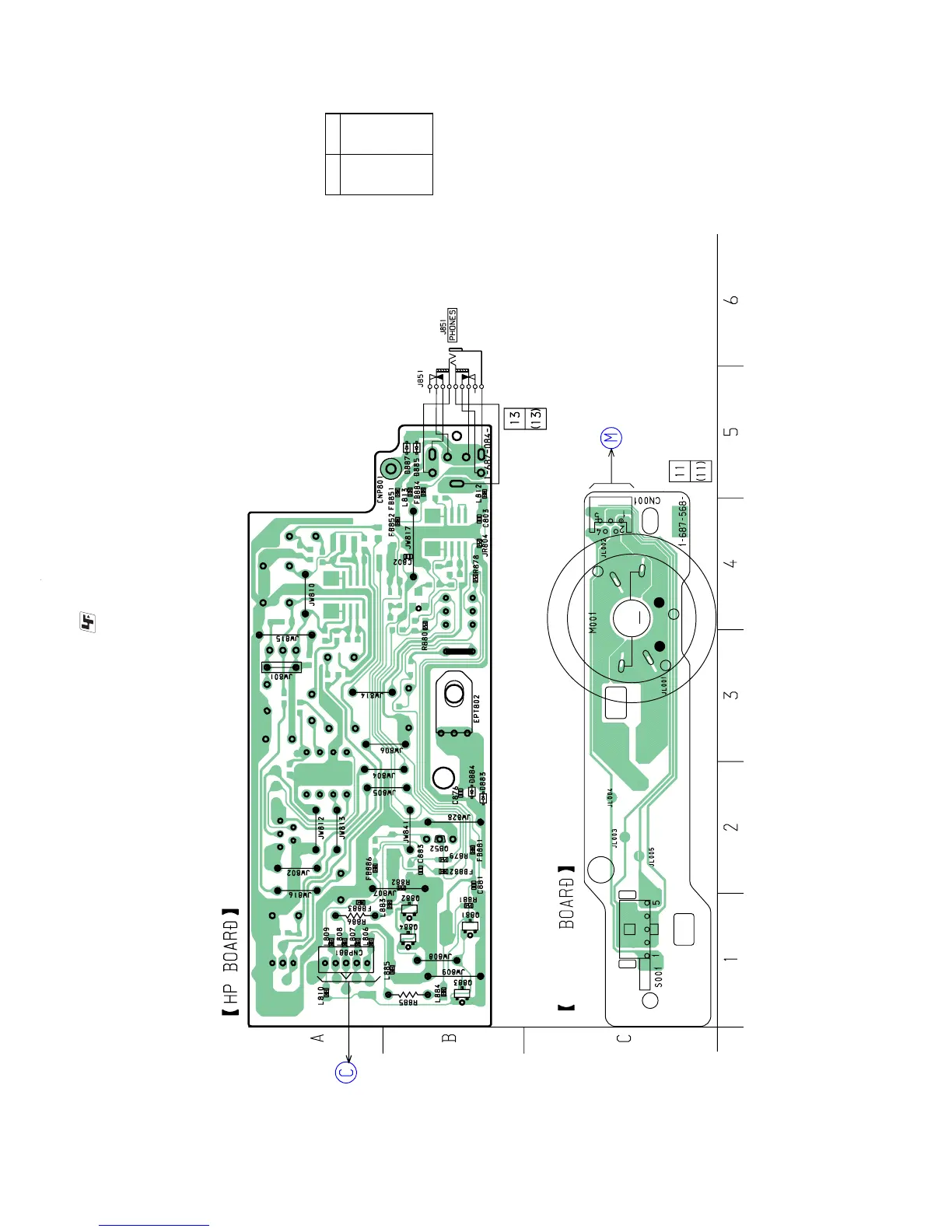

5-29. Printed Wiring Board — PHONES, LOADING Section — • See page 23 for Circuit Boards Location.
• : Uses unleaded solder.
TO
AMP
BOARD
CN400
(Page 47)
(DISC IN/OUT)
(LOADING)
TO
UCOM
BOARD
CN513
(Page 43)
M
MS-128
1 5
E
E
E
E
• Semiconductor
Location
Ref. No. Location
D883 B-2 D884 B-2 D885 B-5 D887 B-5 Q881 B-1 Q882 B-1 Q883 B-1 Q884 B-1
