Sony HCD-SA30 - DVD Mechanism Section (CDM77 A-DVBU20)

86
HCD-SA30

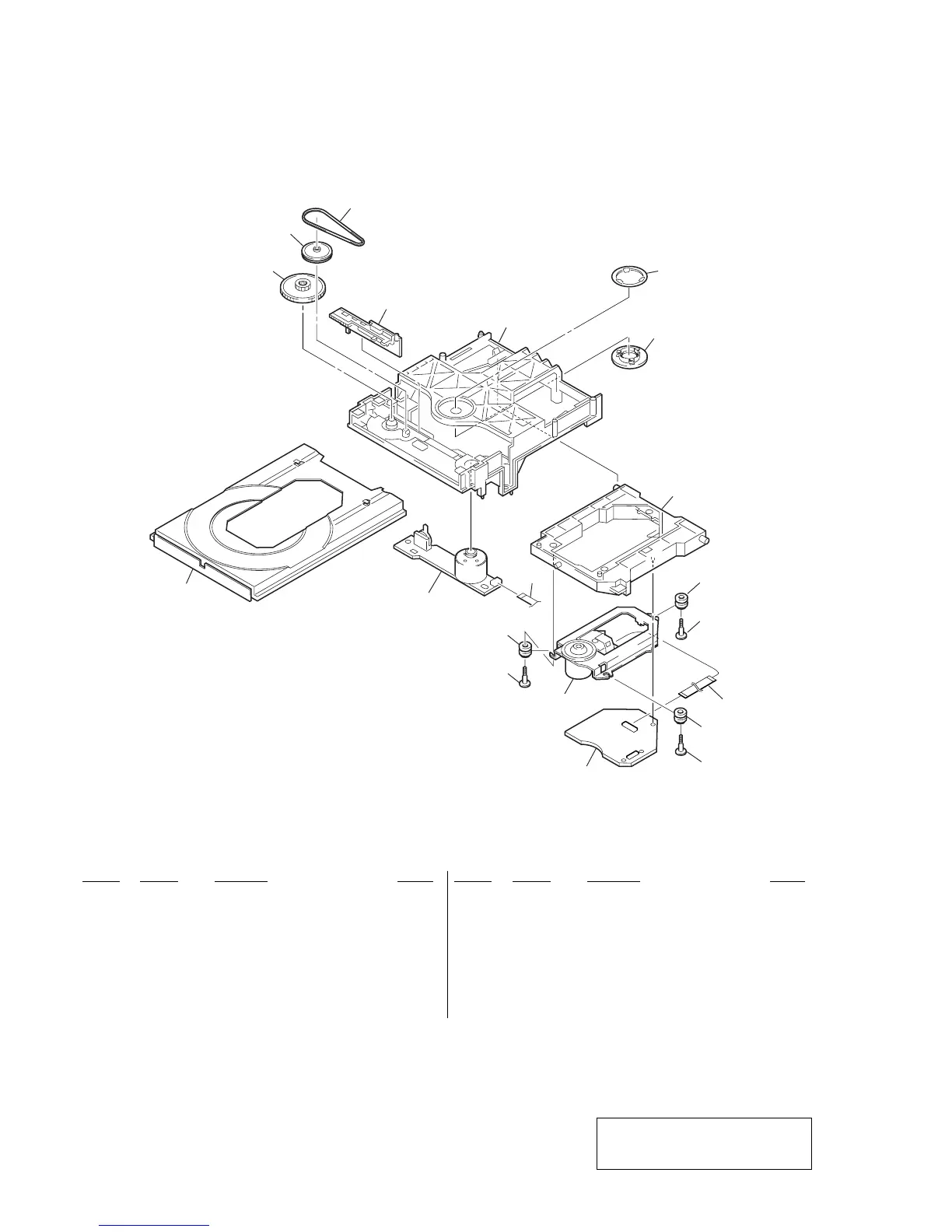

6-4. DVD Mechanism Section (CDM77A-DVBU20)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
401
402
403
404
405
not supplied
416
409
410
411
410
410
412
413
406
408
407
414
414
414
401 4-243-742-01 TRAY (AU)
402 3-080-484-01 DRIVING GRAR
403 3-080-485-01 PULLEY GEAR
404 3-080-478-01 BELT
405 3-080-477-01 CHUCK CAM
406 4-243-741-01 BASE (AU), LOADING
407 3-080-476-01 YOKE
408 3-080-483-01 CHUCK PLATE
409 4-243-743-01 HOLDER (DBU1)
410 3-053-847-41 INSULATOR
411 1-689-264-11 PWB, FLEXIBLE (24 CORE)
0 412 1-477-263-11 PICKUP UNIT (TDP022W)
413 A-4728-690-A RF BOARD, COMPLETE
414 4-981-923-01 SCREW (M), STEP
416 1-773-983-11 WIRE (FLAT TYPE)(5 CORE)
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
Ver 1.1 2003.07
