Sony HCD-SA30 - Printed Wiring Board - UCOM Section (SIDE B)

4444

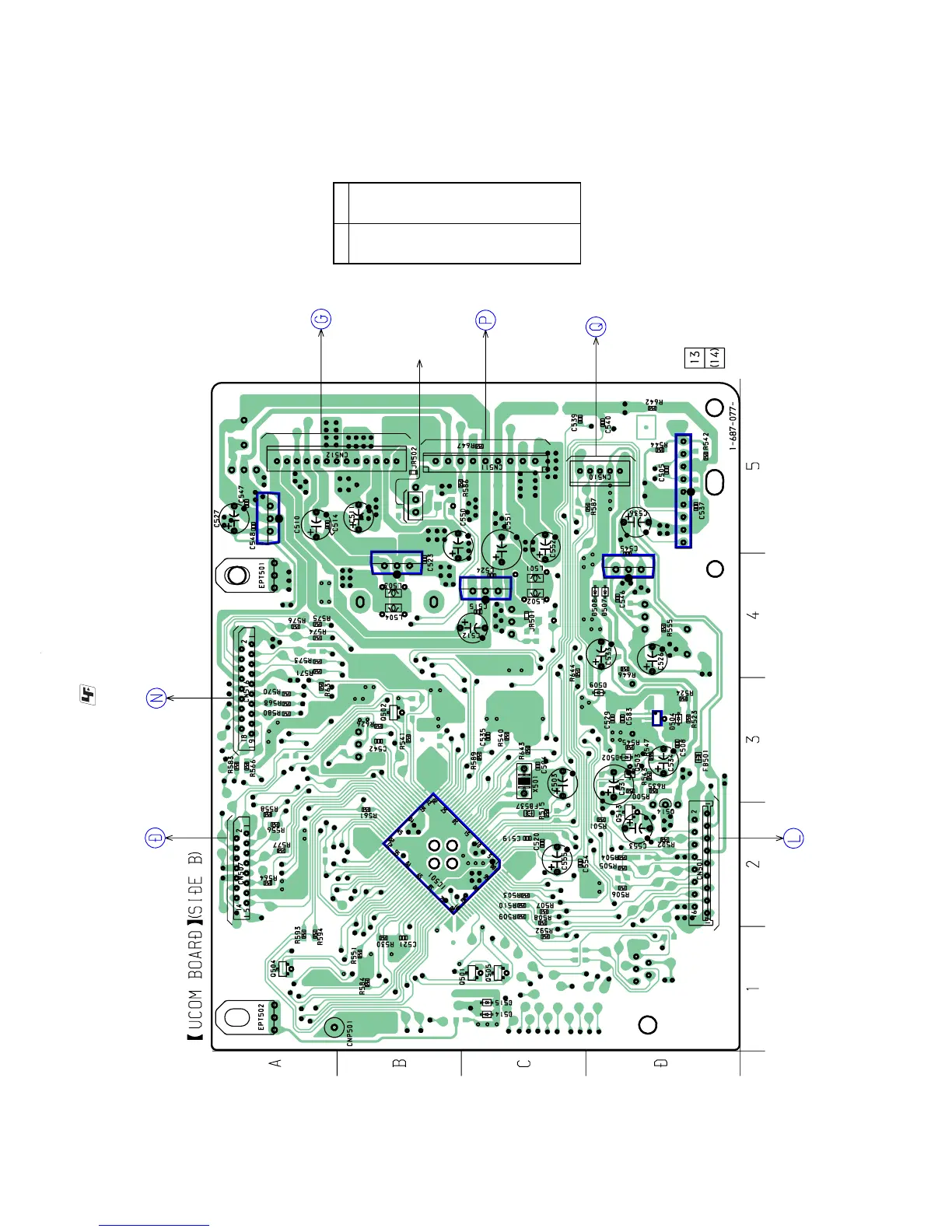

HCD-SA30 5-18. Printed Wiring Board — UCOM Section (SIDE B) — • See page 23 for Circuit Boards Location.
• : Uses unleaded solder.
IC501
IC507
IC504
IC505
IC506
IC502
IC580
TO
AMP BOARD
CN303
(Page 47)
TO
I/O BOARD
CN101
(Page 50)
TO
DMB03 BOARD
CN102
(Page 31)
CN503
NOT USED
TO
POWER
BOARD
CNP905
(Page 59)
TO
POWER
BOARD
CNP906
(Page 59)
TO
FRONT BOARD
CN801
(Page 57)
E
E
E
E E
1 2 3
1
91
1 5
1 9
13
1
123
2 3
1 2 3
1
• Semiconductor
Location
Ref. No. Location
D502 D-3 D504 D-3 D507 D-4 D508 D-4 D509 D-3 D514 C-1 D515 C-1 IC501 B-2 IC502 D-5 IC504 B-4 IC505 C-4 IC506 D-4 IC507 A-5 IC580 D-3 Q501 C-1 Q502 B-3 Q503 D-3 Q504 A-1 Q505 C-1 Q513 D-2 Q514 D-2
