Sony HCD-SA30 - Printed Wiring Board - DMB Section (SIDE B)

3232

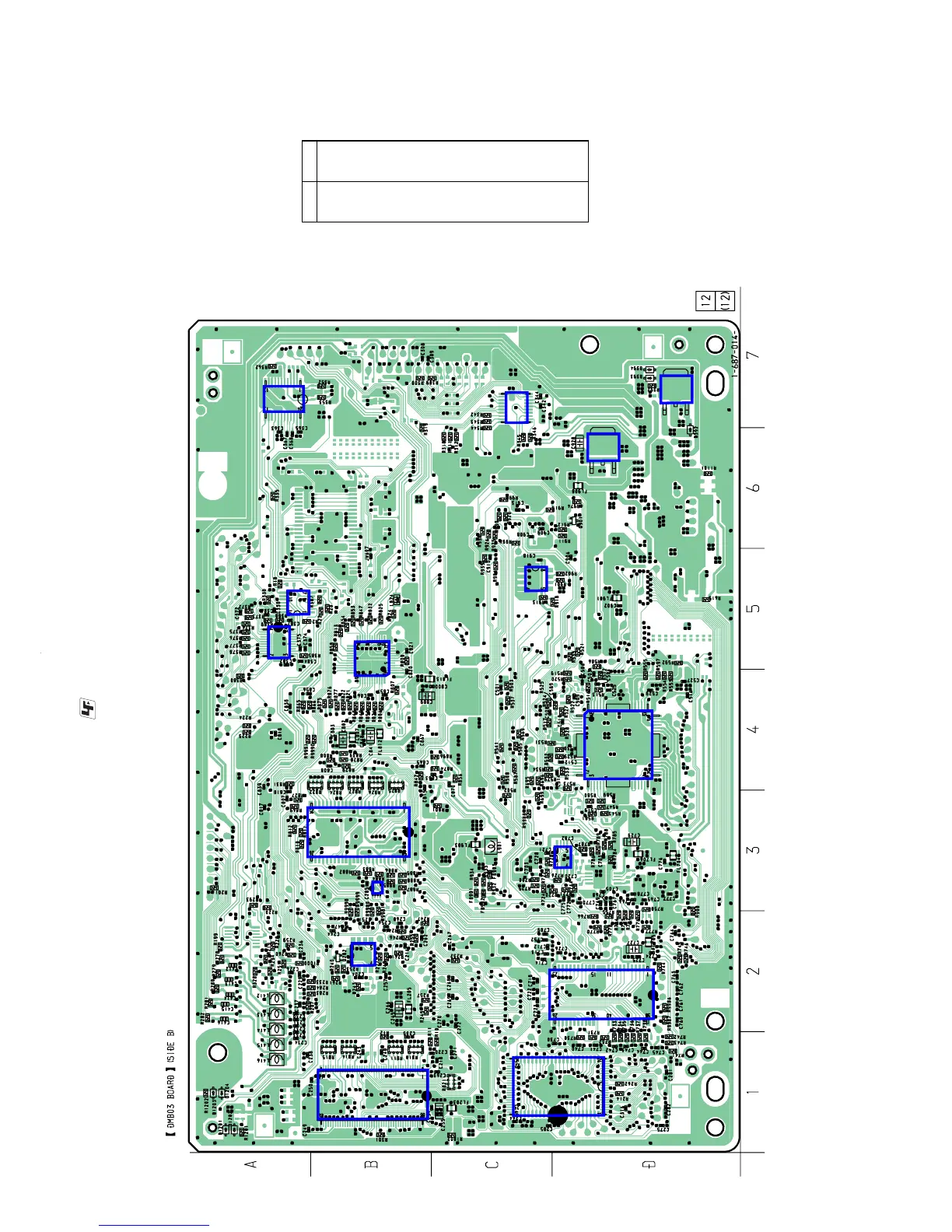

HCD-SA30 5-6. Printed Wiring Board — DMB Section (SIDE B) — • See page 23 for Circuit Boards Location.
• : Uses unleaded solder.
1
1 2 3
1 2 3
10
20 11
IC392
IC907
IC332
IC903
IC333
IC372
IC352
IC204
IC257
IC501
IC802
IC703
IC706
IC206
IC203
IC808
Ref. No. Location
D392 D-6 D393 D-7 D394 D-7 D1201 A-1 D1202 A-1 D1203 A-1 D1204 A-1 IC203 B-1 IC204 B-2 IC206 D-1 IC257 B-3 IC332 C-7 IC333 A-5 IC352 A-7 IC372 A-5 IC392 D-7 IC501 D-4 IC703 D-3 IC706 D-2 IC802 B-5 IC808 B-3 IC903 C-5 IC907 D-6 Q202 B-2 Q901 D-6
• Semiconductor
Location
