Sony HCD-SA30 - DVD Mechanism Removal

12
HCD-SA30

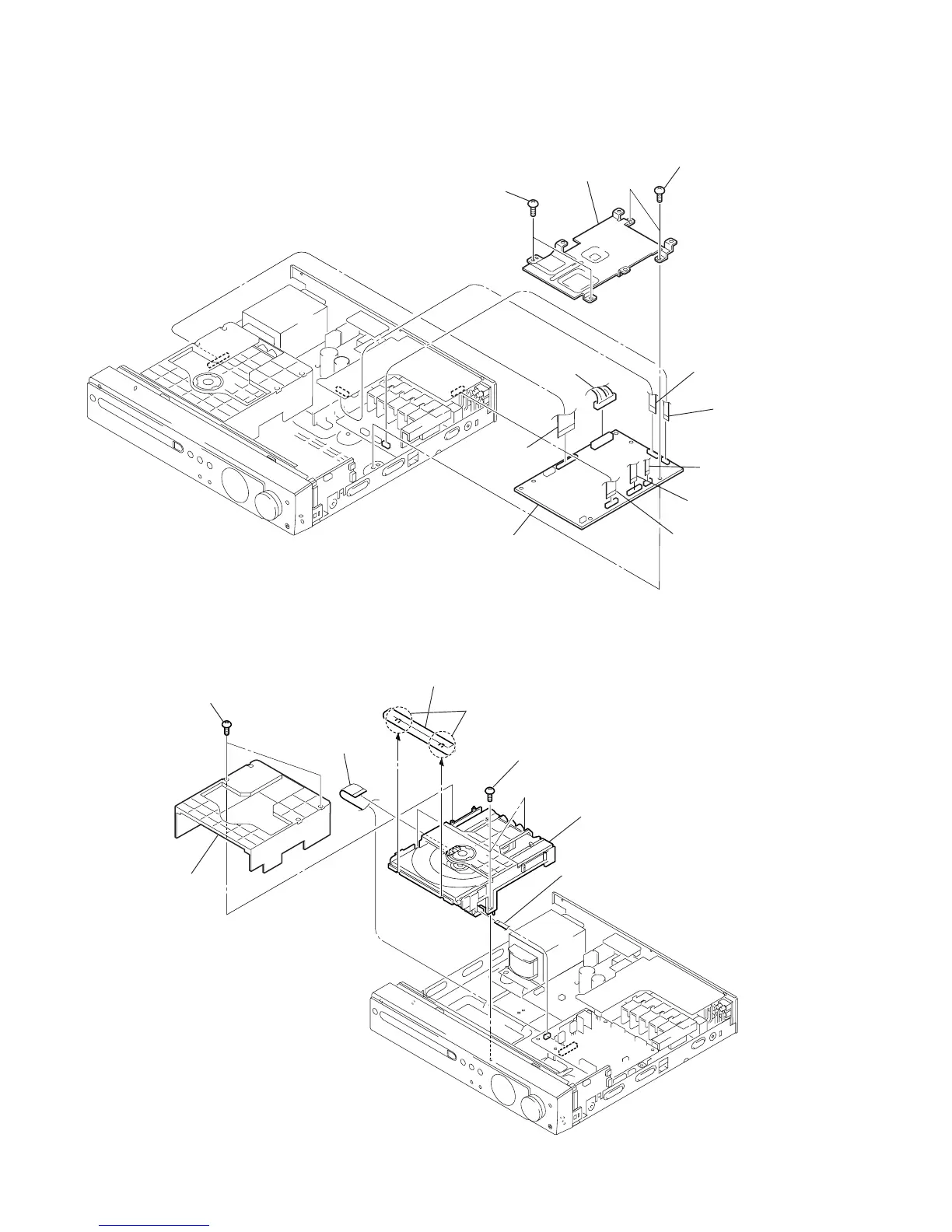

3-4. DMB03 Board
3-5. DVD Mechanism (CDM77A-DVBU20)
5 connector
(CN102)
6 w ire (flat type)
13p (CN107)
7 w ire (flat type)
9p (CN106)
8 w ire (flat type)
5p (CN101)
9 w ire (flat type)
11p (CN103)
q; w ire (flat type)
15p (CN105)
4 w ire (flat type)
29p (CN501)
qa DMB03 board
1 two screws
(+BVTP3
× 8)
2 two screws
(+BVTP3
× 12)
3 heat sink (DMB)
6 two clows
7 CD lid
4 w ire (flat type)
5p (CN001)
5 w ire (flat type)
29p (CN002)
3 three screws
(+BV)
8 DVD mechanism
(CDM77A-DVBU20)
1 two screws
(+BVTP2.6
× 8)
2 cover
