HCD-SA30

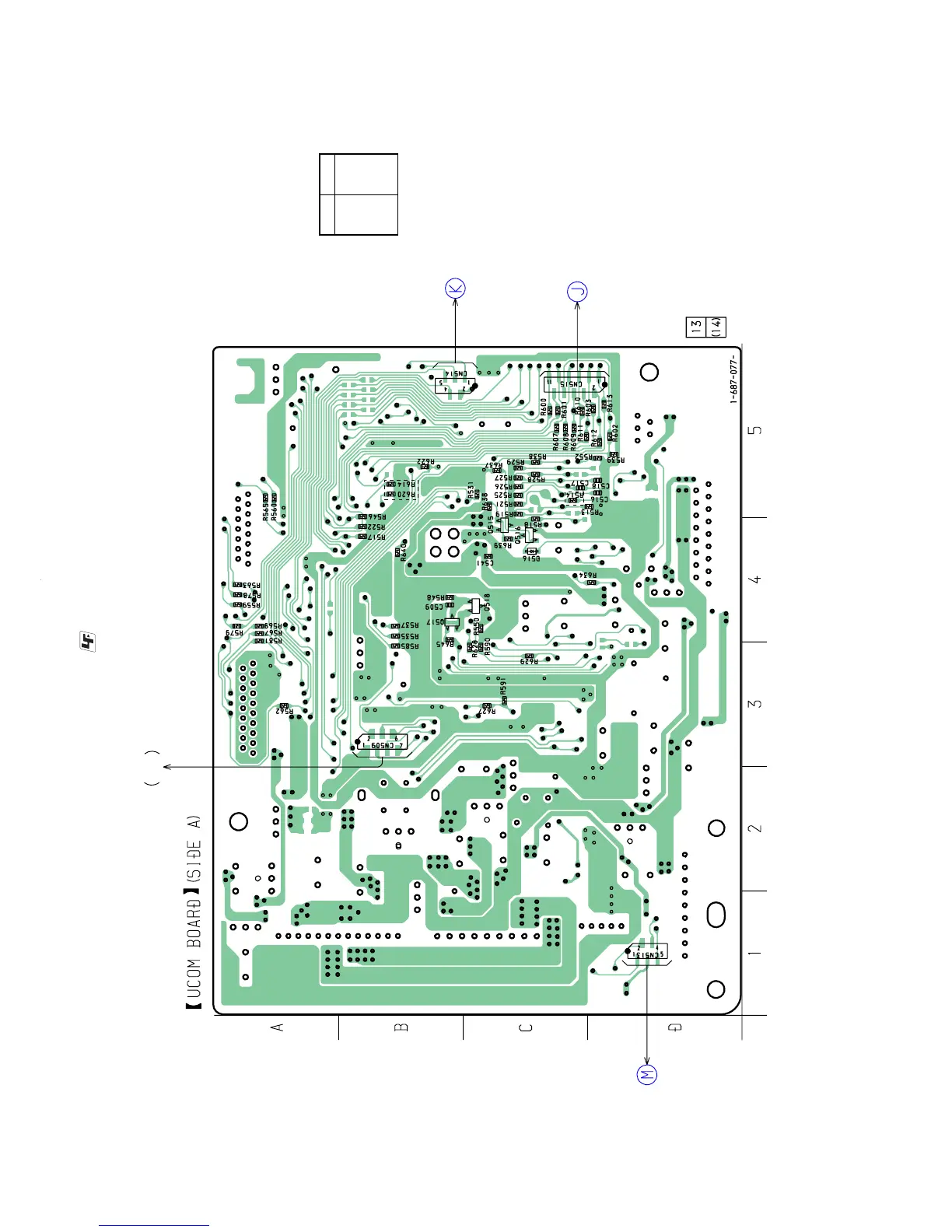

5-17. Printed Wiring Board — UCOM Section (SIDE A) — • See page 23 for Circuit Boards Location.
• : Uses unleaded solder.
EXCEPT AEP,UK,RU
EXCEPT AEP,UK
TO
MS-128 BOARD
CN001
(Page 55)
FOR
CHECK
TO
DMB03 BOARD
CN101
(Page 31)
TO
DMB03 BOARD
CN103
(Page 31)
E
E
E
E
• Semiconductor
Location
Ref. No. Location
D516 C-4 Q515 C-4 Q516 C-4 Q517 B-4 Q518 C-4
