Sony HCD-SHAKE10 - Panel and Section Disassembly; Flexible Flat Cable Installation Notes

HCD-SHAKE10/SHAKE30/HCDSHAKEX10/HCDSHAKEX30/HCDSHAKEX70
11
Note: Follow the disassembly procedure in the numerical order given.

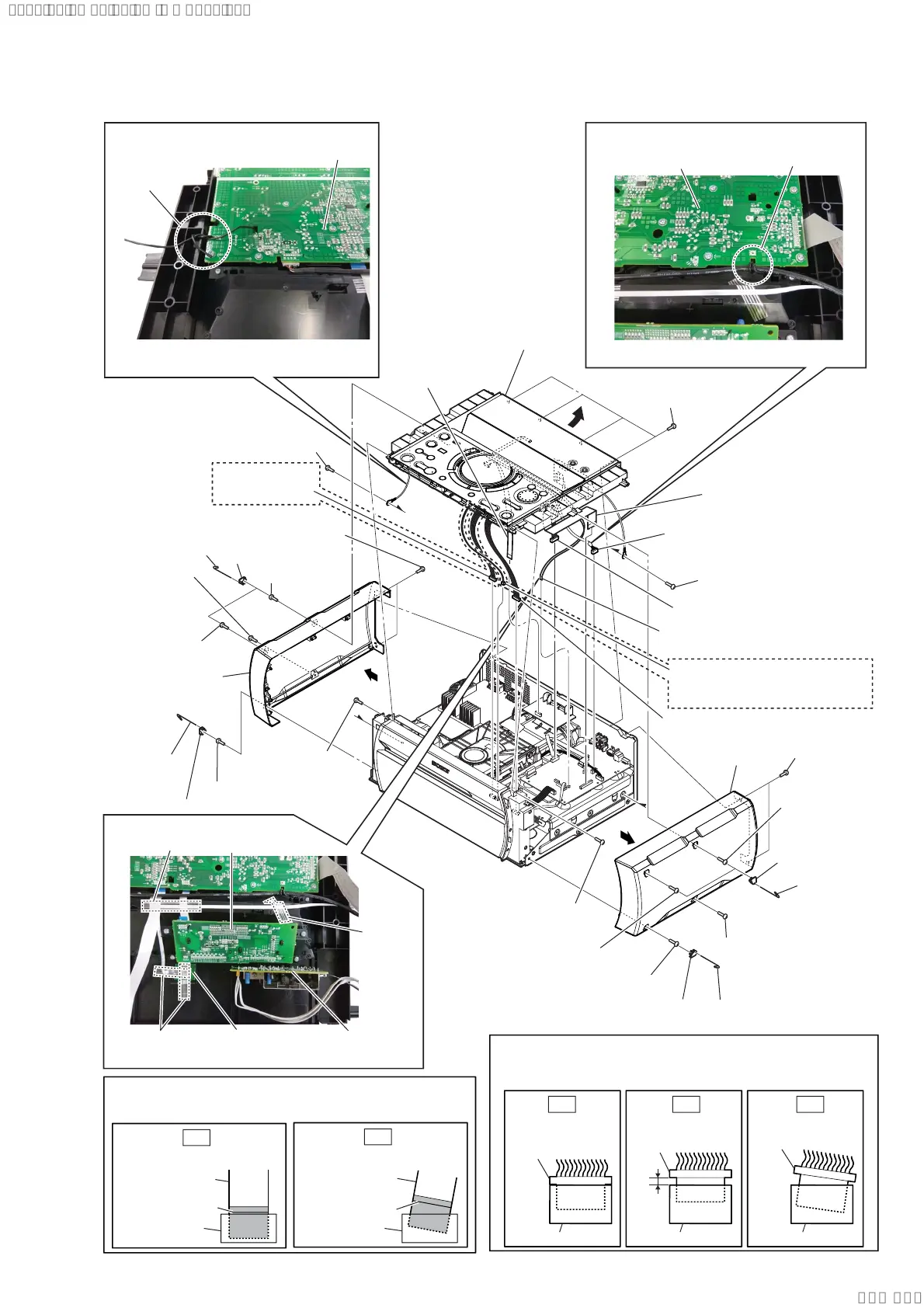

2-2. PANEL, SIDE (L), PANEL, SIDE (R), PANEL, TOP ASSY
5 two screws
(+BVTP 3 u 8)
qs two screws
(+BVTP 3 u 8)
wk top panel section
qg four screws
(+BVTP 3 u 8)
w; CN005 (9P)
(HCDSHAKEX70)
(SHAKE10/SHAKE30/
HCDSHAKEX10/HCDSHAKEX30)
ql CN007 (3P)
wa CN003 (11P)
qk one screw
(+BVTP 3 u 8)
qh one screw
(+BVTP 3 u 8)
qj one screw
(+BVTP 3 u 8)
qd
6
wd flexible flat cable
(6 core) (CN105)
wf CN601 (7P)
wg CN451 (5P)
ws flexible flat cable
(25 core) (CN122)
wh flexible flat cable
(11 core) (CN6003)
1 Insert the
clip etc.
8 Insert the clip etc.
8 Insert the
clip etc.
2 cover screw A
9 cover screw A
0 cover screw B
7 panel, side (L)
qf panel, side (R)
4 one tapping
screw
4 one tapping
screw
4 one tapping
screw
4 one tapping screw
qa one tapping screw
qa one tapping screw
qa one tapping screw
qa one tapping
screw
3 cover screw B
1 Insert the
clip etc.
qh one screw
(+BVTP 3 u 8)
A
B
B
A
TOP PANEL board
TOP PANEL board
FL board
MIC board
filament tape
filament
tape
filament tape
RC-S730 (WW)
pin, lead
pin, lead
:LUHVHWWLQJ
:LUHVHWWLQJ
–7RSSDQHOERWWRPYLHZ–
:LUHVHWWLQJ
–7RSSDQHOERWWRPYLHZ–
–7RSSDQHOERWWRPYLHZ–
wj
Note 2: When you install the connector, please install them correctly.
There is a possibility that this machine damages when not
correctly installing it.
Insert is shallow
Insert is straight
to the interior.
connector
Insert is incline
connector
connector
connector
connector connector
Note 1: When installing the flexible flat cable, ensure that
the colored line is not slanted after insertion.
colored line
colored line
Insert is straight to the interior. Insert is incline
flexible flat cable flexible flat cable
connectorconnector
OK
NG
OK NG NG
Ver. 1.1
