Sony HCD-SHAKE10 - 2-13. Service, Optical Device (7 G), Flexible Flat Cable

HCD-SHAKE10/SHAKE30/HCDSHAKEX10/HCDSHAKEX30/HCDSHAKEX70
20
8 four insulator screws
7 connector
qa insulator
6 belt
3 Insert the thin
wire (clip etc.).
5 tray
qs service, optical
device (7G)
qa insulator
qa insulator
qh
qk flexible flat cable
(24 core)
qf filament tape
1 six claws
4
9
0
2 chuck holder assy (T)
qg flexible flat cable
(5 core)
– Bottom view –
loading assy (T)
qd base, lo assy
qj holder, FFC

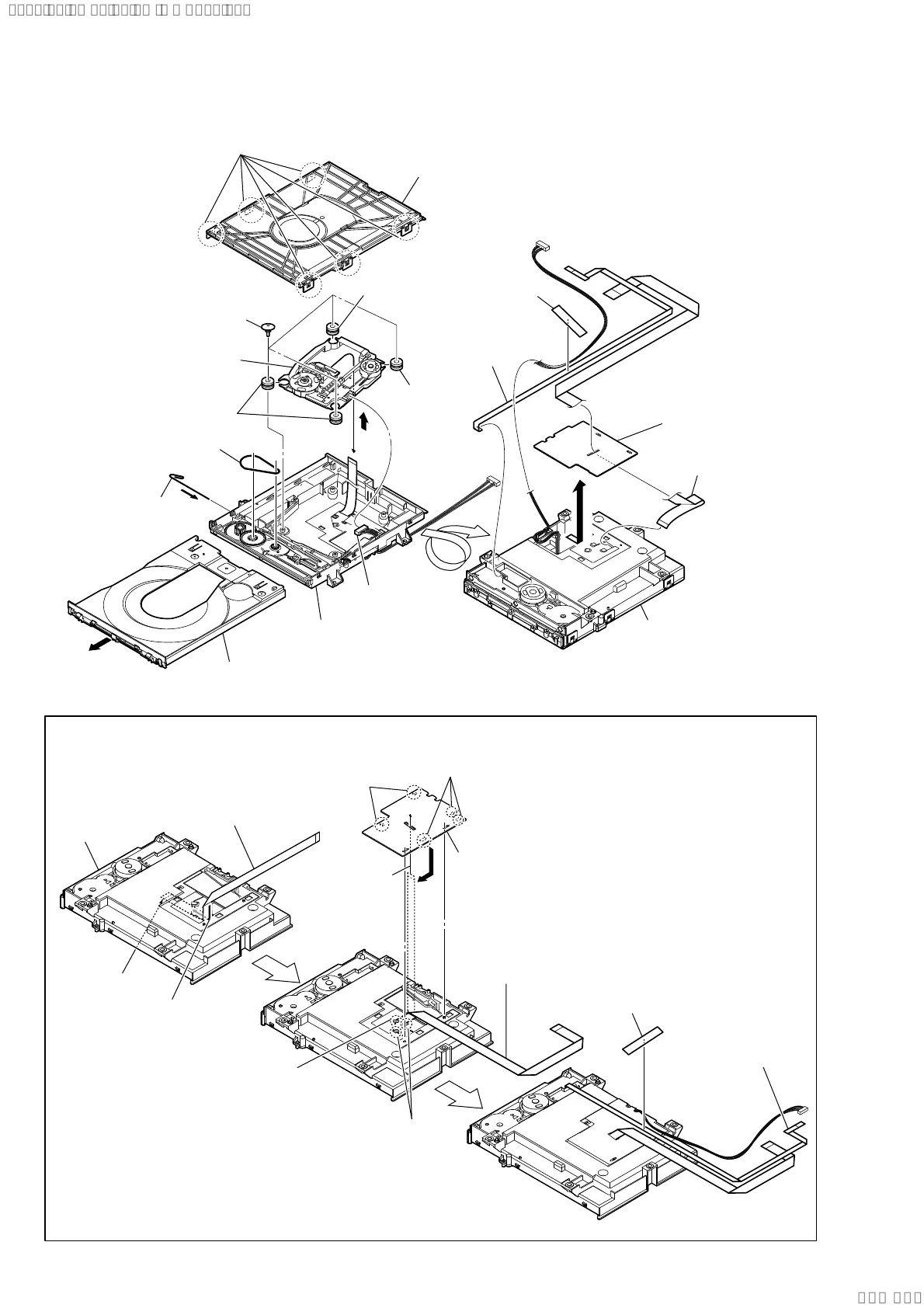

2-13. SERVICE, OPTICAL DEVICE (7G), FLEXIBLE FLAT CABLE
Under the guide
Under the guide
(Fold area)
,QVWDOODWLRQRIIOH[LEOHIODWFDEOHFRUHDQGIOH[LEOHIODWFDEOHFRUH
Note:
This illustration sees the loading assy (T) from bottom side.
1 flexible flat cable
(24 core)
2 Through the hole
3 Through the hole
4
terminal face
loading assy (T)
7 flexible flat cable
(24 core)
6 holder, FFC
5 three claws
5 two claws
8 flexible flat cable
(5 core)
9 filament tape
